Schmitt Premium cables are manufactured true to the original in Austria: Absolutely accurate fit and handmade in the highest quality. Fast machine manufacturing processes to save costs are deliberately not used here.
The inner cables are made from special cable steel (and not from the today mostly used brittle stainless steel). Therefore, the Schmitt Premium cables do not break as quickly as those from mass production.
Schmitt cables for classic vehicles are manufactured in the same design as it was standard at the time of production of the vehicles. Thus, for all fans of classic vehicles, a cable true to the original is used here. Since an inner cable manufactured in the old way tends to rust, it is lubricated with an Interflon high-performance fluid grease for life.

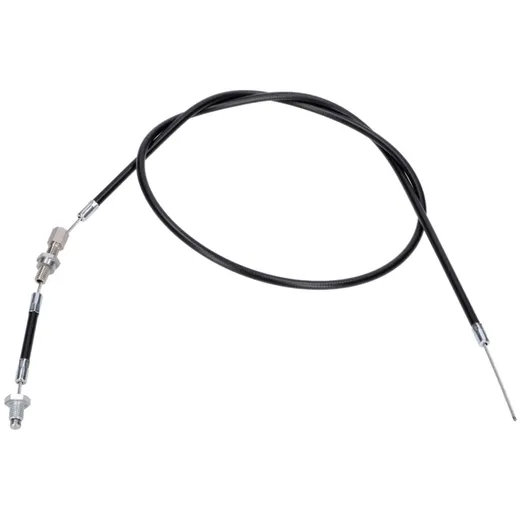

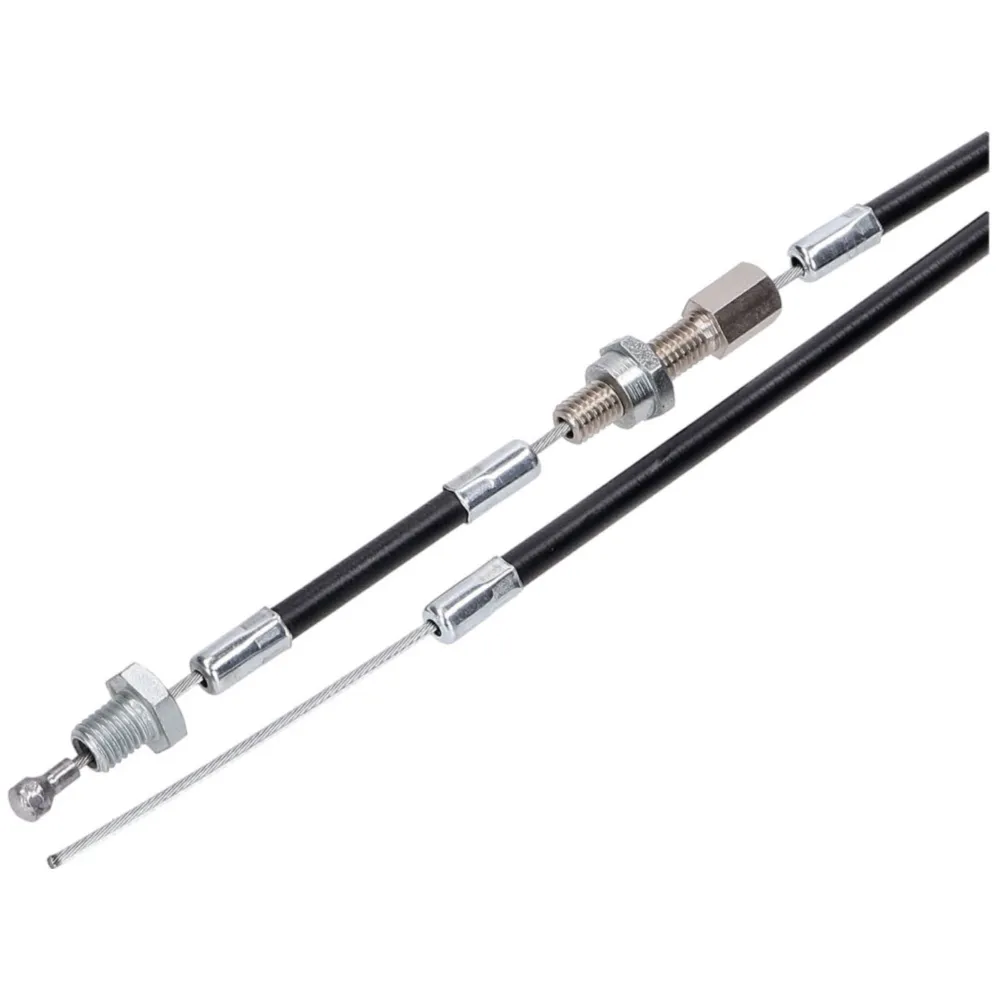

Fits Puch Maxi L2, S2, X30 with ZA50 engine. OEM number for comparison purposes only: 910.4.13.001.0
Dimensions:
Overall length: 99.5cm Stranded wire diameter: 1.5mm
Sheath length (incl. caps), long type: 80cm Sheath length (incl. caps), short type: 5.25cm
End cap length: 12mm End cap diameter: 6mm Sleeve diameter: 5mm
Graded nipple diameter, ball: 5mm head, 3mm stem Graded nipple length, ball: 9.4mm
Threaded bolt length incl. hexagonal adjusting screw, open type: 34mm Thread length: 22mm Thread diameter: 6mm Hexagonal set screw head, open type: 8mm / 9mm Graded nut height: 7mm Head diameter: 11mm / 12.5mm, Stem diameter: 10mm
Hexagonal set screw length, closed type: 11.5mm Thread length: 7mm Thread diameter: 7mm Head: M7 (11mm / 12.5mm)
The inner cables are made from special cable steel (and not from the today mostly used brittle stainless steel). Therefore, the Schmitt Premium cables do not break as quickly as those from mass production.
Schmitt cables for classic vehicles are manufactured in the same design as it was standard at the time of production of the vehicles. Thus, for all fans of classic vehicles, a cable true to the original is used here. Since an inner cable manufactured in the old way tends to rust, it is lubricated with an Interflon high-performance fluid grease for life.
Fits Puch Maxi L2, S2, X30 with ZA50 engine. OEM number for comparison purposes only: 910.4.13.001.0
