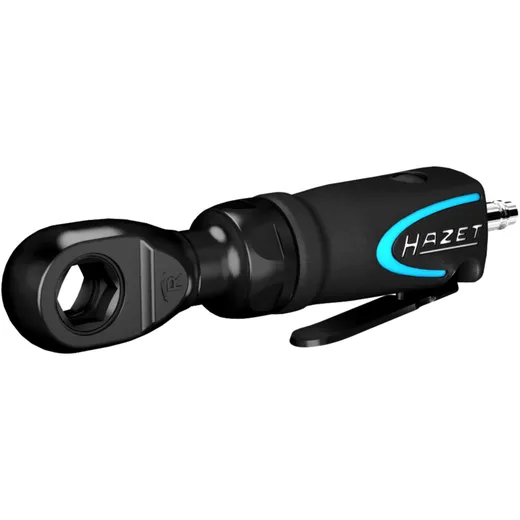

Hazet 9023M-1 Mini Multi Ratchet Screwdriver

Hazet 9023M-1 Mini Multi Ratchet Screwdriver

Mini multifunction ratchet screwdriver

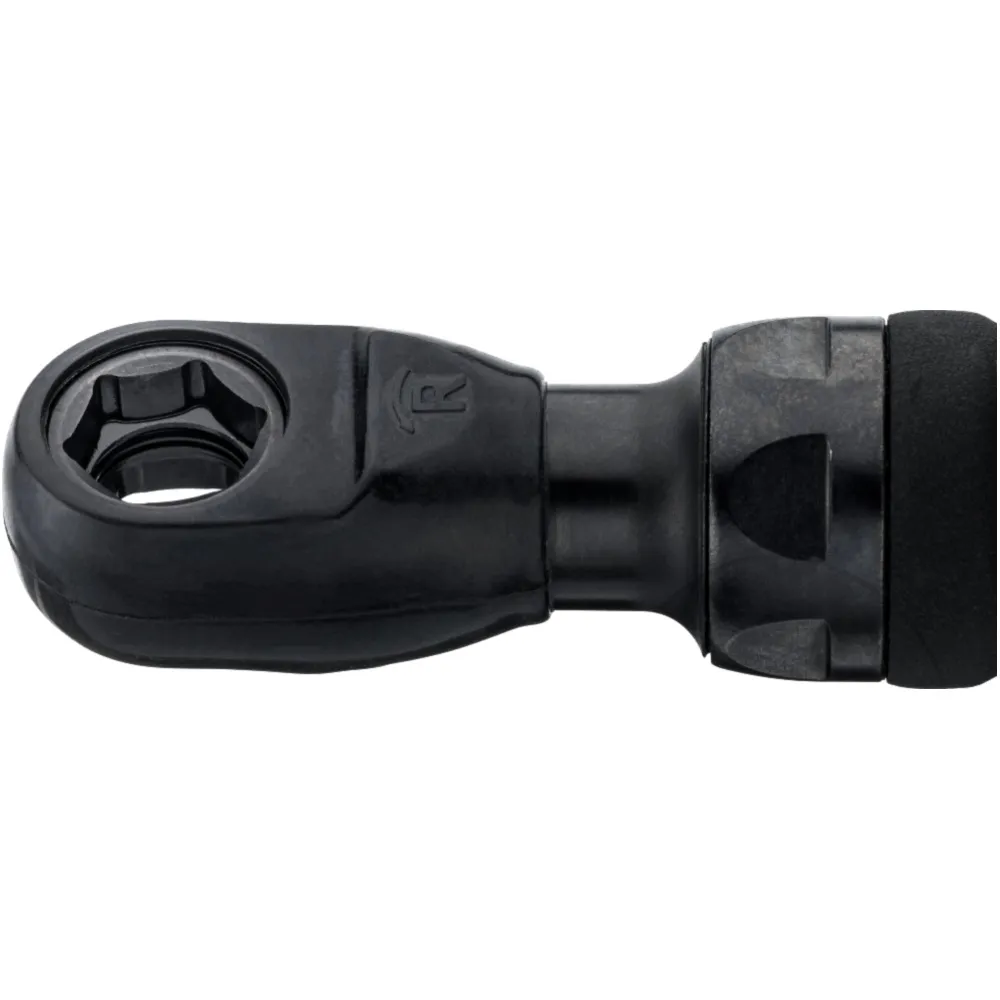

• With open 17 mm hexagon socket also allows machining of extra long threads.

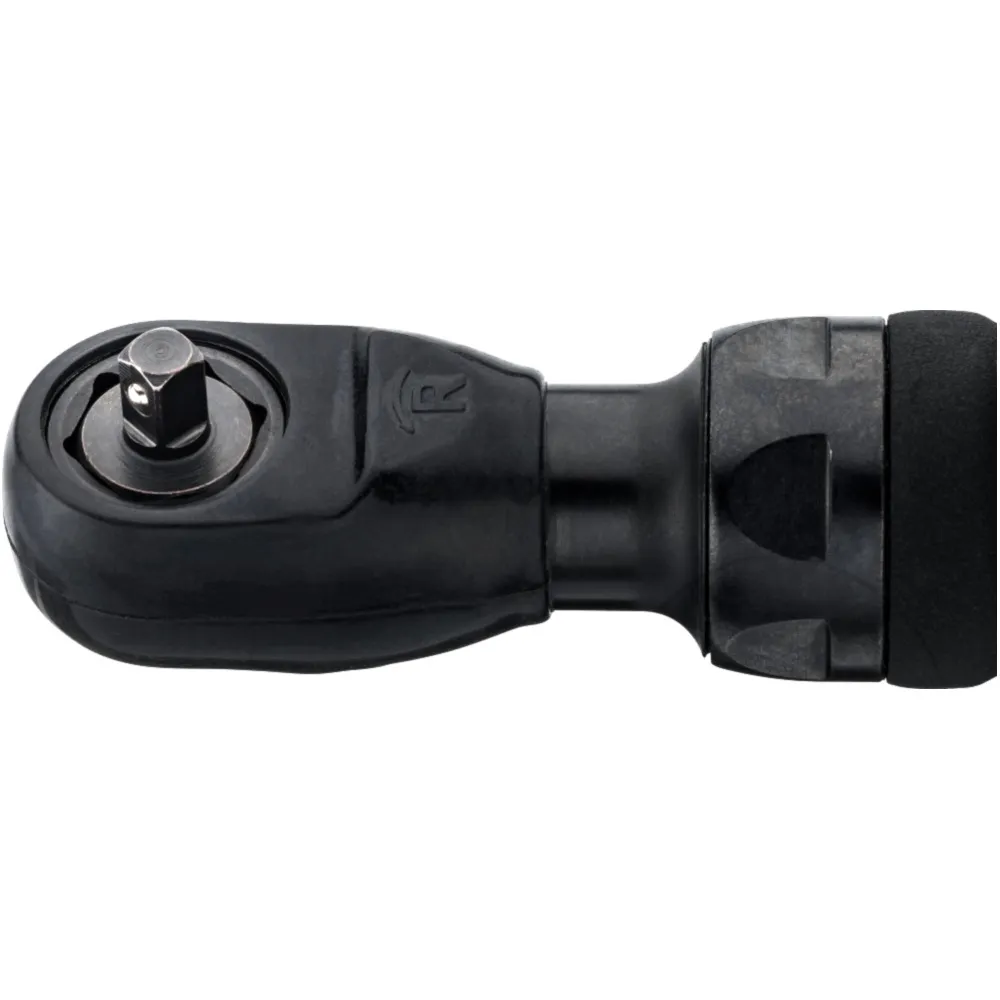

• By replacing the ratchet heads for square 6.3 mm (1/4 inch), square 10 mm (3/8 inch), hexagon 6.3 (1/4 inch) can be used.
• Short design
• vibration
• Exhaust air duct through the handle
• For manual tightening with torques 70 Nm

Content 4 tools: - Through ratchet - square insert 6.3 mm (1/4 inch) - square insert 10 mm (3/8 inch) - Hex bit bit 6.3 mm (1/4 inch)

Air inlet connection: internal thread 12,91 mm (1/4 ") Coupling plug: nominal diameter 7.2 (inclusive) Hose diameter (recommended): 10 mm Operating pressure (bar): 6.3 Sound power level (at operating pressure): 93.8 db (A) Lp W Vibration acceleration: 3.20 m / s2 Right / left rotation: single-stage (right / left) Cold-insulating handle Downforce: 1/4 inch square, 3/8 inch square, 1/4 inch hexagon Dimensions: 159 mm Net weight (kg): 0.48 kg Tightening torque maximum: 54 Nm Sound pressure level (at operating pressure): 82.8 dB (A) Lp A Revolutions / minute: 400 Air requirement [l / min]: 84 l / min (1.4 l / sec) "Mini" pneumatic program

Innovative 5-lamella concept for even more power than conventional drives High reliability and continuous operation Small and handy Safety release lever

Manufacturer Nr.: Hazet 9023M-1

EAN: 4000896227112
