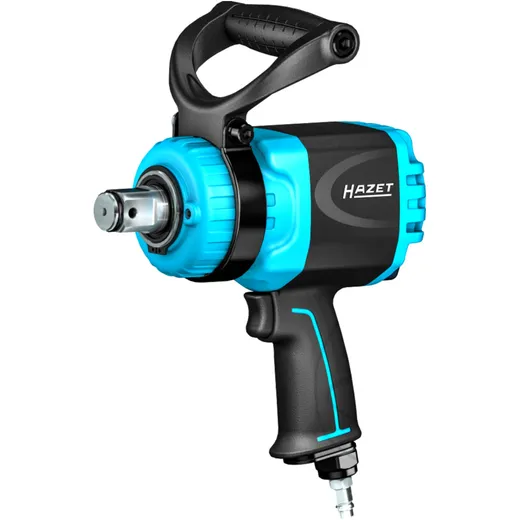

HAZET Impact Wrench 1 9014 TT

HAZET Impact Wrench 1 9014 TT

HAZET Twin Turbo impact wrench

• High-performance double hammer mechanism
• Easy handling
• Short, compact design
• One-hand operation for left and right-handers
• Removable handle, adjustable 360 °
• Connection socket for whisper hose
• HAZET Twin Turbo technology - high torques with a compact design
• Innovative 8-blade air motor with 25% higher impact power ensures maximum torque
• Exhaust air is guided downwards through the handle
• Cold-insulating handle
• Low vibration

Application:

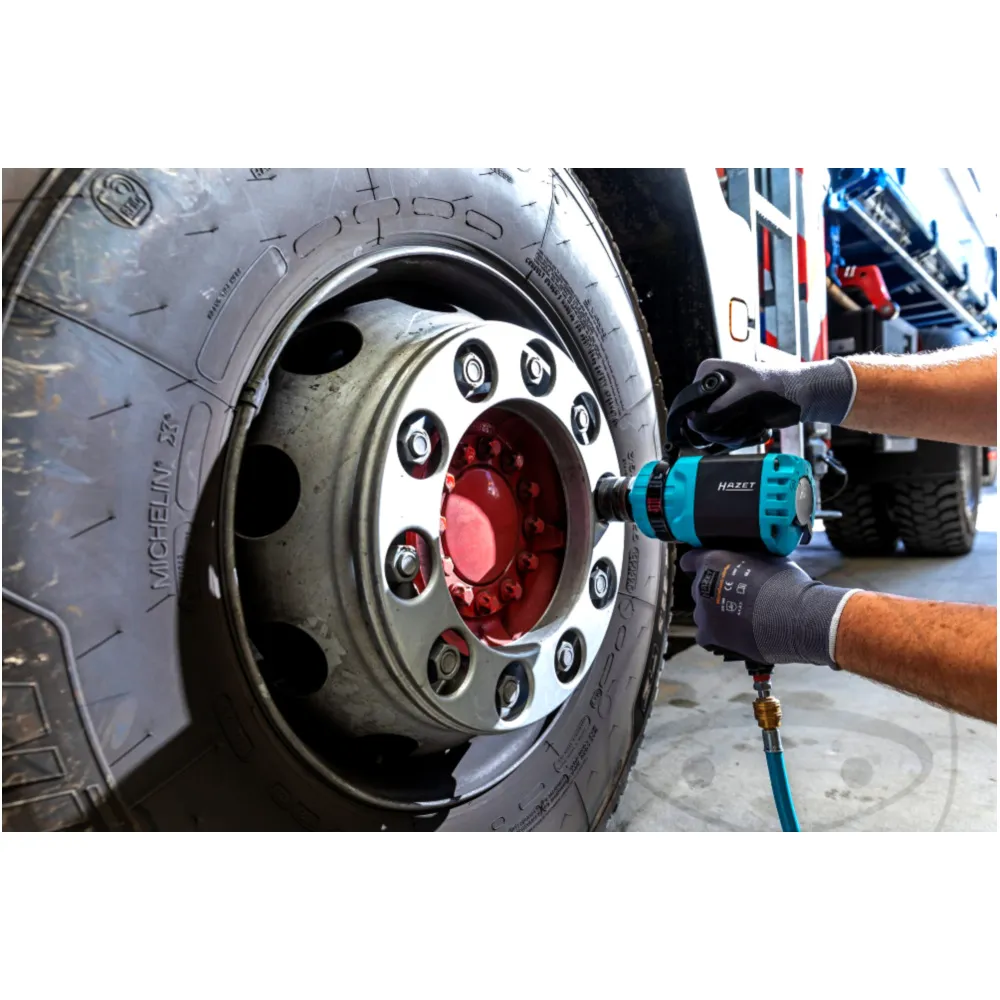

• Long service life and high efficiency in industrial and automotive applications

Technical specifications:

• Loosening torque maximum: 4100 Nm
• Maximum tightening torque: 2170 Nm
• Recommended torque: 1898 Nm
• Net weight (kg): 4.6 kg
• Air connection inlet: internal thread 16.41 mm (3/8 ″)
• Coupling plug: nominal width 7.2 (included)
• Hose diameter (recommended): 13 mm
• Operating pressure (bar): 6.3
• Sound power level (at operating pressure): 112.9 db (A) Lp W
• Vibration acceleration: 19.11 m / s2
• Loosening torque (max) determined with screw size M: 32
• Right / left rotation: two-stage (right-hand rotation), single-stage (left-hand rotation)
• Output: square 25 mm (1 inch)
• Sound pressure level (at operating pressure): 101.9 dB (A) Lp A
• Revolutions / minute: 5200
• Air requirement [l / min]: 235 l / min (3.9 l / sec)

Manufacturer Nr.: Hazet 9014TT

EAN: 4000896234684
