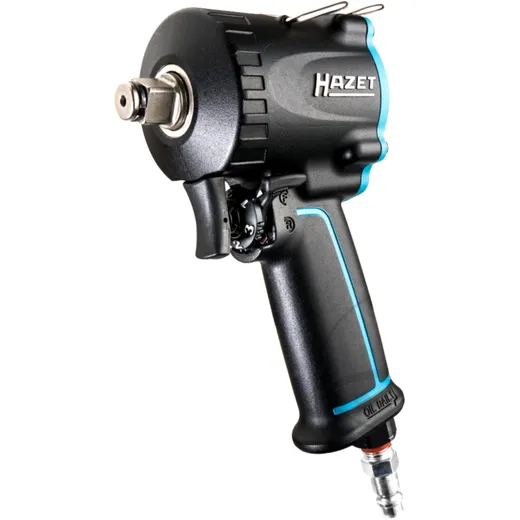

Impact wrench 1/2mini

HAZET Impact Wrench 1/2MINI 9012 M-1

HAZET impact wrench · extra short

• Extra short - only 80 mm
• One-hand operation for right and left-handers
• Exhaust air is guided downwards through the handle
• Cold-insulating handle
• Low vibration
• Easy handling

Application:

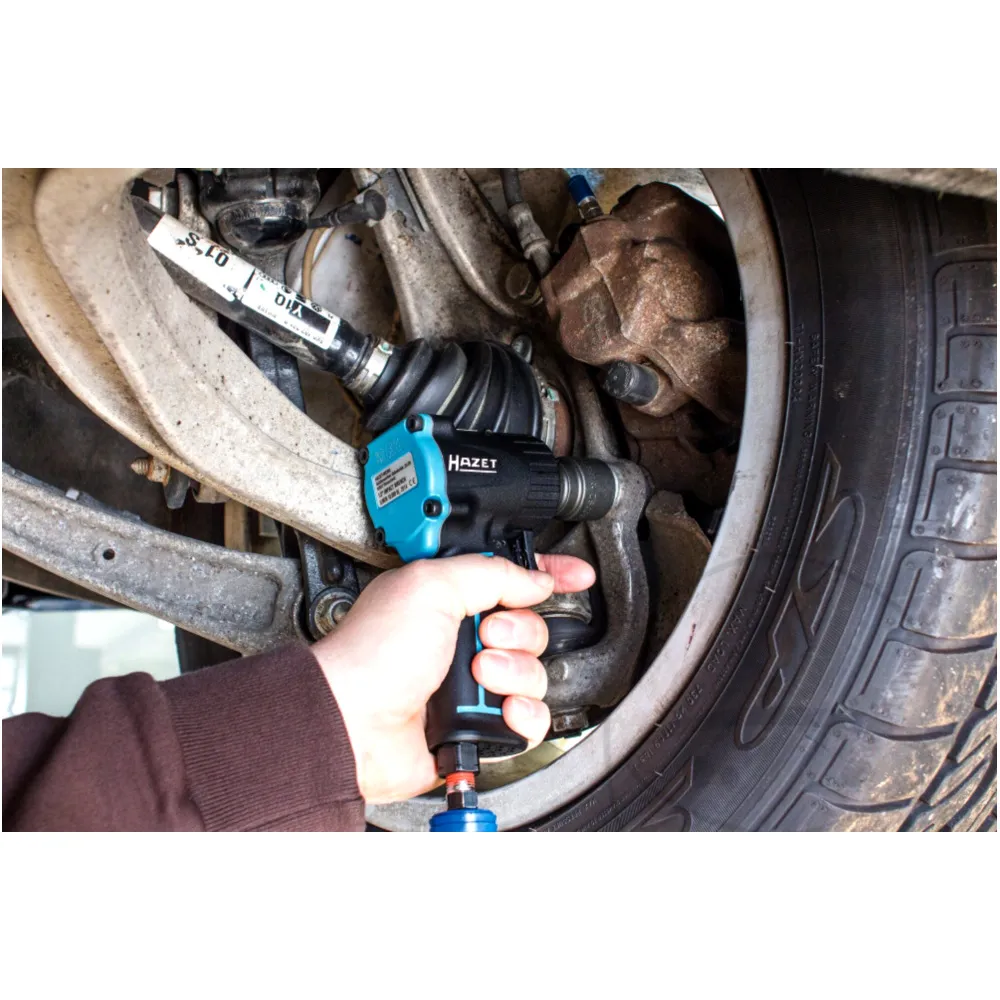

• Ultra compact design optimized for working in confined spaces
• Jumbo hammer mechanism

Technical specifications:

• Loosening torque maximum: 1200 Nm
• Maximum tightening torque: 678 Nm
• Recommended torque: 610 Nm
• Net weight: 1.27 kg
• Dimensions / length: 80 mm
• Air connection inlet: internal thread 12.91 mm (1/4 ″)
• Coupling plug: nominal width 7.2 (included)
• Hose diameter (recommended): 10 mm
• Operating pressure (bar): 6.3
• Sound power level (at operating pressure): 103.2 db (A) Lp W
• Vibration acceleration: 13.49 m / s2
• Loosening torque (max) determined with screw size M: 16
• Forward / reverse: three-stage (clockwise), single-stage (counterclockwise)
• Output: square 12.5 mm (1/2 inch)
• Sound pressure level (at operating pressure): 92.2 dB (A) Lp A
• Revolutions / minute: 8800
• Air requirement [l / min]: 127.4 l / min (2.1 l / sec)

Manufacturer Nr.: Hazet 9012M-1

EAN: 4000896218356
