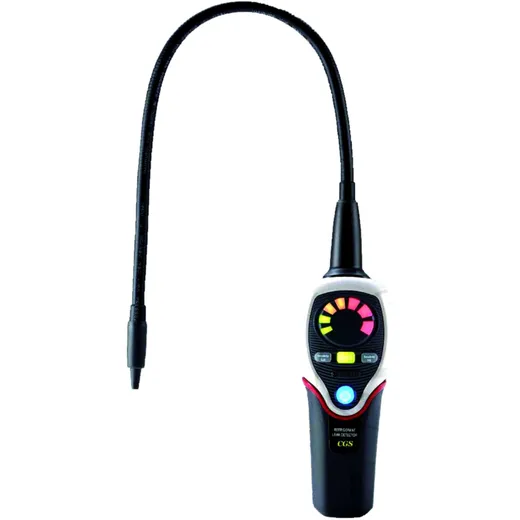

Leak Detector LS4000 for Refrigerants and Forming Gas

CGS Electronic refrigerant leak detector LS4000

• Highly equipped and intelligent halogen leak detector

• State-of-the-art technology thanks to heated semiconductor gas technology and gas circulation pump - therefore, almost no mis-signals

• The handy shaped device with LED indicators is easy to use and extremely reliable and accurate in the display of leaks

• Particularly clearly visible individual LEDs show you the possible and possibly the size of the leaks

• 3. Color display of the set sensitivity

• Easy operation & Operation by pressing the buttons

• Detecting all safety refrigerants such as CFC's R12, R11, R500, R503 and HCFC's R22, R123, R124, R502 and HFC's R134a, R404a, R125, R1234YF etc.

• Detection of forming gas (5% hydrogen and 95% nitrogen)

• For leak detection on almost all ventilation and air conditioning systems, In cars, buses and trucks

• The highly effective suction pump produces a uniform suction current past the sensor, which ensures a particularly accurate detection of leakages

Technical specifications:

Warm-up time of the probe: approx. 45 seconds

Working temperature: 0 - 40 ° C

Accuracy of refrigerant: 3g / year

Accuracy of forming gas: 1 ppm

Battery life: approx. 7 hours

Power supply: 5 VDC (4x AA 1.5V batteries)

Length of flexible probe: 40 cm

Dimensions: 173 x 66 x 56 mm

Weight: approx. 400 g

Manufacturer Nr.: CGS Handschug LS4000

EAN: 4250675624773
