MINI SMOKEY Leak Detector – Comprehensive Leak Detection System

MINI SMOKEY Leak Detector – Comprehensive Leak Detection System

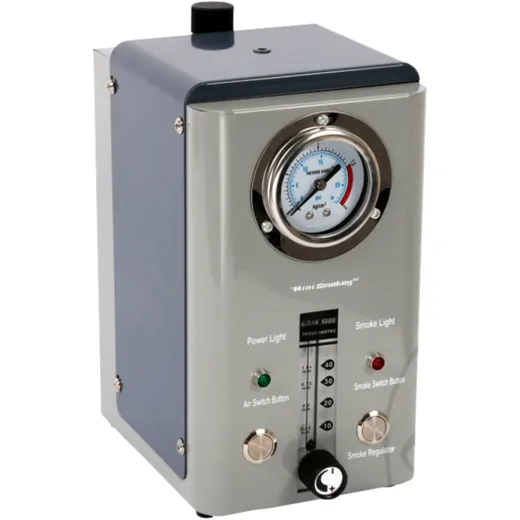

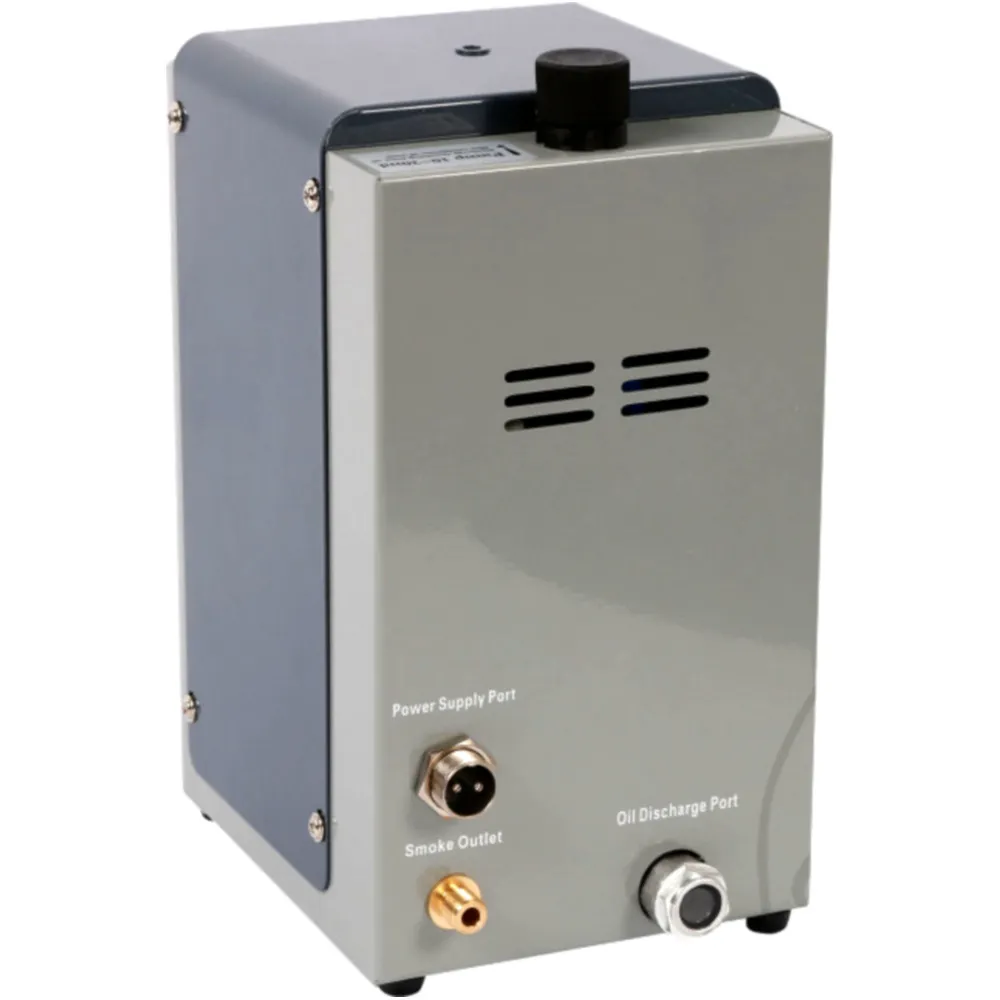

Leak detector MINI SMOKEY

• For localizing leaks in vehicles using smoke
• The mini compressor built into the device uses commercially available baby oil to generate smoke, which is fed into the system to be tested under slight pressure and then exits at the leakage point
• In addition, the tightness of the system to be tested can be checked via the pressure gauge and the flow meter
• I.e. 2 types of diagnosis: smoke test (leak detection) and pressure test (leak test)
• The smoke produced is introduced via the various sealing plugs included in the scope of delivery
• The compact size of the device enables quick and mobile use even in very difficult areas of the vehicle
• The MINI SMOKEY is powered by the 12V connection to the vehicle battery - so it can be used anywhere without compressed air or 230V electricity
• Precise fault diagnosis reduces long searches and the associated repair times
• This gives the workshop competence and confidence among drivers

Areas of application:

• Intake manifold, exhaust system, EGR and EGR valves, tank and fuel system
• Intercooler, turbocharger, carburetor system, throttle valve
• Tank and fuel system, ventilation system, body, windows, doors
• brake booster, vacuum-controlled door systems, diaphragms and oil seals.

Technical data:

Power supply: DC 12V

Test oil filling volume: 30 ml

Nominal outlet pressure: <1.5 bar

Nominal output flow rate: <15 l/min.

Nominal power: 48 W

Weight: 3.7 kg

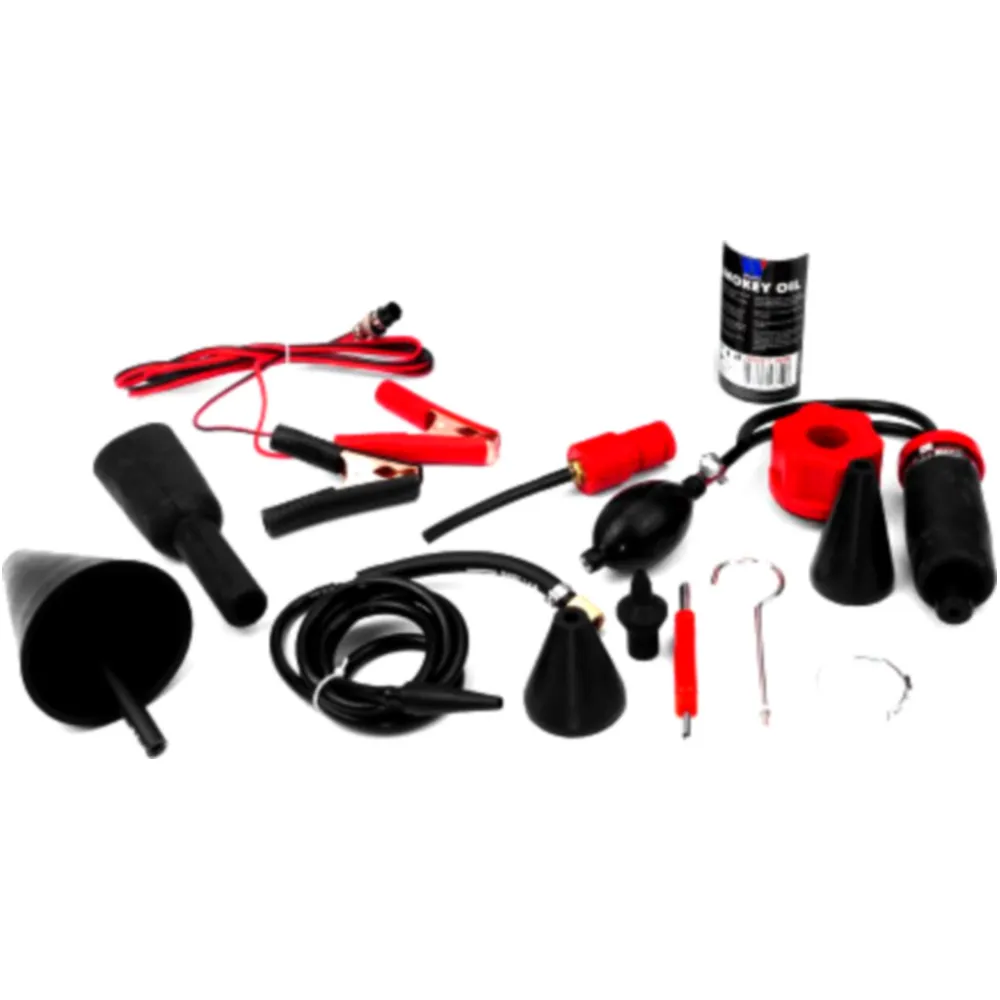

Scope of delivery:

12V battery connection cable

Smoke connection hose

Air bellows

Conical adapter

Connection for crankcase adapter

Sealing plug Cone adapter

Removal tool for valves

Suspension hook

Manufacturer Nr.: HBT 60001010

EAN: 4251694601356
