7-Piece Reamer Set for ABS Sensors

7-Piece Reamer Set for ABS Sensors

Set of reamers for ABS sensor mounting hole, 8 pcs.

• For cleaning the mounting hole for the ABS sensor.
• When removing defective sensors, residues due to corrosion and contamination as well as remnants of the old sensor almost always remain in the locating bore.
• It is often necessary to drill out rusted or torn sensors.
• In some VAG models, drilling is necessary due to the design.
• Before the new sensor can be installed, the mounting hole must be cleaned properly to ensure a precise fit.
• If the mounting hole is contaminated, new sensors are often damaged by improper press-fitting. In addition, faulty measurements can later cause malfunctions in the ABS system.
• Only the exact positioning of the new sensor can ensure correct measured values in the ABS system.
• The fine-toothed, short articulated ratchet offers the user sufficient flexibility to carry out the installation even in confined installation positions.
• The ratchet is preset for clockwise operation only to prevent damage to the reamer in counterclockwise applications.

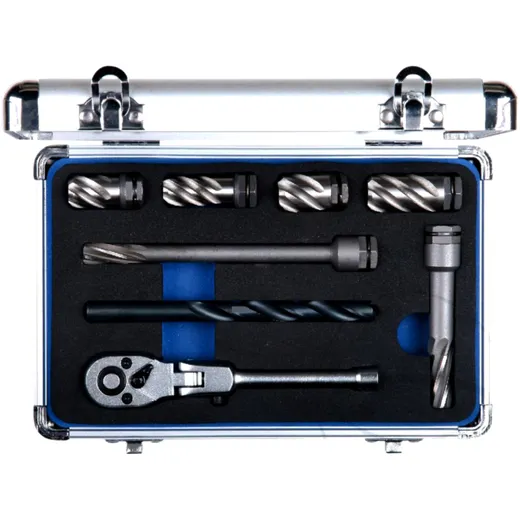

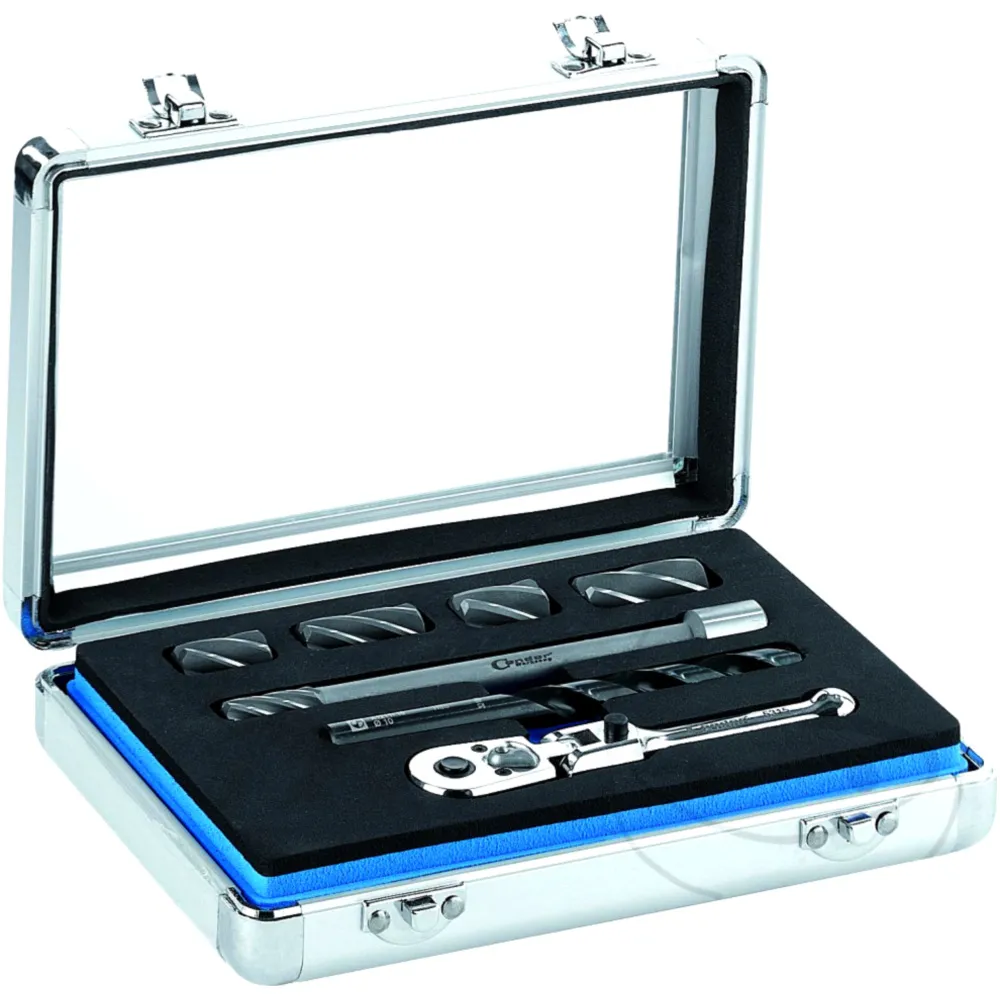

Scope of delivery

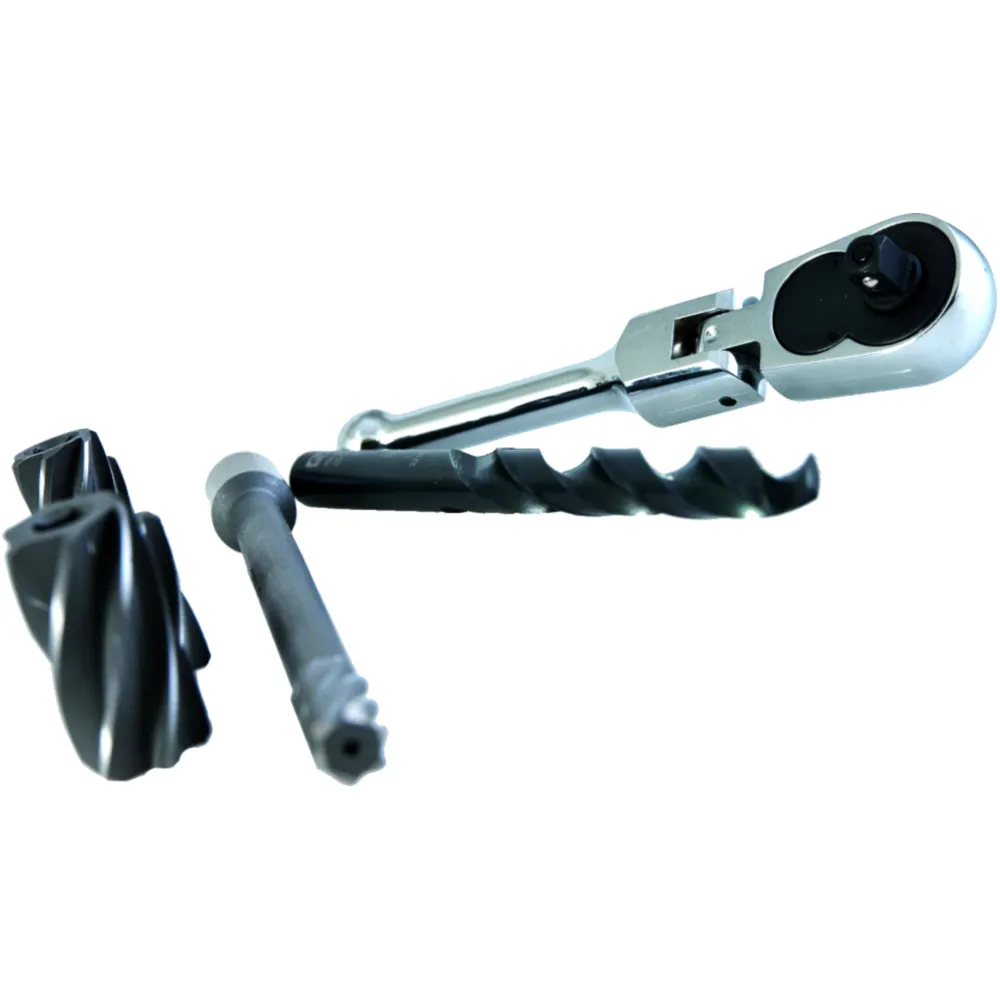

• 6 reamers with 1/4" drive:

1x ø 10 mm, 29.2 mm long (total length 150 mm) - for VW and Opel

1x ø 11 mm, 23.5 mm long (total length 84 mm) - for VAG

1x ø 14 mm, 32.2 mm long - for BMW

1x ø 15 mm, 23.2 mm long - for Mercedes A-Class, Ford, Mazda

1x ø 18 mm, 23.2 mm long - for VAG, BMW

1x ø 18 mm, 34.2 mm long - for VAG, NFZ

• 1x spiral drill ø 10 mm, according to DIN (for VW and Opel)
• 1x special ratchet with 1/4" drive with joint, clockwise rotation only

Manufacturer Nr.: Condor Werkzeug 5315

EAN: 4037374053154
