Druck/Unterdruck Handpumpe

Druck/Unterdruck Handpumpe - Set Metallausführung

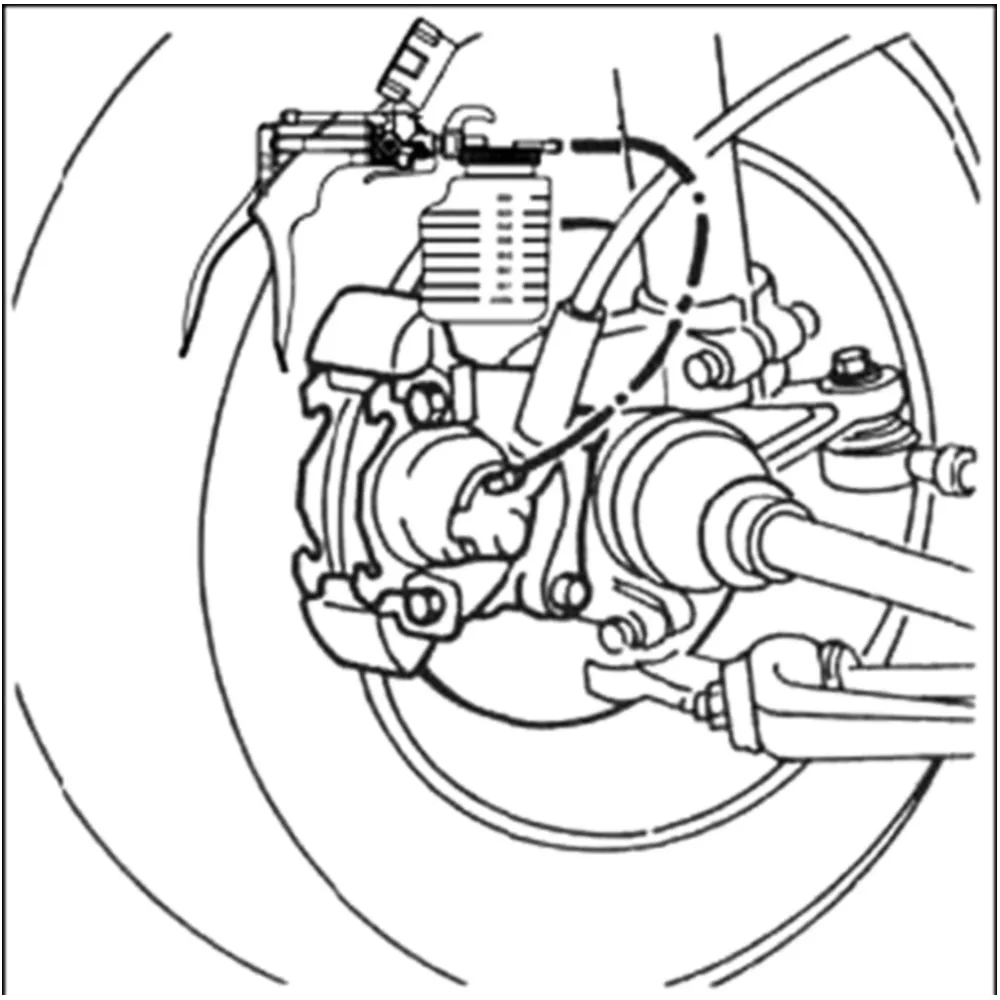

The Druck/Unterdruck Handpumpe from Silverline Automotive-KIT is essential for diagnosing and adjusting vacuum and pressure systems that affect engine performance. This versatile tool allows a single person to conduct brake bleeding efficiently.

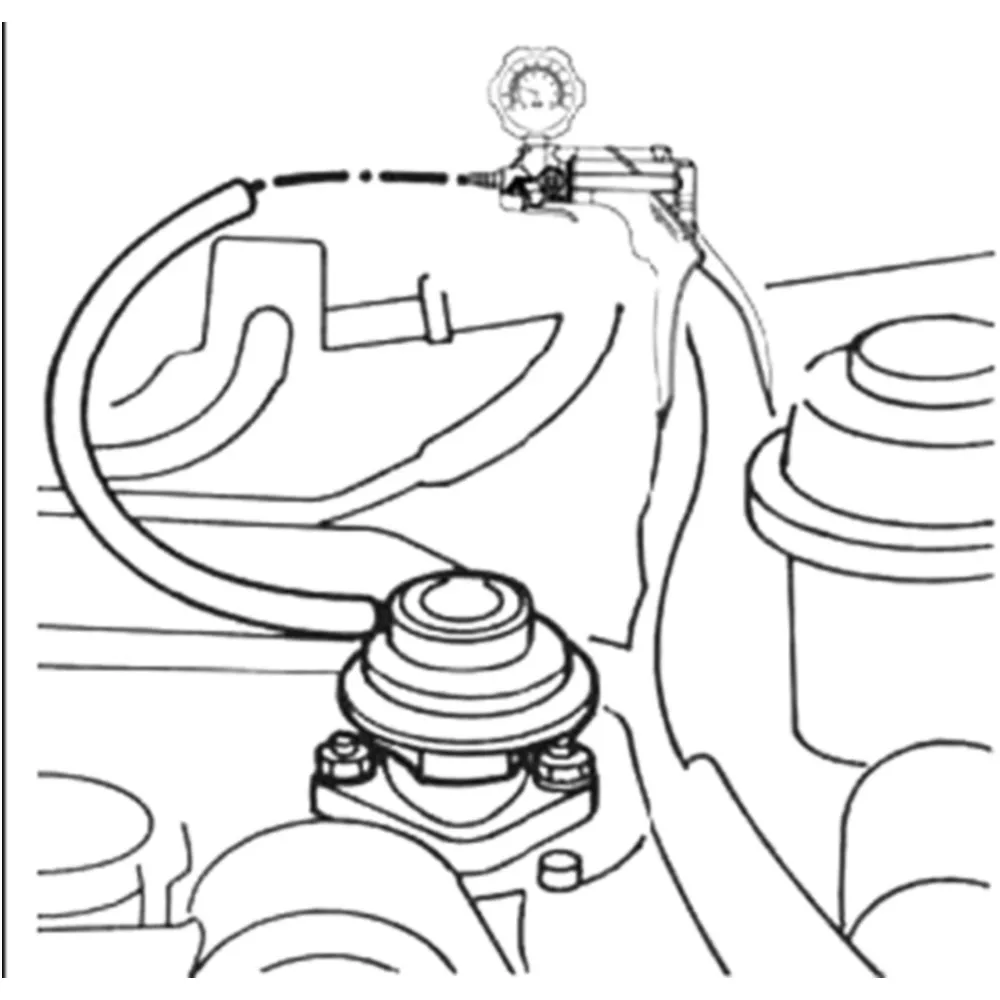

Ideal for exchanging, discharging, and collecting liquids, this kit includes everything needed for hundreds of vehicle diagnostics and mechanical tests. Use it for brake control boosters, injection pump diaphragms, exhaust gas recirculation valves, fuel pressure regulators, load pressure tests, and negative pressure adjustments on ignition manifolds.

Designed with user comfort in mind, it features an ergonomic design and a convenient one-finger trigger for discharging negative pressure or pressure. The pump builds pressure and vacuum through precise lever tension, offering maximum control and accuracy.

Equipped with a durable, precise round vacuum/pressure combination indicator for reliable readings, this hand pump has impressive technical specifications:

• Pumping capacity: 16cm³ per lever pull
• Maximum vacuum: 0.85 bar
• Maximum pressure: 4 bar
• Weight: 1.5 kg

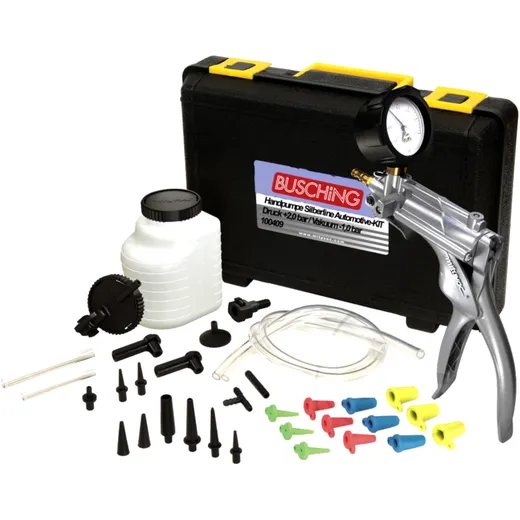

Included in the delivery are:

• Silverline Automotive-KIT hand-held pressure/vacuum pump with 2.5" (65 mm) combination indicator and rubber sleeve
• Liquid container (355 ml / 12 oz.) with liquid line and closure caps
• 6 cone-shaped adapters for connecting hoses from 2.3 to 13 mm
• 2 cone-shaped multiple connectors
• 2 universal screw adapters for ventilation
• 12 plugs for negative pressure
• T adapter for vacuum line
• 2 connection tubes (6.4 x 610 mm)
• Hose adapter (4 x 6.4 mm)
• Adapter with rubber lanyard
• Quick-change hose connector
• Special case for storage
• Instruction manual (German, English, French, Spanish, Dutch)
