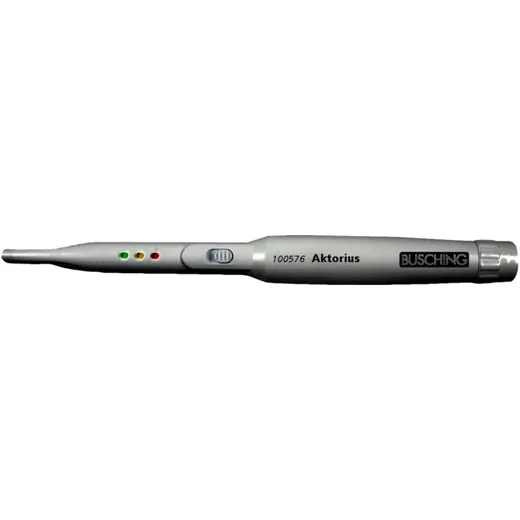

Magnetic Field Tester for Electronic Diagnosis

Busching magnetic field detector / detector Aktorius

• With this detector it is easy to check which electronic component (actuator) is defective

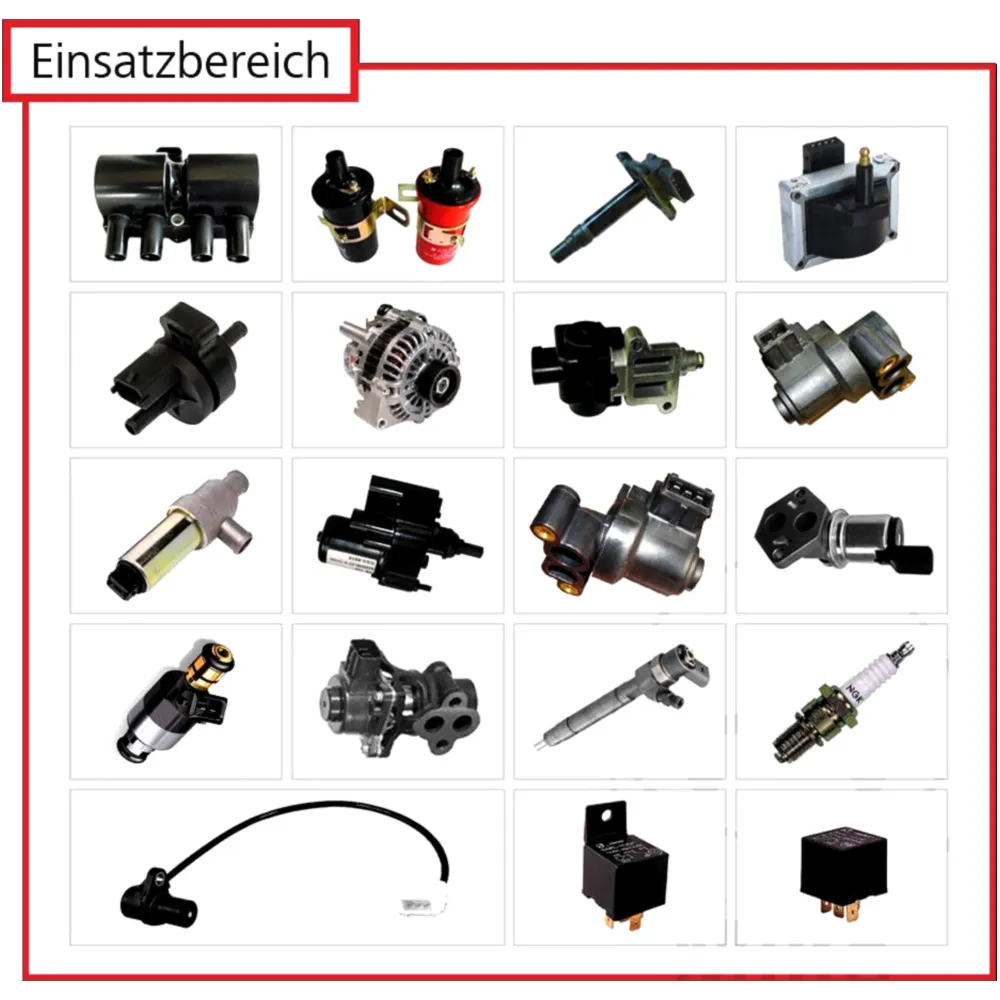

• The following can be tested: ignition coil (conventional, double spark ignition coil, single spark ignition coil), alternator, interior fan, duo valve (for heating, cooling water), valve for exhaust gas regulation

• The detector is held over the electrical component under test - An acoustic signal and illuminated LEDs indicate the functionality of the component

• The tip of the detector has two sides - Both sides "p" and "O" have different sensitivities (depending on the type of actuator)

• In order to obtain an exact result, the detector tip must be held over the wound area of ​​the electronic component

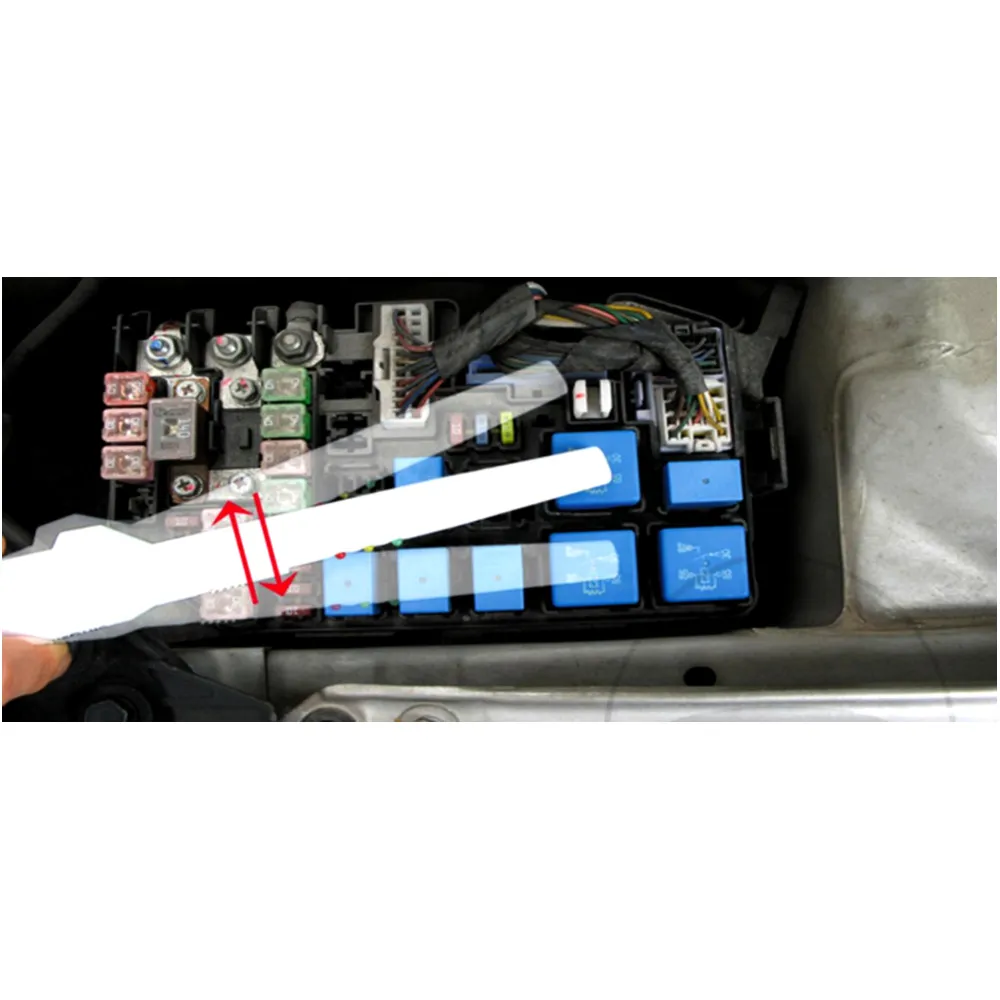

• When testing relays, the detector is swung back and forth

• In addition, the detector has a power switch: stage II is for normal use and stage I is for components whose magnetic field is very strong

Manufacturer Nr.: Busching 100576

EAN: 4053615004907
