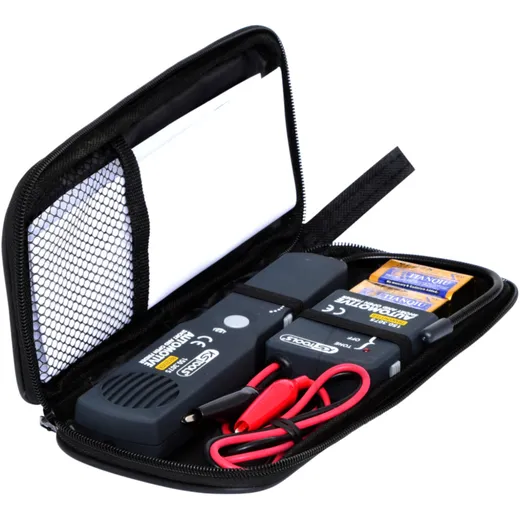

Short Circuit Detector 12-42V for Motorcycles

Short Circuit Detector 12-42V for Motorcycles

Short-circuit detector

• for fast, simple and professional search of short circuits, cable faults and leakage current without having to pierce the cables
• high time saving, because the removal of coverings, carpets and strips at the vehicle can be reduced to the most necessary
• no need to provoke short-cuts
• for tracing cable runs
• Locate electrical components in the vehicle
• Locate interrupted circuits or broken wires
• Locate the cause of severe battery charge loss
• to test and detect temporarily interrupted connections ("loose contacts")

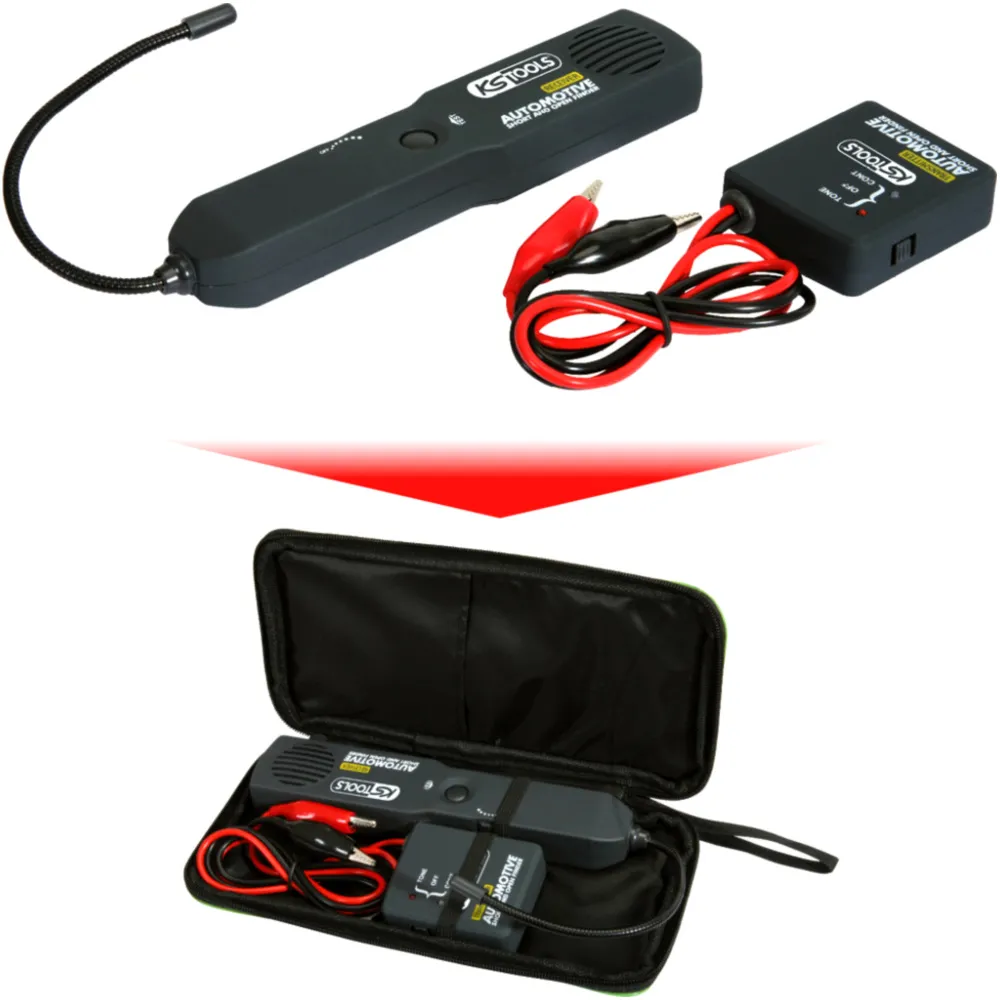

• the transmitter is connected to the circuit to be tested with the insulated crocodile clips via the fuse box
• the emitted signal is received by the receiver and indicated acoustically and by a directional LED

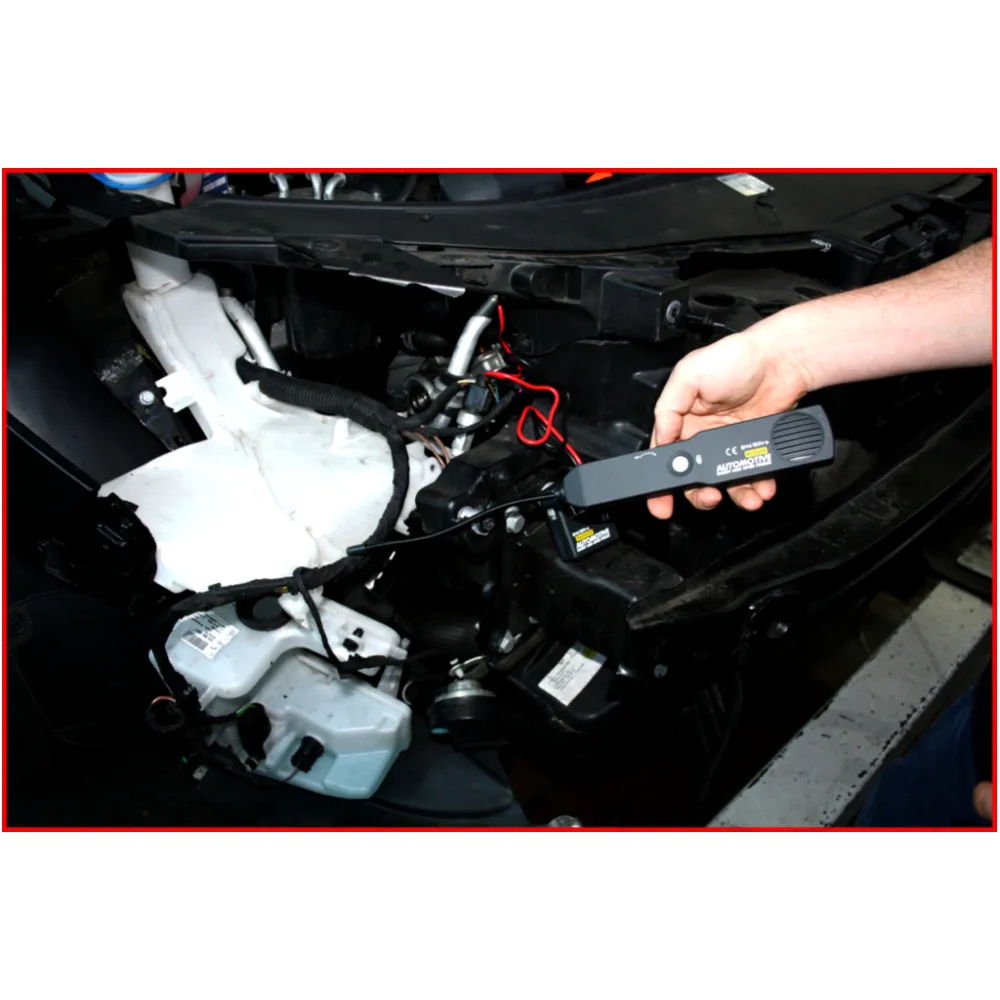

• following the line, the fault can be located
• if the receiver no longer emits a signal, the short-circuit has been found
• Transmitter optionally expandable with headphones via integrated connection
• applicable for circuits from 12V to 42V
• the search sensitivity can be adjusted steplessly
• including 2 x 9V block battery
• in plastic bag

Manufacturer Nr.: KS Tools 150.3075

EAN: 4042146206201
