Common Rail High-Pressure Tester for Diesel Vehicles 2000 bar

Common Rail High-Pressure Tester for Diesel Vehicles 2000 bar

Common rail high pressure tester, up to 2000 bar

• Today's diesel vehicles are mostly equipped with common rail injection systems, which operate at a pressure of over 1000 bar.
• When troubleshooting, other test equipment often relies only on the digital signal from the pressure sensors in the vehicle.
• However, if the sensors are incorrectly adjusted or defective, this can result in incorrect values being displayed.
• The Condor Common Rail High Pressure Tester measures the effective pressure with an analog, damped 2000 bar stainless steel pressure gauge.
• Measuring unit with manometer up to 2000 bar, stainless steel with manometer protection, relief valve 1400 bar.

Test functions:

• Starting pressure of the high pressure pump
• Operating pressure in different speed ranges - also with running engine
• Maximum pressure of the high pressure pump
• Leakage or dripping at individual injectors
• with an accessory adapter set for the tester, the functionality of the pressure regulator and the high-pressure pump can also be tested

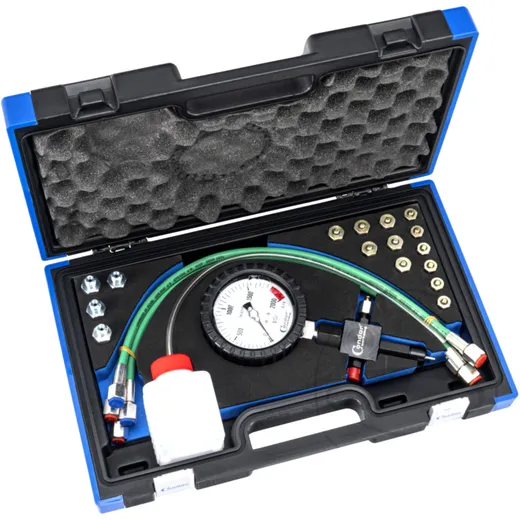

Contents:

1 x stainless steel pressure gauge, 2000 bar

2 x connection hose, M12x1.5, 550 mm

2 x connection hose, M14x1.5, 550 mm

2 x thread adapter, M12x1.25

2 x thread adapter, M14x1.25

6 x screw plug, M12x1.5

6 x screw plug, M14x1.5

1 x collecting bottle

Manufacturer Nr.: Condor Werkzeug

EAN: 4037374033507
