Common Rail High-Pressure Testing Device 1000 bar

Leitenberger Common Rail high pressure tester CRP 01.2

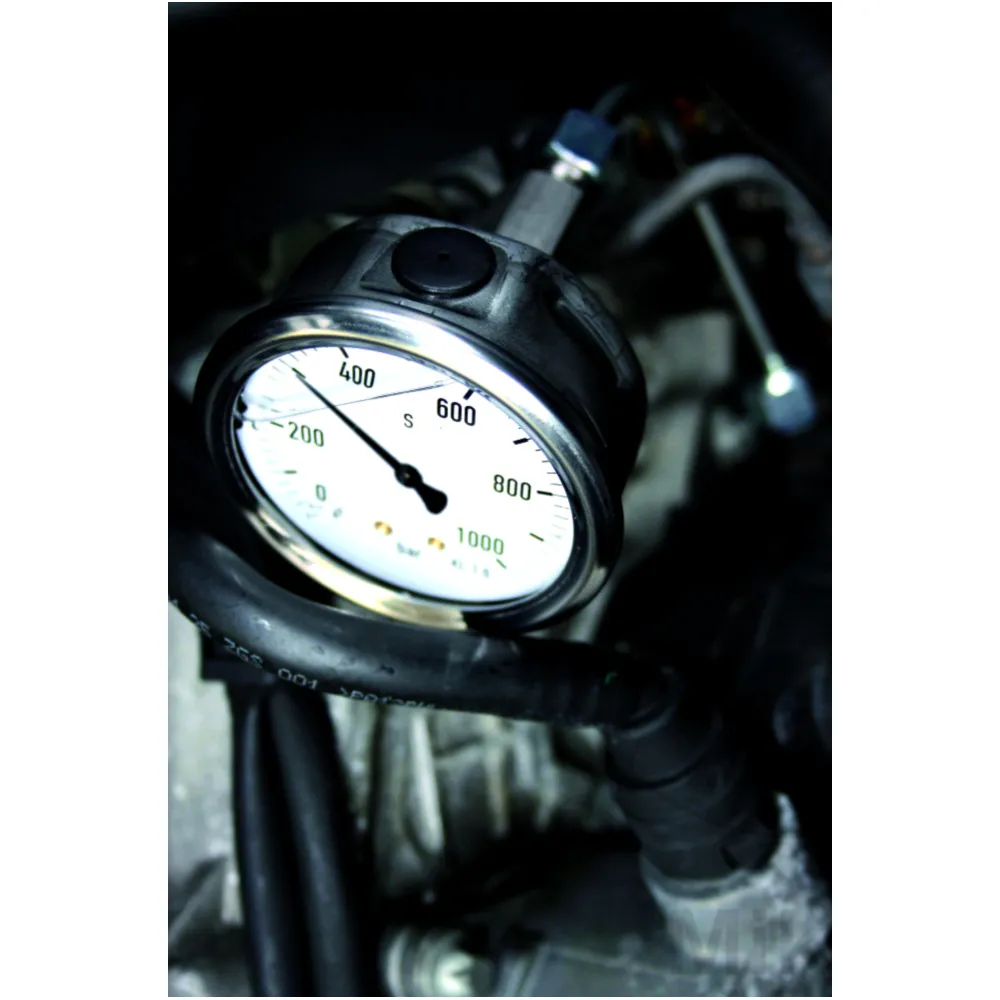

• With analogue display for testing the high-pressure pump when the engine is started

• Application range of the test device up to max. 1000 bar / 1400 psi

• High pressure gauge in stainless steel version, NG 63, measuring range 0 - 1000 bar, glycerine filled

• The versatile CRPZ adapters are versatile

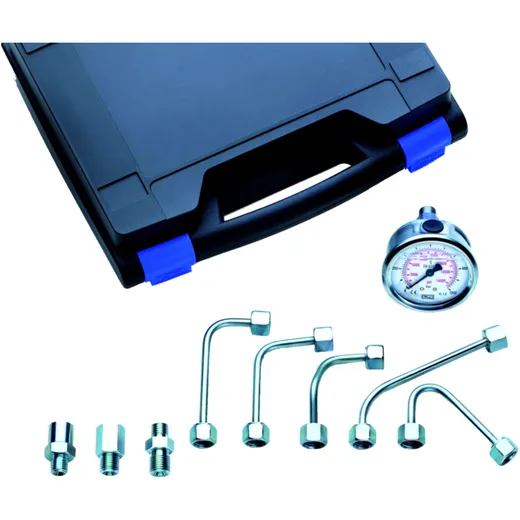

Delivery:

• 1 high pressure gauge NG 63, 0 ... 1000 bar, glycerine filled

• DETA adapter thread M 14x1.5 (IG) - M 12x1.5 (AG)

• 1 Reducing piece G 1/4 - M 12x 1.5

• CRPZ 01 adapter thread M 14x1.5 (AG) - M 12x1.5 (AG)

• CRPZ 02 Dieselle line rigid, 120 mm, bending 50 °, M 12x1,5 - M 14x1,5

• CRPZ 03 Dieselle wire rigid, 120 mm, bending 90 °, M 12x1,5 - M 14x1,5

• CRPZ 04 Dieselle cable rigid, 120 mm, bend 90 °, angle of cable 40 mm

• CRPZ 05 Dieselle wire rigid, 120 mm, bending 90 ° + 45 °, M 12x1,5 - M 14x1,5

• CRPZ 06 Dieselle line rigid, 120 mm, bend 65 °, M 12x1.5 - M 14x1.5

• Sturdy plastic case

Manufacturer Nr.: Leitenberger 042134_1

EAN: 4251712714976
