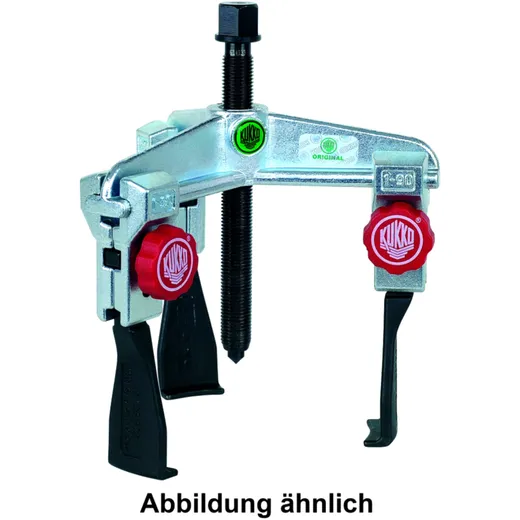

3-Arm Puller, 160 mm Reach, Stainless Steel QUICK-ADJUST

KUKKO® 3-arm puller, series 30 + S

• The narrow, slim S puller hooks are particularly suitable for pulling off gear wheels, bearings, pinions and synchronizer bodies in tight, hard-to-reach places and narrow spaces

• Can be used as external and internal puller by turning the pulling hooks over

• Also suitable for removing asymmetrical workpieces

• The manual knurls enable quick release, stepless movement and fixing of the pulling hooks on the crossbar without a wrench

• The three arms guarantee uniform load distribution and therefore a particularly secure hold on the part to be removed

• Parallel pulling hooks in any position, even under full load

• The part to be removed lies only on the large contact surfaces of the pulling hooks and is therefore carefully removed

• The trusses have a hexagonal profile on which a key can be attached to hold them if necessary

• The spindle heads are provided with a collar that prevents the wrench from slipping during the pulling process

• The optionally available shaft extensions enable the clamping depth to be easily adapted to the application

• GLIDE & FIX technology - The optimized geometry of the crossbeam and sliders ensures particularly easy moving, but also a rock-solid fixation, the pulling hook on the crossbeam

• QUICK-ADJUST technology - enables the trigger hooks to be released and moved quickly without a wrench thanks to the hand knurl

• SELFLOCK technology - By turning the locking screw, the hooks are clamped centrally and grip firmly around the part to be removed. This prevents the hooks from moving or slipping

Technical data:

Wingspan: 160 mm (6 ")

Clamping depth: 150 mm (6 ")

Hexagon: 17 mm

Outside span: 100 - 220 mm

Performance: max. 5 tons. / 120 Nm

Weight: 2.80 kg

Manufacturer Nr.: Kukko 30-2+S

EAN: 4021176757051
