3-Arm-LASCHENABZIEHER

3-Arm-LASCHENABZIEHER

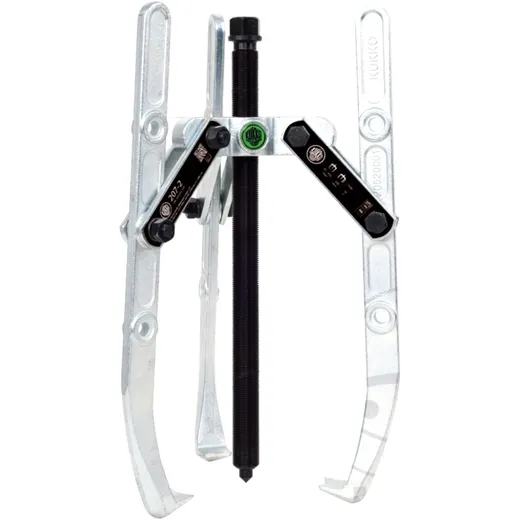

Kukko 3-Arm Puller: The ultimate solution for extracting large bearings, gears, and washers with maximum efficiency.

Designed for robust applications in trade, workshop, and industry, this heavy-duty 3-arm puller features oscillating, height-adjustable puller legs and a versatile combination crosshead. With a clamping width of up to 450 mm and a clamping depth of 400 mm, it delivers unmatched adaptability for various component removal tasks.

This tool excels in centric pulling, capable of effortlessly removing any part positioned on a shaft that is freely accessible. The oscillating puller legs ensure seamless adjustment to any installation situation, making it highly versatile. Thanks to the combination crossbar, you can choose to operate with either 2 or 3 arms, depending on your requirements.

Engineered with a claw shape that varies by version, this 3-arm design guarantees even load distribution, providing a particularly secure grip on the part to be extracted.Technical Specifications:

• Clamping Width: 450 mm
• Clamping Depth: 400 mm
• Max. Pulling Force: 100 kN (10 t)
• Weight: 9.40 kg
• Width Across Flats: 27 mm

Scope of Delivery: 1x 3-arm puller with oscillating puller legs.
