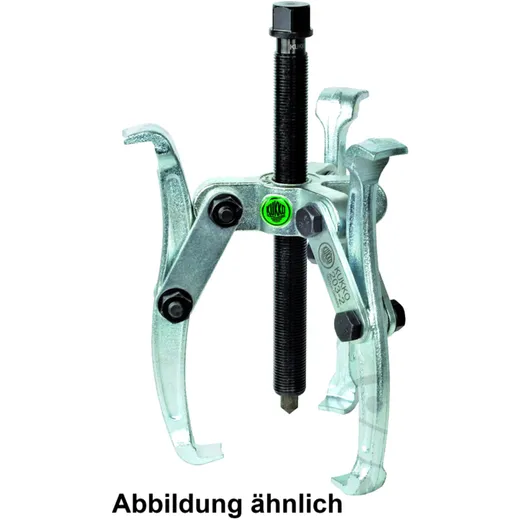

KUKKO 3-Arm Puller 280 mm with Reversible Hooks

KUKKO® 3-arm puller, series 203

• Robust universal design for pulling pulleys, gear wheels, ball bearings and similar parts

• The combi-puller can be used as a 2-arm as well as a 3-arm puller by simple conversion of the pull-off hooks and thus combines the advantages of both models

• The draw-off hooks are reversible and can be used on both sides, with different hook shapes

• The multi-hole in the pull-off hook enables working with variable clamping depth

• Easy adjustment of the pull-off hooks to the part to be peeled, since these are pivotable

• As the spindle pressure increases, the hook-off hooks clasp with automatically increasing force, the part to be peeled off

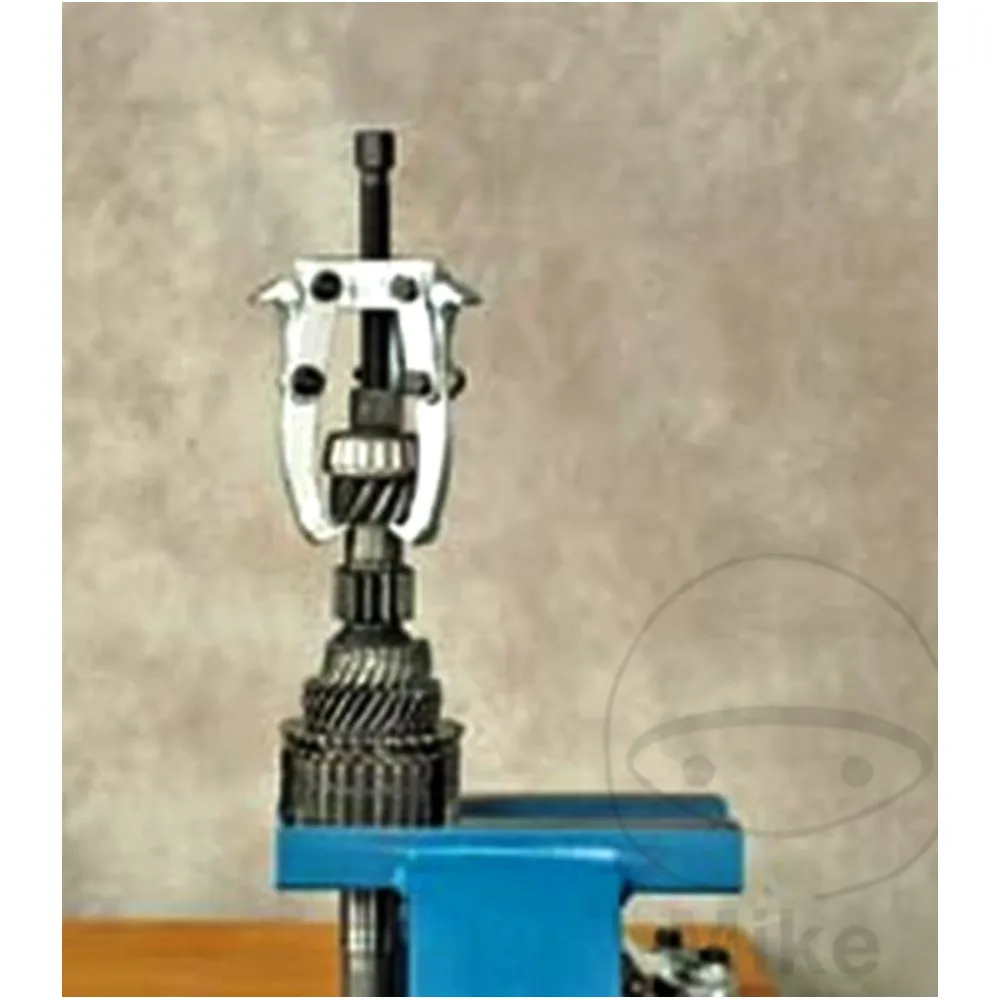

• Attention: Detail picture for advertising purposes only! Observe safety instructions!

Technical data:

Wingspan: 280 mm (11 ")

Thickness: 130 mm (5 1/4 ")

Number of holes in hook: 1

Hexagon: 22 mm

Power: max.7 to. / 150 Nm

Weight: 3.10 kg

Manufacturer Nr.: Kukko 203-2

EAN: 4021176027826
