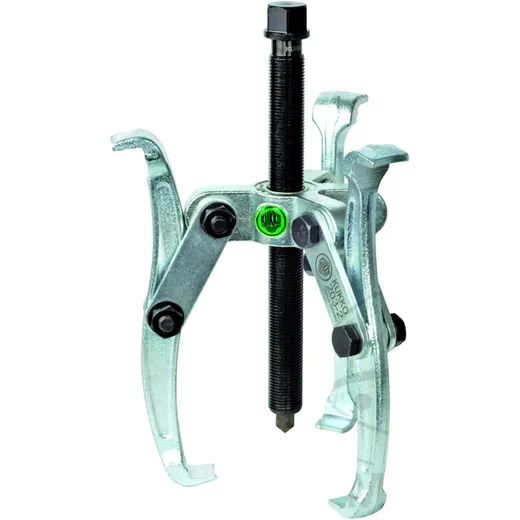

Kukko 3-Arm Puller with Reversible Hooks, 120mm Spread

KUKKO® 3-arm puller, series 203

• Robust universal design for pulling pulleys, gear wheels, ball bearings and similar parts

• The combi-puller can be used as a 2-arm as well as a 3-arm puller by simple conversion of the pull-off hooks and thus combines the advantages of both models

• The draw-off hooks are reversible and can be used on both sides, with different hook shapes

• The multi-hole in the pull-off hook enables working with variable clamping depth

• Easy adjustment of the pull-off hooks to the part to be peeled, since these are pivotable

• As the spindle pressure increases, the hook-off hooks clasp with automatically increasing force, the part to be peeled off

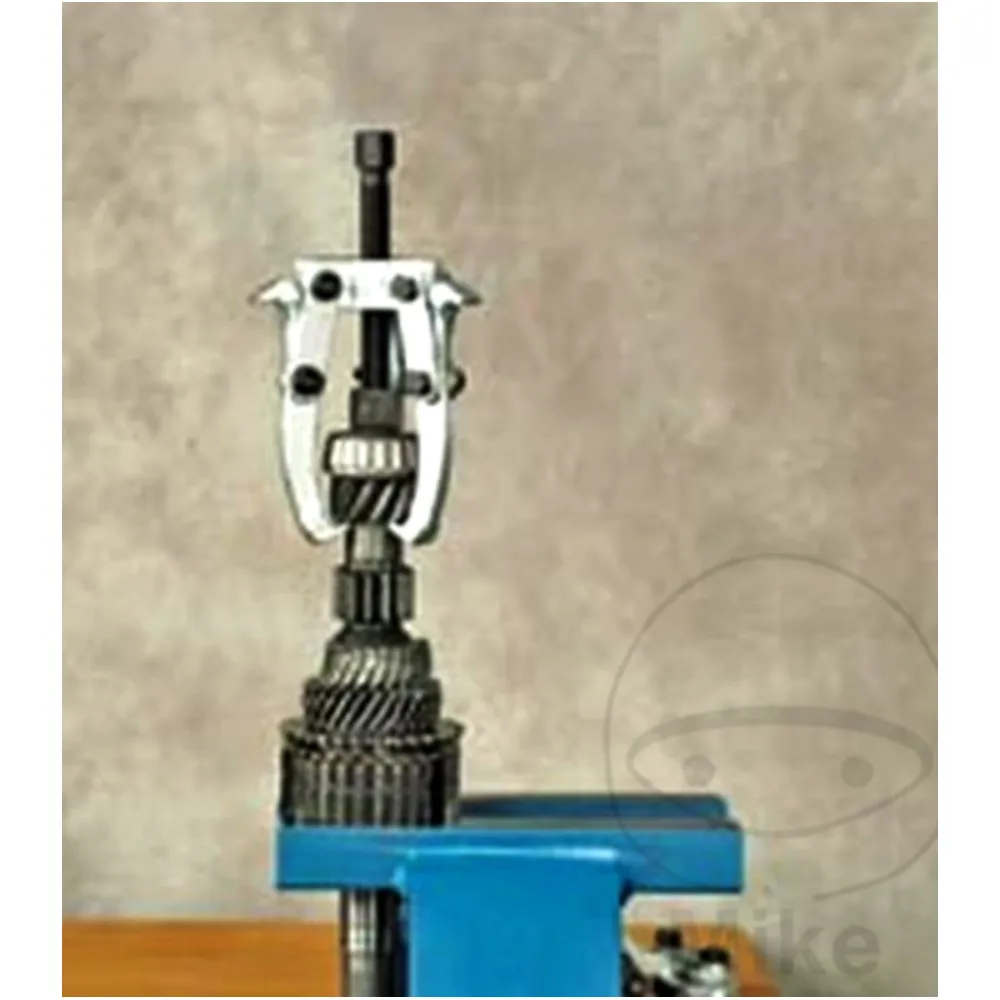

• Attention: Detail picture for advertising purposes only! Observe safety instructions!

Technical data:

Wingspan: 120 mm (5 ")

Depth of cut: 75 mm (3 ")

Number of holes in hook: 1

Hexagon: 14 mm

Power: max. 1.5 to. / 25 Nm

Weight: 0.60 kg

Manufacturer Nr.: Kukko 203-0

EAN: 4021176027666
