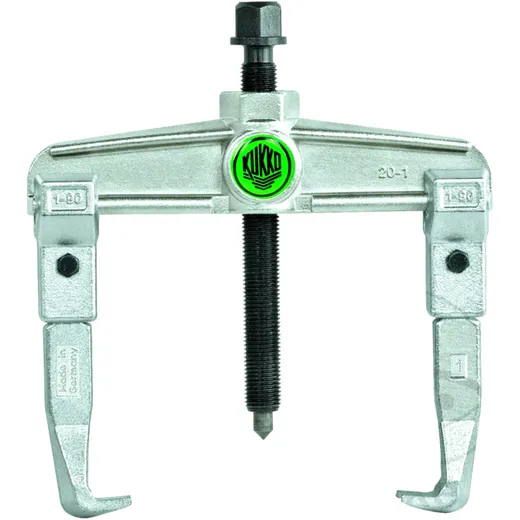

Two Arm Universal Puller 90mm

KUKKO® Two-arm universal puller, series 20

• Universal, 2-arm design with standard extraction hooks in standard lengths

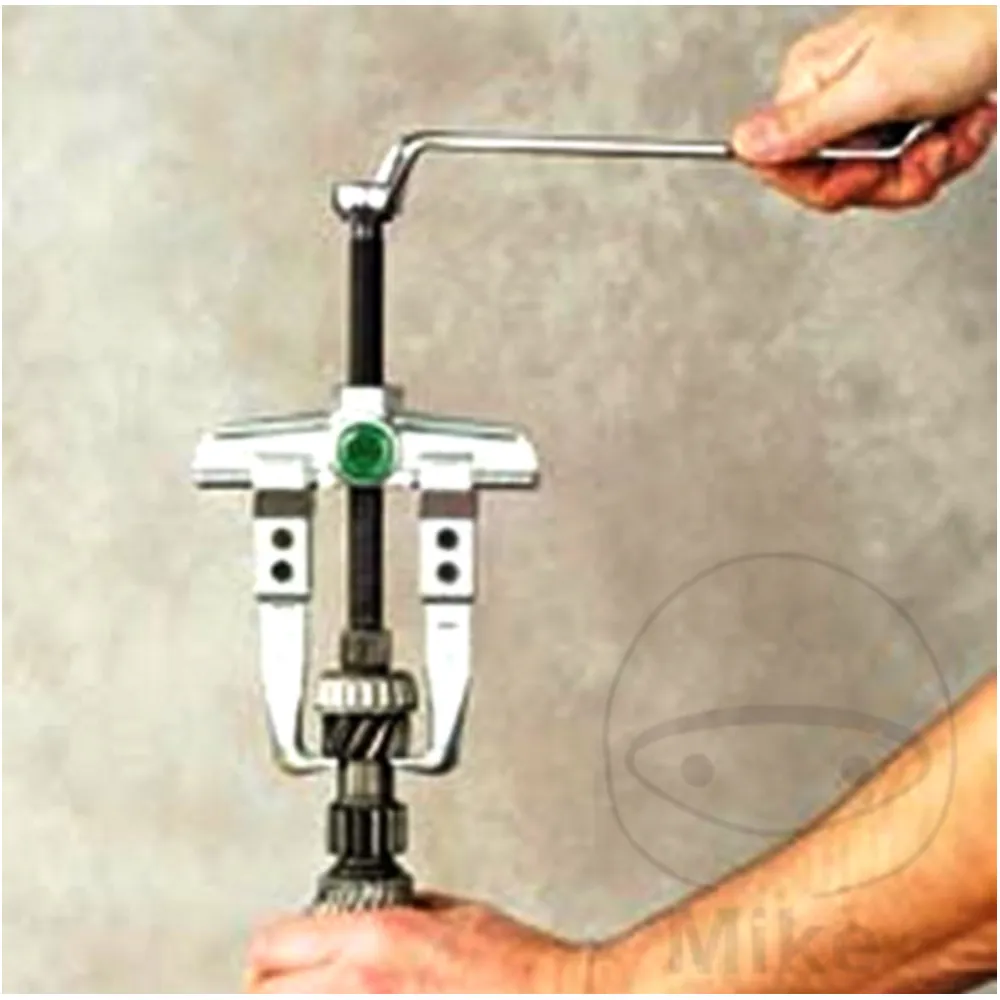

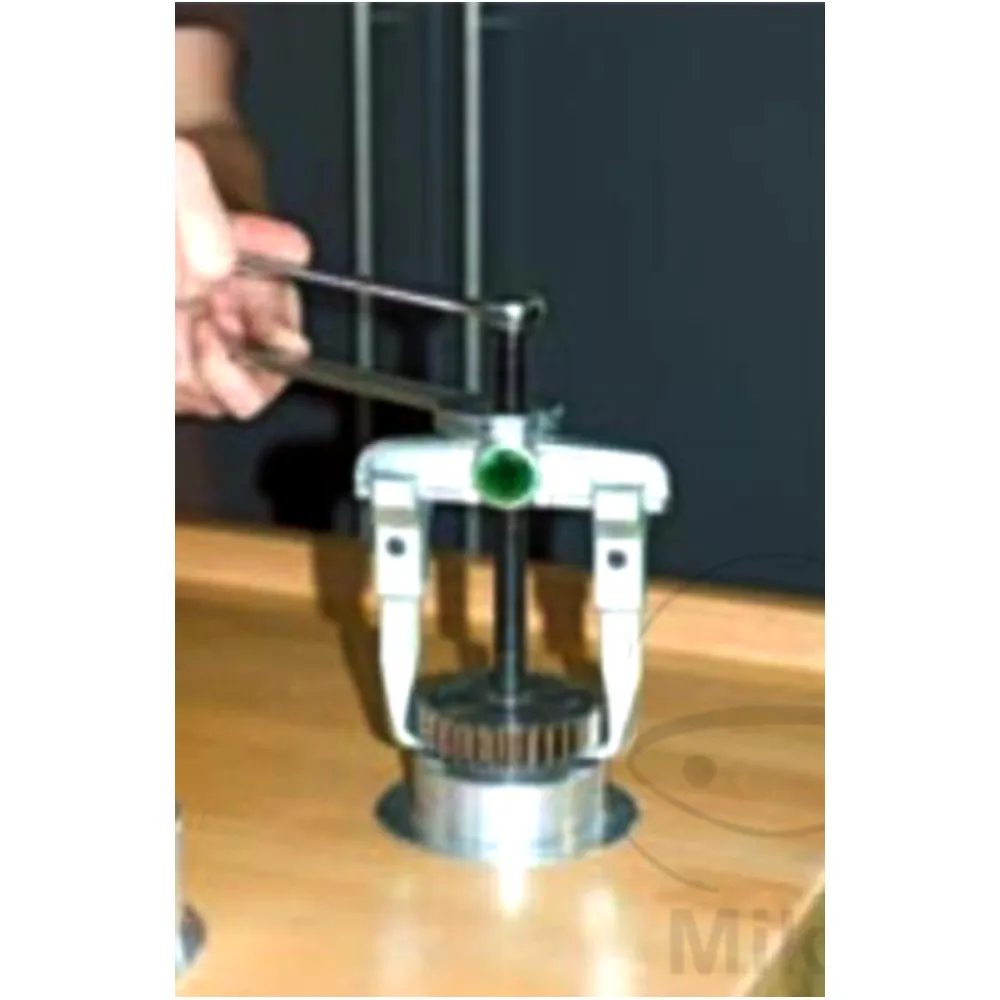

• Suitable for removing ball bearings, bearings, gears, etc.

• Can be used as an outer and inner puller by turning the pull-off hooks

• Also suitable for removing asymmetrical workpieces

• The two-armed arm allows for space-saving work

• In any position, even under full load, parallel pull hooks

• The part to be peeled off lies exclusively on the large contact surfaces (C) of the pull-off hooks and is thereby gently pulled off

• On the crossmember infinitely adjustable withdrawal hooks

• The traverses, sizes -1 to -30, have a hexagonal profile on which a key can be attached if required

• The spindle heads are provided with a collar that prevents the wrench from slipping during the pull-off operation

• The optionally available shaft extensions allow a simple adaptation of the clamping depth to the application

• Powerful design, high performance and long life

• In the case of particularly fixed parts, the mechanical pressure spindle, for the sizes -2 to -5, can be exchanged for a hydraulic pressure spindle

• GLIDE & FIX® - The optimized geometry of the traverse and slides ensures a particularly easy shift, but also a rock-tight fixation, the pull-off hook on the traverse

• SELFLOCK® - By turning the locking screw, the hooks are centered tightly and grip the part to be peeled off. Slipping or slipping of the hooks is thus prevented

Wingspan: 90.0 mm (3 inches)

Working range: 70 - 140 mm

Clamping depth: 100.0 mm (4 inches)

Hexagon SW: 17 mm

Weight: 1.10 kg

Manufacturer Nr.: Kukko 20-1

EAN: 4021176009433
