Products description

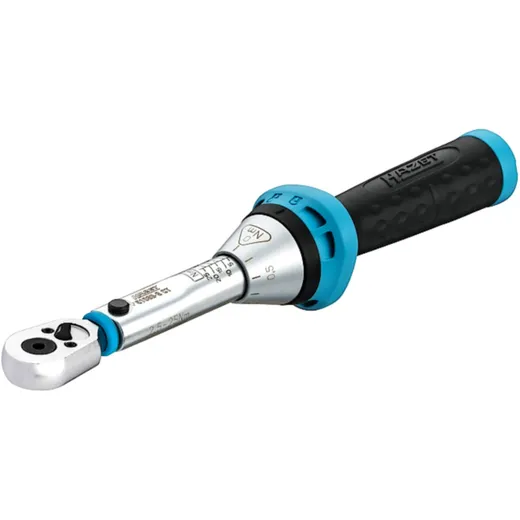

Torque Wrench 2.5-25Nm for precise fastening
Torque wrench
- User-friendly reversible ratchet for bits
- Accuracy ± 3 or 4 % of scale value (in actuation direction for right-hand tightening)
- Safe: Haptic (short travel release), Acoustic (buckling element)
- Designed for rough workshop use
- Wide range of applications for controlled screw tightening in tire service, two-wheel, car, commercial vehicle applications as well as various applications in industry and trade.
- Optimized sealing ring for protection against foreign bodies
- Handle with more grip for easier power transmission
- Setting aid by means of detents for optimized operator guidance ensures safe and fast setting of the desired torque value by turning the handle
- Safe locking of the setting values by detent function on the slewing ring
- Triangular slewing ring prevents uncontrolled rolling away
- Lock symbols indicate respective locking status.
- Rope loop can be attached through openings on the locking slewing ring
- Easy-to-read, high-contrast scale
- Permanent legibility due to laser inscription on the scale sleeve
- Integrated changeover lever
- With calibration certificate and serial number
- For e.g. maintenance and servicing work on the burner flange or the electrodes on compact modules of condensing boilers and combi gas boilers
- For aluminum and carbon parts - plastic attachments - motorcycle fairings - scooters - bicycles
- DIN EN ISO 6789-2:2017
- Output: hexagon 6,3 (1/4 inch)
- Dimensions / length: 234 mm
- Nm min-max: 2.5 - 25 Nm
- Tolerance: 3
- Graduation (Nm): 0.25 Nm
- Effective length of the torque wrench min.-max. l1 mm: 176.20 - 166.20 Nm
- Actuating force min.-max. kg: 1.4 - 15.3 kg
- Number of teeth: 20 (actuation angle 18°)
- Head thickness a: 10.2 mm
- Head width b: 24 mm
- No more turning back: HAZET torque wrenches of the 5000 and 6000 series have been proven in long-term endurance tests that turning back to the smallest scale value is not necessary.
Manufacturer Nr.: Hazet 5108B-3CT
EAN: 4000896244591
Description
This is an automatic translation. Click here for the original text in German
Torque wrench
- User-friendly reversible ratchet for bits
- Accuracy ± 3 or 4 % of scale value (in actuation direction for right-hand tightening)
- Safe: Haptic (short travel release), Acoustic (buckling element)
- Designed for rough workshop use
- Wide range of applications for controlled screw tightening in tire service, two-wheel, car, commercial vehicle applications as well as various applications in industry and trade.
- Optimized sealing ring for protection against foreign bodies
- Handle with more grip for easier power transmission
- Setting aid by means of detents for optimized operator guidance ensures safe and fast setting of the desired torque value by turning the handle
- Safe locking of the setting values by detent function on the slewing ring
- Triangular slewing ring prevents uncontrolled rolling away
- Lock symbols indicate respective locking status.
- Rope loop can be attached through openings on the locking slewing ring
- Easy-to-read, high-contrast scale
- Permanent legibility due to laser inscription on the scale sleeve
- Integrated changeover lever
- With calibration certificate and serial number
- For e.g. maintenance and servicing work on the burner flange or the electrodes on compact modules of condensing boilers and combi gas boilers
- For aluminum and carbon parts - plastic attachments - motorcycle fairings - scooters - bicycles
- DIN EN ISO 6789-2:2017
- Output: hexagon 6,3 (1/4 inch)
- Dimensions / length: 234 mm
- Nm min-max: 2.5 - 25 Nm
- Tolerance: 3
- Graduation (Nm): 0.25 Nm
- Effective length of the torque wrench min.-max. l1 mm: 176.20 - 166.20 Nm
- Actuating force min.-max. kg: 1.4 - 15.3 kg
- Number of teeth: 20 (actuation angle 18°)
- Head thickness a: 10.2 mm
- Head width b: 24 mm
- No more turning back: HAZET torque wrenches of the 5000 and 6000 series have been proven in long-term endurance tests that turning back to the smallest scale value is not necessary.
