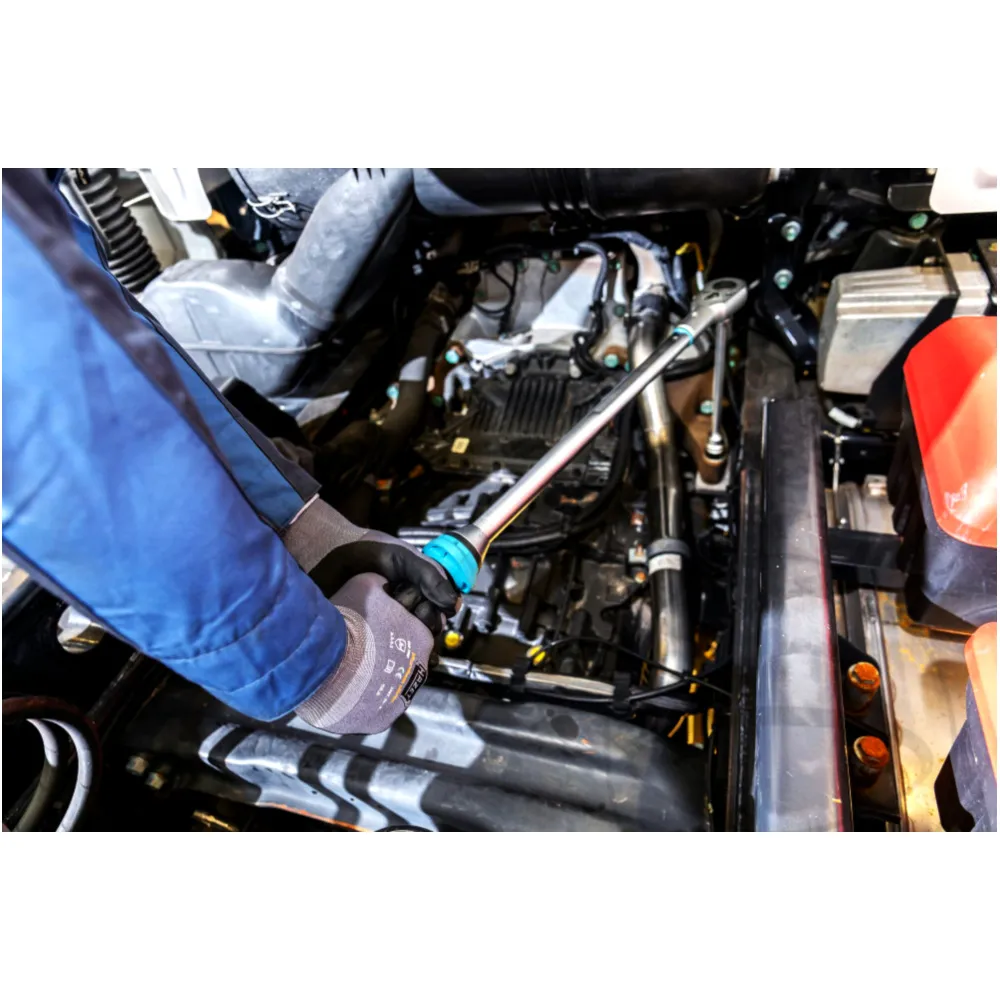

Torque Wrench for High Torque Applications 100-400 Nm 1/2 Inch Drive

Torque Wrench for High Torque Applications 100-400 Nm 1/2 Inch Drive

Torque wrench

• For applications with high torques: Axle center bolts on FIAT Ducato and MERCEDES-BENZ Sprinter, wheel bearings on e.g. OPEL Movano and PEUGEOT Boxer, bearing blocks on agricultural machinery and transmission blocks on commercial vehicles
• Thanks to the possibility of using 12.5 mm (1⁄2″) socket wrench inserts/extensions, torque-controlled screw connections from 100 to 400 Nm can also be made in manual and industrial production areas, e.g. with M 12 threads.e.g. with threads from M 12 to M 16 (strength class 12.9) or M 16 to M 24 (strength class 5.6) with restricted access, e.g. for flange or machine screw connections
• Accuracy ± 3 % of scale value (in actuating direction) (5107-3 CT ± 4 % accuracy of scale value)
• Safe: Haptic (short-path actuation), acoustic (buckling element)
• Wide range of applications for controlled screw tightening in tire service, two-wheeler, car and commercial vehicle applications as well as various applications in industry and trade.
• Optimized sealing ring to protect against foreign bodies
• Handle with more grip for easier power transmission
• Setting aid with detent points for optimized operator guidance ensures safe and quick setting of the desired torque value by turning the handle
• Secure locking of the setting values thanks to the locking function on the swivel head
• Triangular-shaped swivel head prevents uncontrolled rolling away
• Lock symbols indicate the respective locking status.
• Cable loop can be attached through openings on the locking turntable
• Permanent legibility thanks to laser marking on the scale sleeve
• Changeover lever with freewheel function - reduces risk of injury and malfunctions
• Output: Square 12.5 mm (1/2 inch)
• Dimensions / length: 790 mm
• Net weight (kg): 3.6 kg
• Nm min-max: 100 - 400 Nm
• Tolerance: 3 %
• Scale division (Nm): 2.5 Nm
• Effective length of the torque wrench min.-max. l1 mm: 687.80 - 675.80 Nm
• Actuating force min.-max. kg: 14.8 - 60.3 kg
• Number of teeth: 32 (operating angle 11.25°)
• Head thickness a: 28.5 mm
• Head width b: 64 mm
• No more turning back: long-term endurance tests have shown that HAZET torque wrenches in the 5000 and 6000 series do not need to be turned back to the smallest scale value

Manufacturer Nr.: Hazet 5143-3CT

EAN: 4000896235407
