Torque Wrench 1/2 20-120 Nm for Hybrid and Electric Vehicles

Torque Wrench 1/2 20-120 Nm for Hybrid and Electric Vehicles

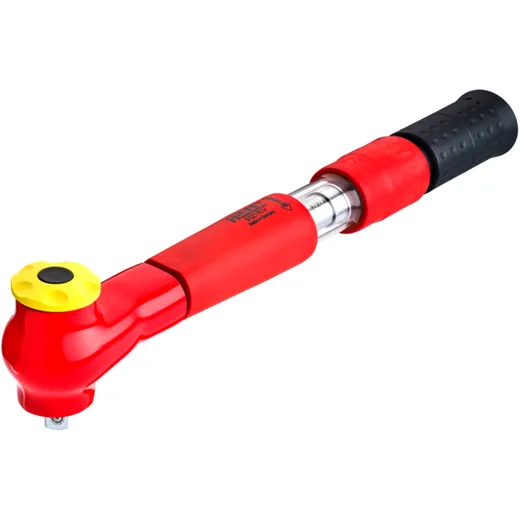

Hazet torque wrench, insulated 1/2 inch, 20-120 Nm

For work on hybrid & electric vehicles (high-voltage vehicles)

• Tightening torque min/max 20-120 Nm
• Tolerance 4%
• Square 1/2 inch
• Standard: DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1, IEC 60900:2018
• Right/left release by reversible square,
  thus tightening with set torque both to the right and to the left within the specified tolerance
• Low weight for easy handling and fatigue-free working
• Slim design in strict compliance with the required insulation factors (material thickness / overlaps)
• Made in Germany
• Length 420 mm
• VDE protective insulation up to 1000V

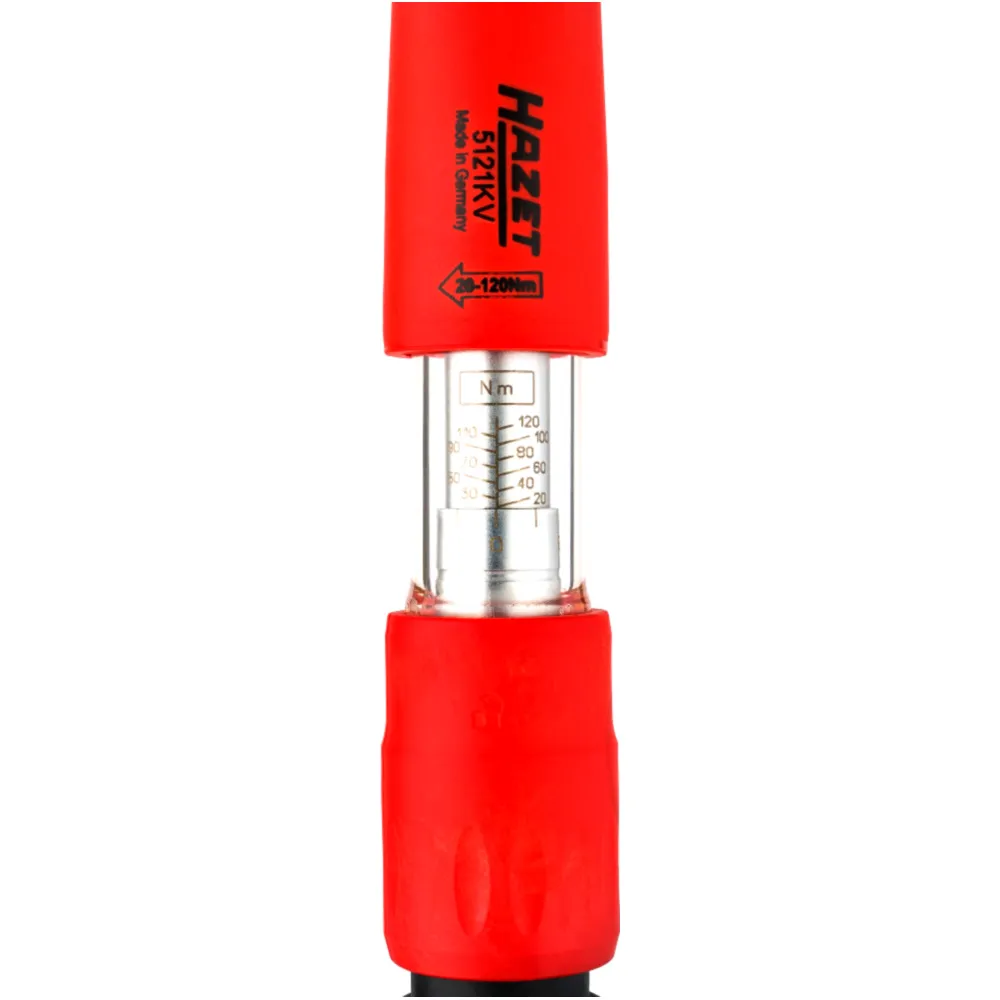

• Scale graduation 1.0 Nm
• Actuating force min. - max. kg: 6.0 - 37.4 kg
• Number of teeth: 32 (operating angle 11.25 degrees)
• No more turning back: long-term endurance tests have shown that HAZET torque wrenches in the 5000 and 6000 series do not need to be turned back to the smallest scale value


Manufacturer Nr.: Hazet 5121KV

EAN: 4000896233397
