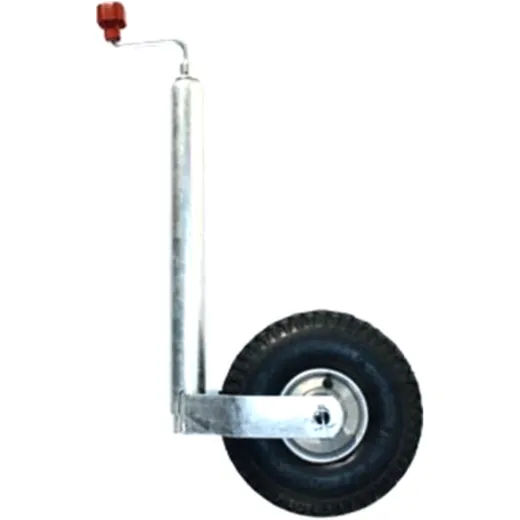

Support Wheel 48MM 260X85 for AL-KO

Jockey wheel on sheet steel rim

• High-quality corrosion protection: hot-dip galvanizing in a thick layer up to 70 μm The abrasion of the zinc layer when adjusting the height using the clamp is not critical. The structure of the zinc layer is uneven (flowery)

• Crank smoothly: The built-in thrust bearing under the crank makes operation easier

• Extended version

• Pneumatic tires

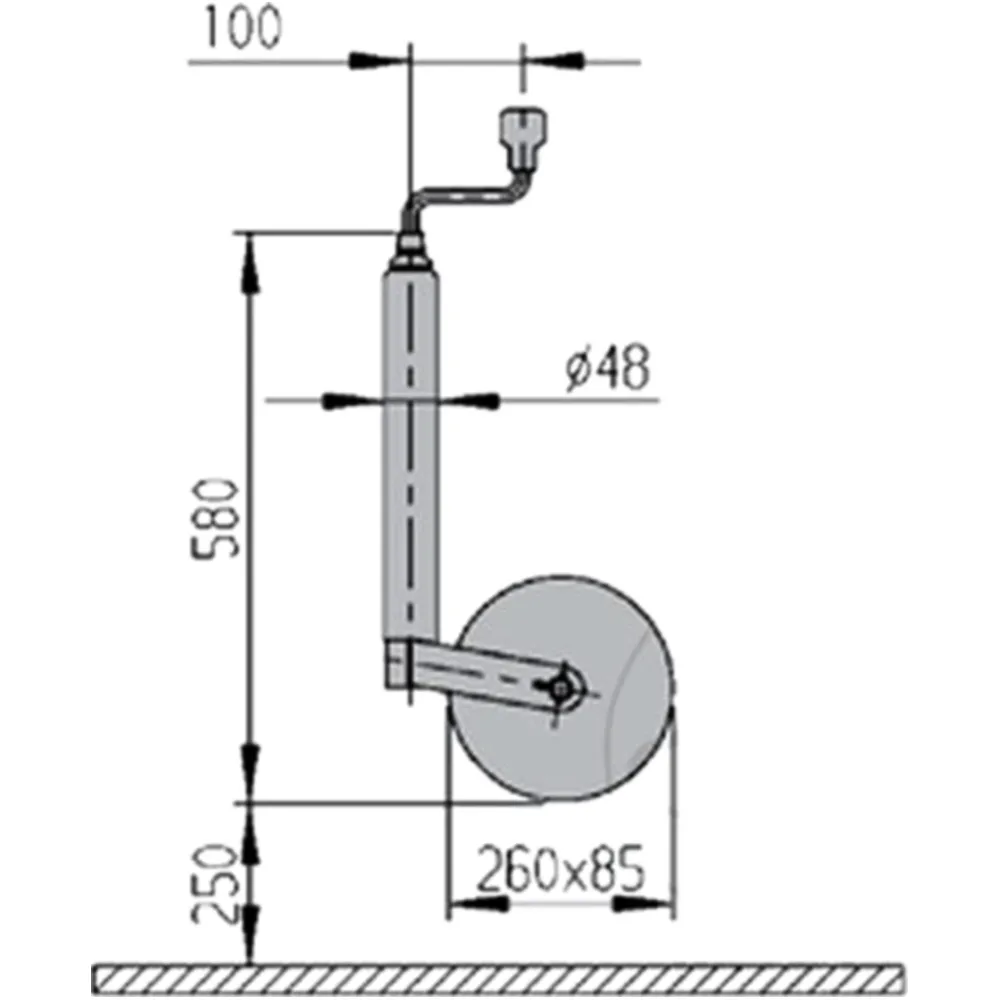

Technical specifications

Load capacity static / (dynamic: 250/120 kg

Outer tube Ø: 48 mm

Surface treatment: hot-dip galvanized

Crank: with thrust bearing

Rim: sheet metal

Wheel: 260 x 85 mm, pneumatic tires

Wheel bearings: plain bearings

Overall length 580 mm

Adjustment stroke: 250 mm

Dead weight: 5 kg

Manufacturer Nr.: AL-KO 1222438

EAN: 1222438
