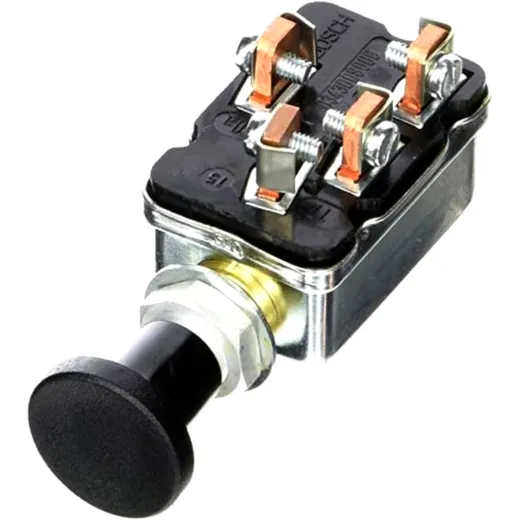

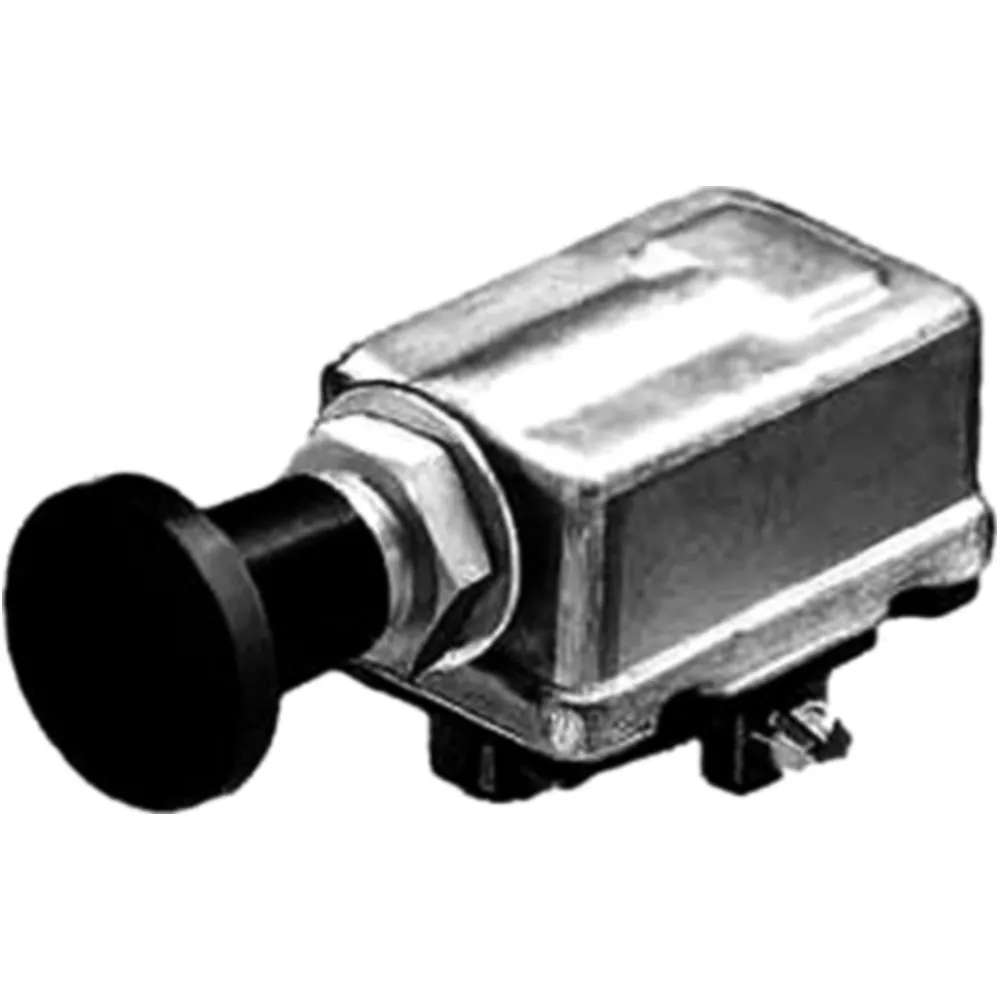

Bosch Glow Plug Switch for Motorcycles

Bosch Glow Plug Switch for Motorcycles

Bosch start pull switch

• Galvanized steel housing
• With loosely enclosed black switch knob
• Switch knob must be held in position 1 (preglow) and 2 (start), returns automatically to position 0 (off).

Type of actuation: Pull actuation

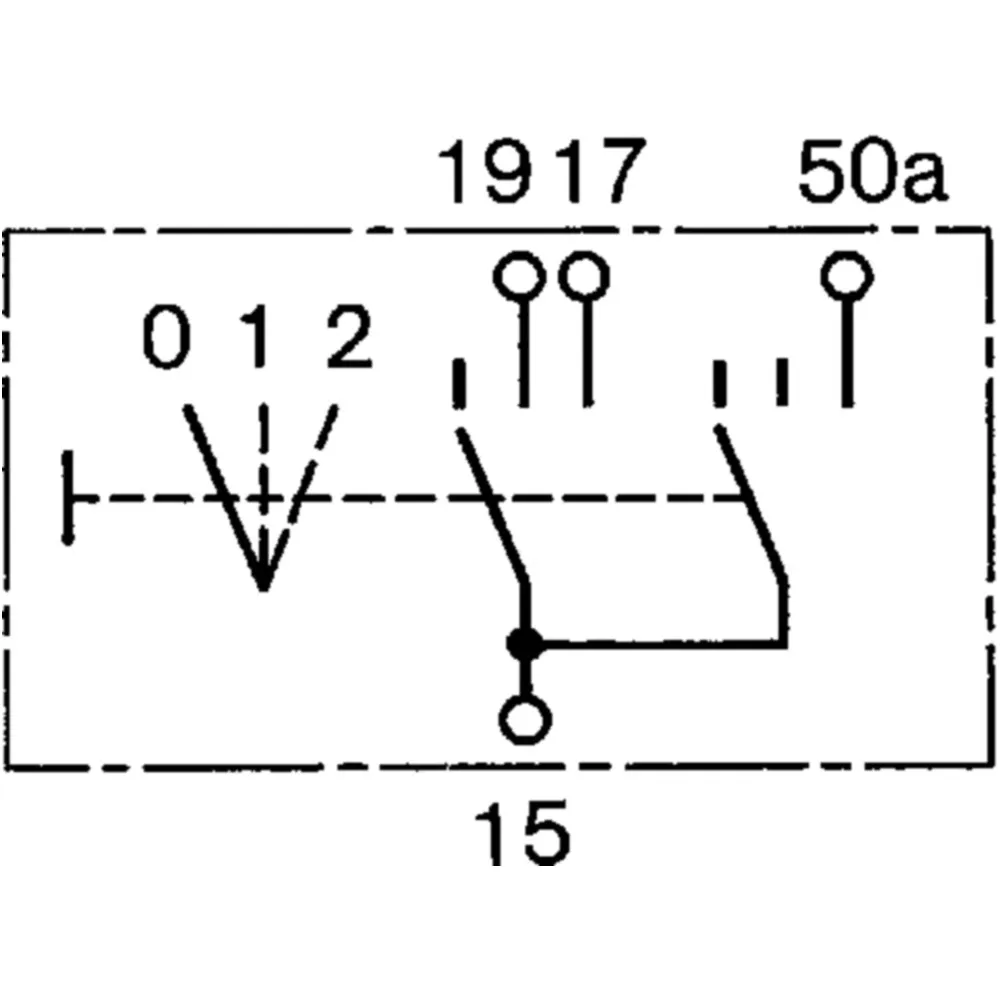

Switch positions: 3 (0 = off, 1 = preglow, 2 = start)

Connection type: Screw connection (screw terminals)

Mounting type: With hexagon nut M 10 x 1

Installation: Ø 10.5 mm, wall thickness up to 3 mm

Rated voltage: 12 / 24 V

Load capacity:

Terminals 17, 19: 50 A / 12 V and 27 A / 24 V

Terminals 50a: 12 A / 12 V and 9 A / 24 V

Duty cycle 2 min

Manufacturer Nr.: Bosch

EAN: 3165142605944
