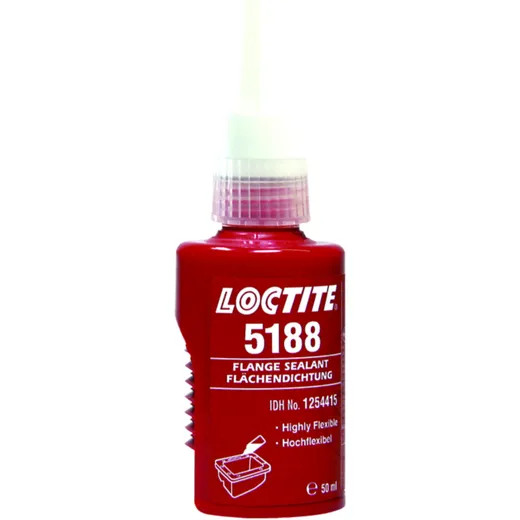

LOCTITE 5188 Face Seal Gasket, high-flexible anaerobic for metal flanges
LOCTITE® Surface Sealant 5188, highly flexible anaerobic
Liquid surface sealing product.
It is suitable for torsionally rigid metal flanges, e.g. on gearbox and engine housings, especially where minor oily contamination of the flange surfaces may occur.
It cures in the absence of air between close-fitting metal surfaces and is particularly suitable for aluminum parts, where very good adhesion is achieved.
Immediately after flange assembly, tightness to low pressures is achieved (immediate sealing effect).
With its extremely high flexibility, meets the requirements of the latest anaerobic surface sealing technology.
Loctite® 5188 achieves excellent bond strength and flexibility even after heat aging and can therefore be used for even the most demanding applications.
OEM manufacturers and suppliers have long benefited from the technical and economic advantages of anaerobic seals.
With Loctite® 5188, this technology has reached a new level.
This product can be applied by hand or dispensed automatically with suitable processing and dispensing equipment.
-
Highly elastic even after heat aging
-
Very good adhesion to metals, especially aluminum
-
Allows flange constructions with direct metal contact
-
Immediate sealing at low pressure
-
Excellent chemical resistance of the cured product
-
Oil tolerant
-
Can be used for many industrial and automotive applications. Typical applications include metal flanged joints, e.g. gearboxes, housings, etc.
-
Tolerates micromovements in highly loaded flanges
-
Suitable for lightweight flange designs
-
Controlled engineering tolerances
-
Allows inline leak testing
-
Suitable for oil and coolant contact
-
Ideal for engine compartment applications
-
Seals even with minor oily contamination
Color: red (fluorescent)
Temperature resistance: -55 to +150ºC
Strength: medium
Max. Gap: 0.25 mm
Hand strength (steel / aluminum): 25 / 10 minutes
Curing mechanism: Anaerobic
Chemical base: Methacrylate
Tensile shear strength on steel: 7 N /mm²
Tensile shear strength on aluminum: 8 N /mm²
Elongation at break: 180
Content: 50 ml
Manufacturer Nr.: Loctite 1254415
EAN: 5010266008912
Signal word: Warning
Hazard statement:
- H315 Causes skin irritation.
- H317 May cause an allergic skin reaction.
- H319 Causes serious eye irritation.
- H335 May cause respiratory irritation.
- H412 Harmful to aquatic life with long lasting effects.
Precautionary statement:
*** For private end users only: P101 If medical advice is needed,
have product container or label at hand. P102 Keep out of reach of
children. P501 Dispose of contents/container in accordance with national regulations. ***
Precautionary statement:
Prevention:
- P261 Avoid breathing vapors.
- P273 Avoid release to the environment.
- P280 Wear protective gloves.
Precautionary statement:
Response:
- P333+P313 If skin irritation or rash occurs: Get medical advice/attention.
- P302+P352 IF ON SKIN: Wash with plenty of soap and water.
- P337+P313 If eye irritation persists: Get medical advice/attention.
