DUAL-WALL HEAT SHRINK TUBING 19.1MM 3:1 for Motorcycles

DUAL-WALL HEAT SHRINK TUBING 19.1MM 3:1 for Motorcycles

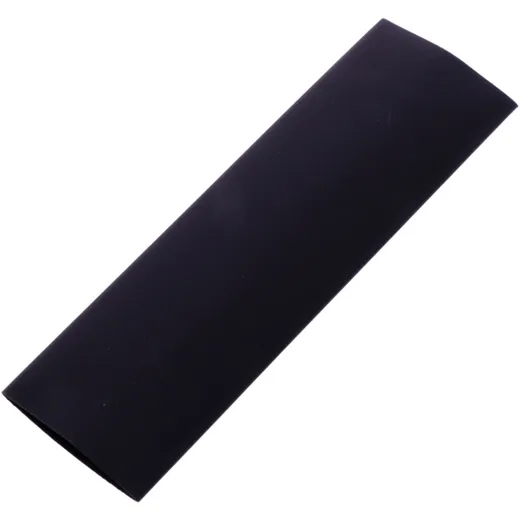

DOUBLE-WALLED 3:1 HEAT-SHRINK TUBING black JMP

• The double-walled heat-shrink tu from JMP is a flexible, flame-retardant polyolefin heat-shrink tu.
• This heat shrink tu produces little smoke, is abrasion resistant and dioxin free in the event of fire and has excellent electrical and physical properties, including excellent acid and corrosion resistance.
• Suitable for insulation applications in automotive electronics, cable lugs, small electrical components, motor and transformer cables, etc.
• This product is UL listed.

DIMENSIONS

• Piece length in cm: 10
• Before Ø in mm: 19.1
• After Ø in mm: 6.4

TECHNICAL SPECIFICATIONS

• Material: Polyolefin WITH additional adhesive film on the inside.
• Shrinkage ratio: 3:1
• Operating temperature: -55 ~ 125 °C
• Minimum shrink temperature: 70 °C
• Full shrink temperature: 120 °C

STANDARDS

• REACH and RoHS compliant
• Halogen free
• Flammability: UL1581 VW-1
• ISO9001
• IATF16949
• UL and CE certified

Manufacturer Nr.: JMP

EAN: 4043981449730
