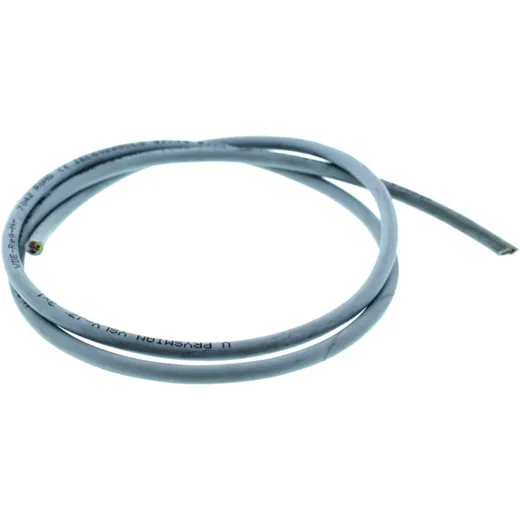

Flex Control Line JZ 3X1 for Vehicles

PVC control cable Flex-JZ 3 x1 mm²

- PVC control cable with VDE registration

- Isolation: special PVC

- Copper conductor: bare, fine-stranded wire

- Wire identification: black with white numbers, one wire green-yellow as protective conductor

- Number of wires: 3

- Cross section mm²: 1

- Temperature range in motion: -5 ° C ... 70 ° C

- Fixed temperature range: -40 ° C ... 80 ° C

- Sheath: special mixture based on PVC, flame retardant (IEC 60332.1), silver gray (RAL 7001)

- Outer diameter mm: 7.0

Application:

FLEX control cables are suitable for use in mechanical engineering, plant construction, in power plants and in heating and air conditioning technology. The cables are primarily suitable for laying in dry, damp or wet rooms, especially under industrial ambient conditions. The cable may only be laid outdoors with UV protection and in compliance with the temperature range.

Special feature:

FLEX control cables are largely resistant to oil and chemicals. They are robust and easy to bend. The high-quality PVC insulation and jacket materials enable optimal small outside diameters and thus reduced space requirements. The wire insulation meets the highest demands of electrical and mechanical type. The high test voltage of 4000 V AC stands for the highest insulation reliability.

Manufacturer Nr.: JM-Products 1070215

EAN: 4035996035909
