LED-DULUX EM/AC 6W G23 Base Lamp

LED-DULUX EM/AC 6W G23 Base Lamp

LEDVANCE DULUX LED S EM & AC MAINS V 6W 840 G23

• LED replacement for short KLLni, with 2-pin.
• G23 plug-in base for operation on CCG or mains voltage.
• Product features: LED replacement for conventional compact fluorescent lamps in CCG luminaires or on mains voltage.
• Service life: up to 30,000 h. Single-sided 2-pin plug-in base G23.
• Protection class: IP20.
• Mercury-free lamps.

Product advantages:

• Simple installation.
• Low energy consumption.
• Easy lamp replacement thanks to compact design.
• Can be operated directly on 230 V mains voltage.

Areas of application:

• General lighting in ambient temperatures of -20...+45 °C.
• Supermarkets and department stores.
• Corridors and aisles.
• Hotels, restaurants.

Features:

• Color temperature 4000 K
• Color rendering index CRI 80-89
• Color consistency (McAdam ellipse) SDCM6
• Protection class (IP) IP20

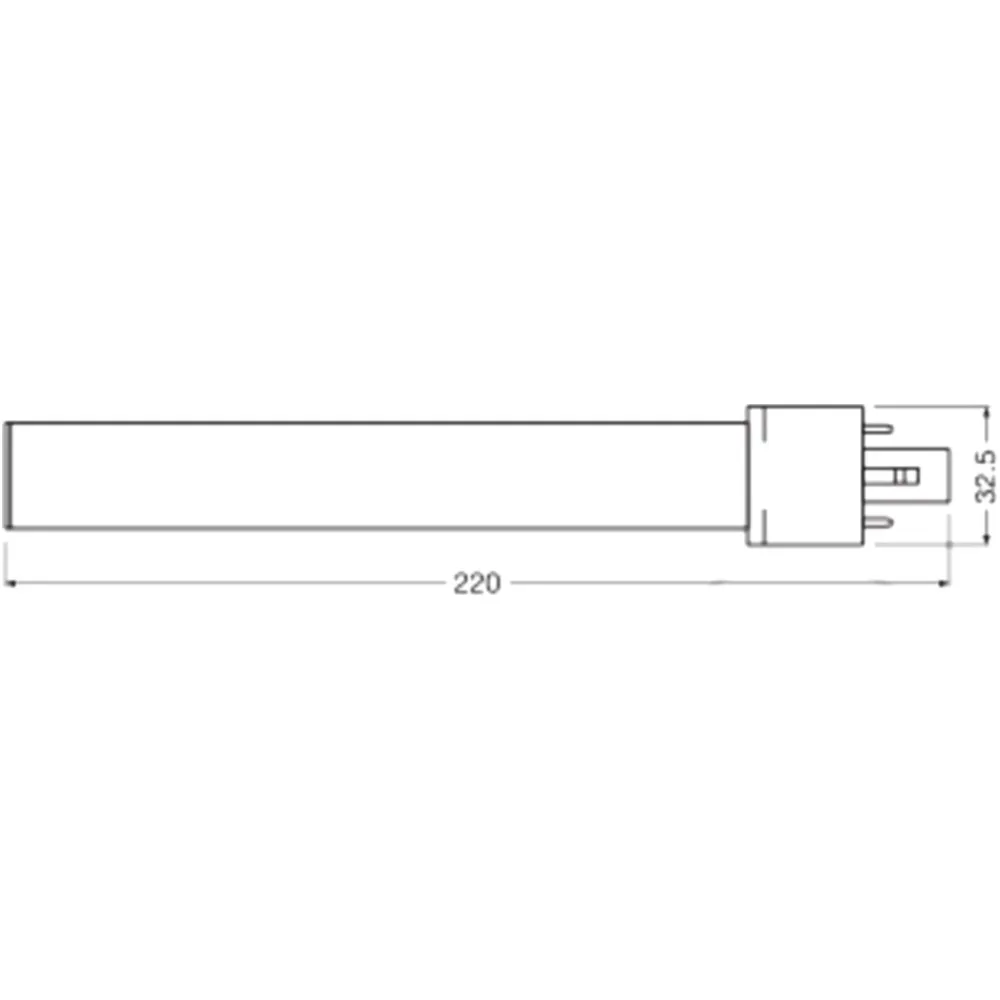

• Length 220 mm
• Voltage type AC
• Nominal voltage 220 V
• Housing color white
• Distortion factor (THD) 30
• Photobiological safety according to EN 62471 RG0
• Packaging unit 1
• Packaging unit 10
• Weight 0.07
• Weight unit KG
• Weight reference quantity 1
• Color white
• Base G23
• Diameter 32.30 mm
• Lamp luminous efficacy 116 lm/W
• Lamp shape Tube, single-ended
• Light color according to EN 12464-1 neutral white 3300 to 5300 K
• Glass/cover design frosted
• Average rated service life 30000 h
• Rated current 28 mA
• Weighted energy consumption in 1,000 hours 6 kWh
• Lamp wattage 6 W
• Luminous flux 700 lm
• Min. number of switching operations 200000
• Beam angle 120 °
• Rated luminous flux according to IEC 62612 700 lm
• Energy spectrum A - G
• Energy efficiency class according to EU Directive 2019/2015 E

Manufacturer Nr.: Ledvance 35021656

EAN: 4058075823037
