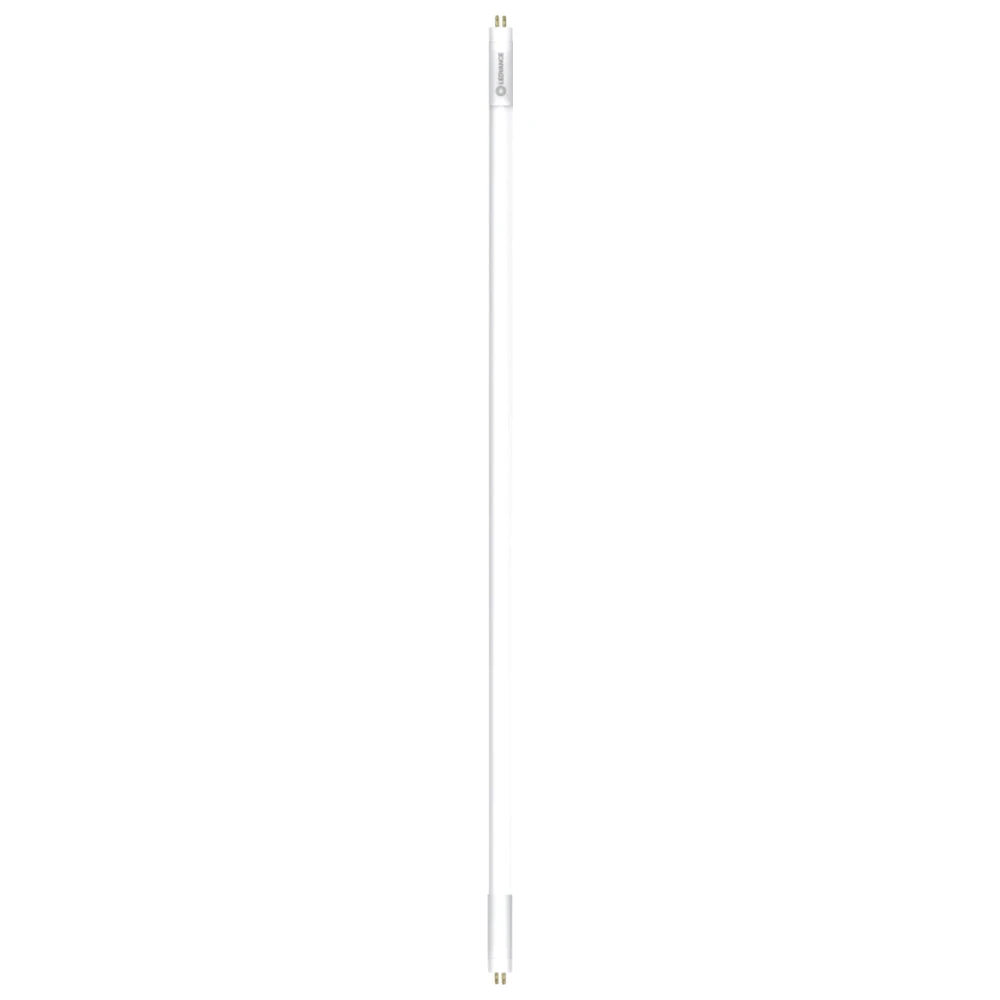

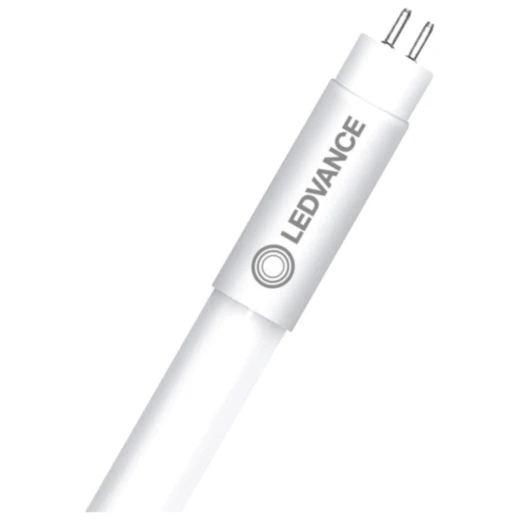

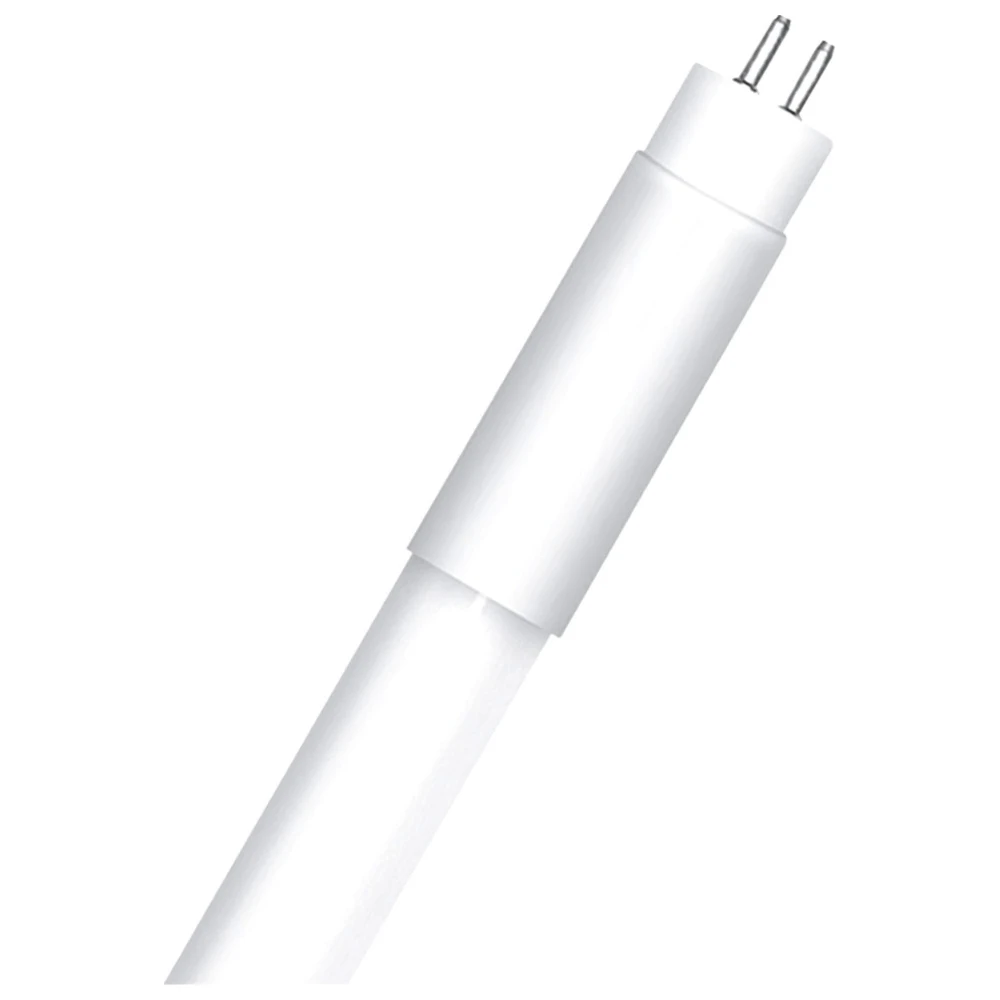

LED T5 Tube 4W 840 for Electronic Ballasts

LED T5 Tube 4W 840 for Electronic Ballasts

LEDVANCE LED TUBE T5 HF SHORT V 288 mm 4W 840

• LED tubes for electronic control gear (ECG), splinter protection.
• Product features: Retrofit replacement for existing T5 lamps on HF ballasts.
• Glass lamp tube with splinter protection.
• High color consistency: ≤ 5 sdcm (threshold unit).
• Service life up to 30,000 h.
• Low flicker according to EU 2019/2020 (SVM ≤ 0.4 / PstLM ≤ 1).
• Protection class: IP20.
• Compatible with many commercially available electronic ballasts (see also <a href="https://www.ledvance.de/niedervolt-led-lampen">compatibility list</a>).

Product advantages:

• No sagging thanks to glass technology. Simple, quick and safe lamp replacement without rewiring.
• Also suitable for operation at low temperatures.
• Please observe all safety instructions.

Areas of application:

• General lighting in ambient temperatures of -20...+45 °C.
• Public buildings.
• Kitchens.
• Under-cabinet lighting.

Legal notice:

• When replacing with a T5 fluorescent lamp, the overall energy efficiency and light distribution depend on the design of the system.

Safety instructions:

• Use in outdoor applications is possible in suitable damp-proof luminaires in accordance with the data sheet and installation instructions.
• The operating temperature range of the LED tube is limited.
• If in doubt about the suitability of the application, please measure the Tc temperature on the product before installation.
• Not suitable for emergency lighting.

Manufacturer Nr.: OEM: 35033987

EAN: 4099854552427
