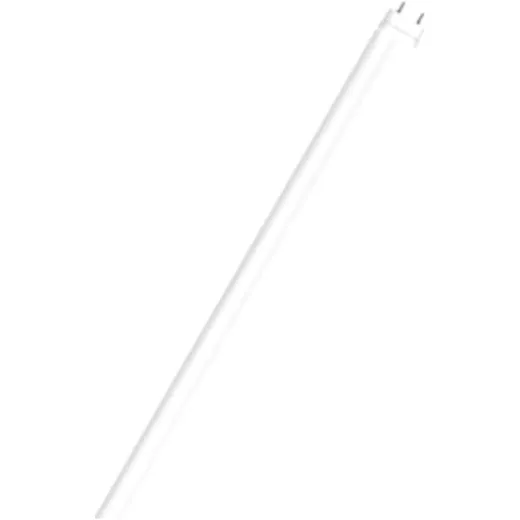

OSRAM LED Tube T8 23W/840 for general lighting

OSRAM LED Tube T8 23W/840 for general lighting

OSRAM ST8PROU-1.5M 23W/ 840 220-240V UN

• LED tubes for electronic ballasts (EBs), electromagnetic ballasts (ECGs) and mains voltage, splinter protection.
• T8 glass LED tube with G13 base.
• Compatible with conventional and many commercially available electronic ballasts (see also compatibility list) and line voltage.
• Low flicker according to EU 2019/2020.
• Lamp tube made of glass with shatter protection for applications e.g. in the food industry.
• Mercury free and RoHS compliant.
• Protection class: IP20.
• Service life: up to 60,000 h.

Product advantages:

• No sagging thanks to glass technology.
• Splinter protection thanks to special PET coating.
• Also suitable for operation at low temperatures.
• High luminous flux for demanding lighting tasks.
• Easy installation.

Fields of application:

• General lighting in ambient temperatures from -20...+45 °C.
• Supermarkets and department stores.
• Industry.

Technical data:

• Color temperature 4000 K
• Color rendering index CRI 80-89
• Color consistency (McAdam ellipse) SDCM5
• Protection class (IP) IP20
• Length 1513.10 mm
• Voltage type AC
• Rated voltage 220 V
• Power factor 0.90
• Housing color white
• Photobiological safety according to EN 62471 RG0
• Weight unit 0,27
• Weight unit KG
• Weight reference quantity 1
• Color white
• Base G13
• diameter 27.80 mm
• Energy efficiency class C
• Finish glass/cover frosted
• Average rated life 60000 h
• Weighted energy consumption in 1,000 hours 23.00 kWh
• Lamp wattage 23 W
• Lamp shape Tube, double-ended
• Energy spectrum A - G
• Lamp luminous efficacy 160 lm/W
• Light color according to EN 12464-1 neutral white 3300 to 5300 K
• Rated current 125 mA
• Luminous flux 3700 lm
• Lamp designation T8
• Min. number of switching operations 200000
• Beam angle 190.00 °
• Energy efficiency index (EEI) 0.09
• Rated luminous flux according to IEC 62612 3700 lm

Only in conjunction with an electronic ballast.

No starter is required.

Manufacturer Nr.: Osram 35021139

EAN: 4099854026577
