24 V 4-pole Closing Relay for Motorcycles

24 V 4-pole Closing Relay for Motorcycles

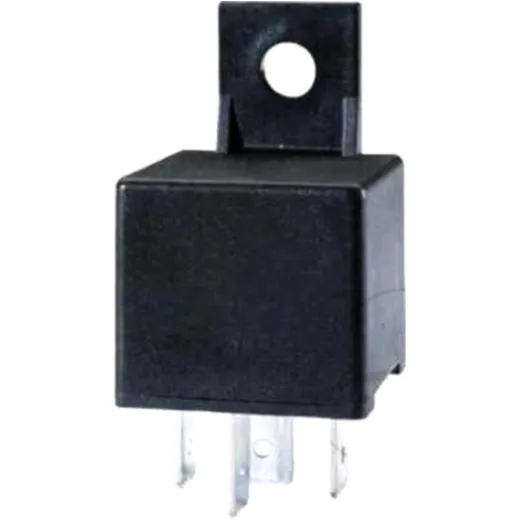

HELLA Working current relay 4-pole, 24 V

• Power Minirelais with holder
• With parallel resistance to coil
• Closes the circuit between the power source and an electrical load
• Application: Main headlights, auxiliary headlights, horns, heaters, fan motors and window lifters, air-conditioning and ignition systems, etc.

Technical specifications

Rated voltage: 24 volts

Switch function: NO contact

Power handling at 24V: 20A

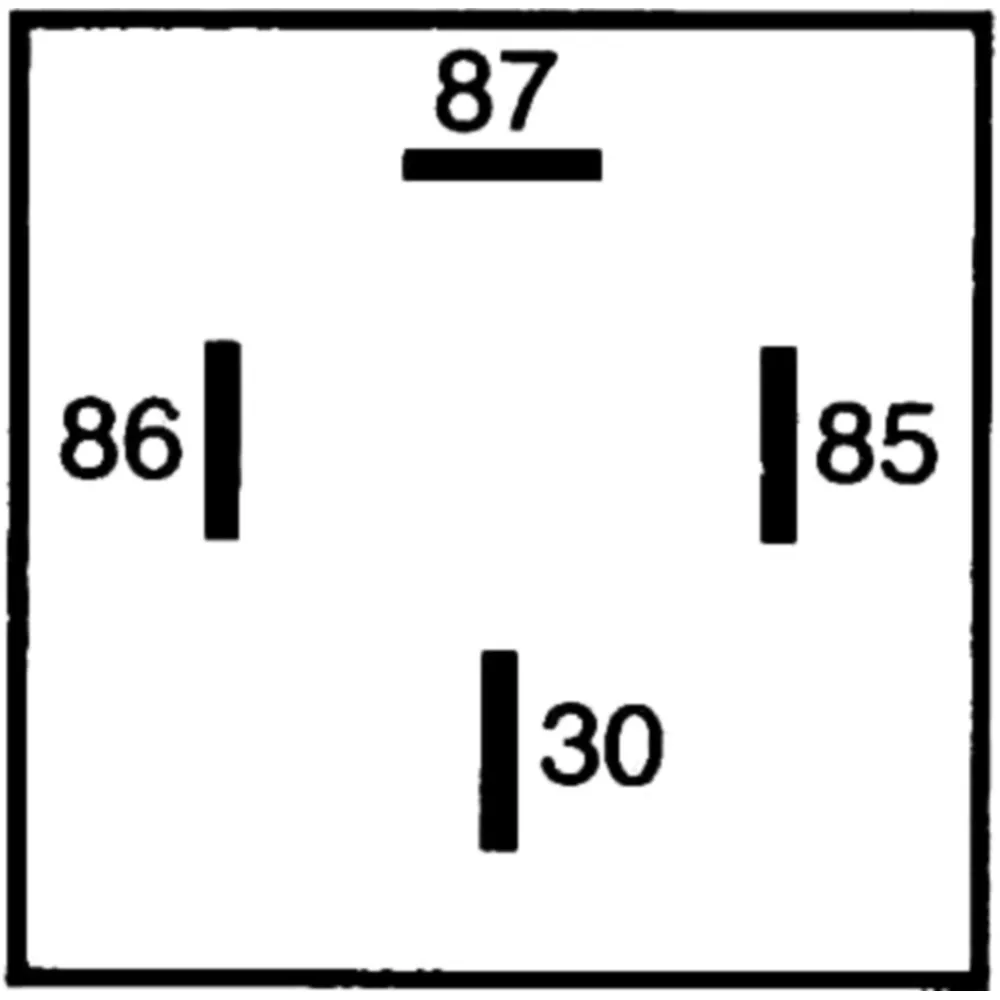

Connector design ID: B

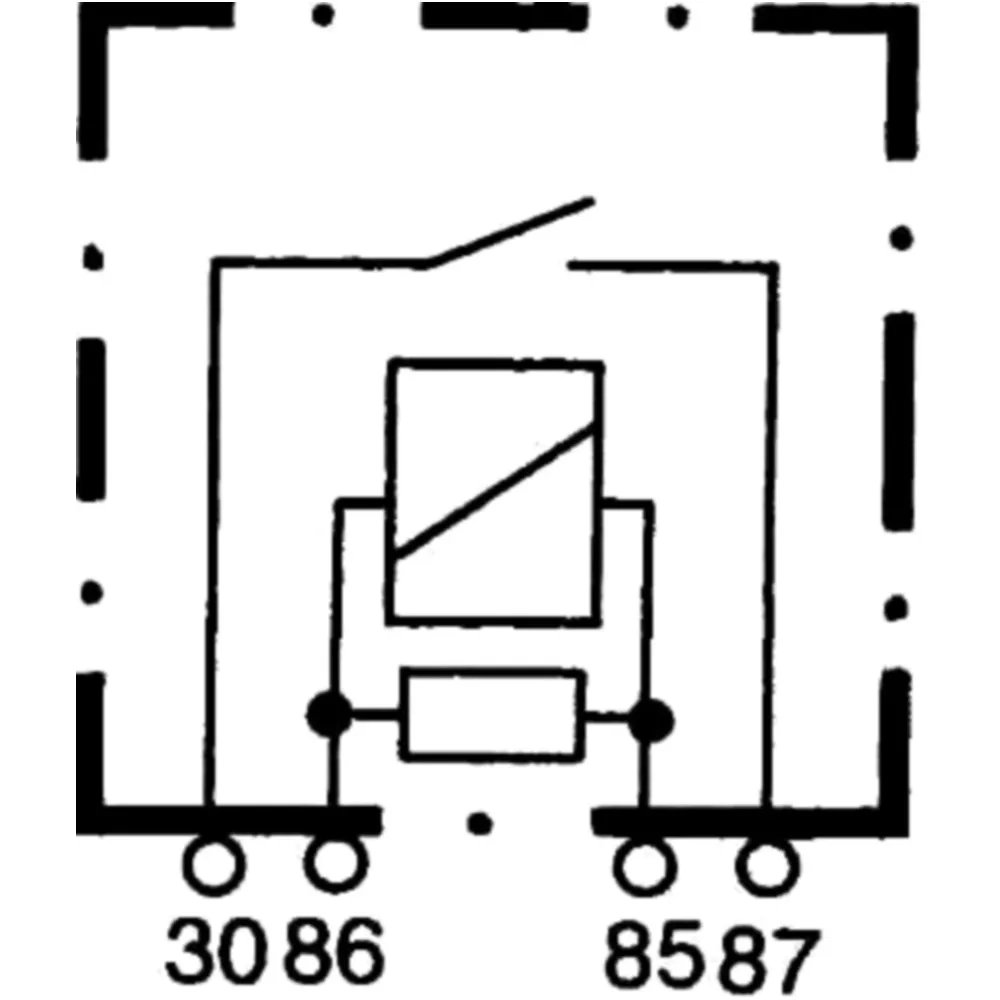

Wiring diagram: S2

Temperature range, max: 80 ° C

Power handling (at +80 ° C) Closing contact

Ohmic load: 20 A

Inductive load: 16 A

Capacitive load: 15 A

Manufacturer Nr.: Hella 4RA 007 957-011

EAN: 4082300078749
