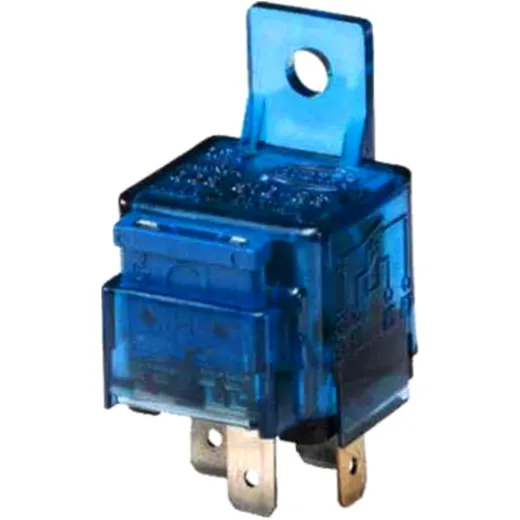

24V Working Current Relay, 4-pole

HELLA Working current relay 4-pole, 24 V

• Minirelais with holder, fuse safety insert 15A and flat plug connections 6.3 mm

• With parallel resistance to coil

• Closes the circuit between the power source and an electrical load

• Application: Main headlights, auxiliary headlights, horns, heaters, fan motors and window lifters, air-conditioning and ignition systems, etc.

• without safety insert

Technical specifications

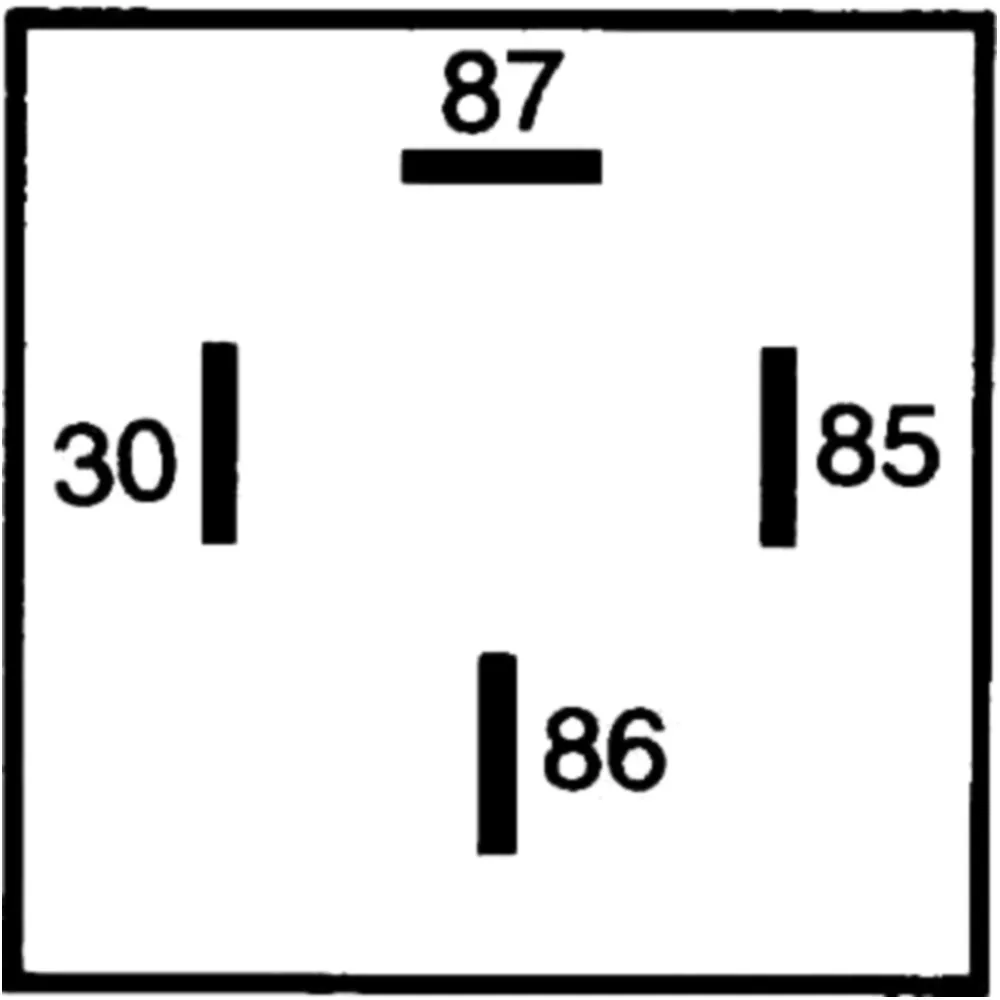

Connector design ID: A

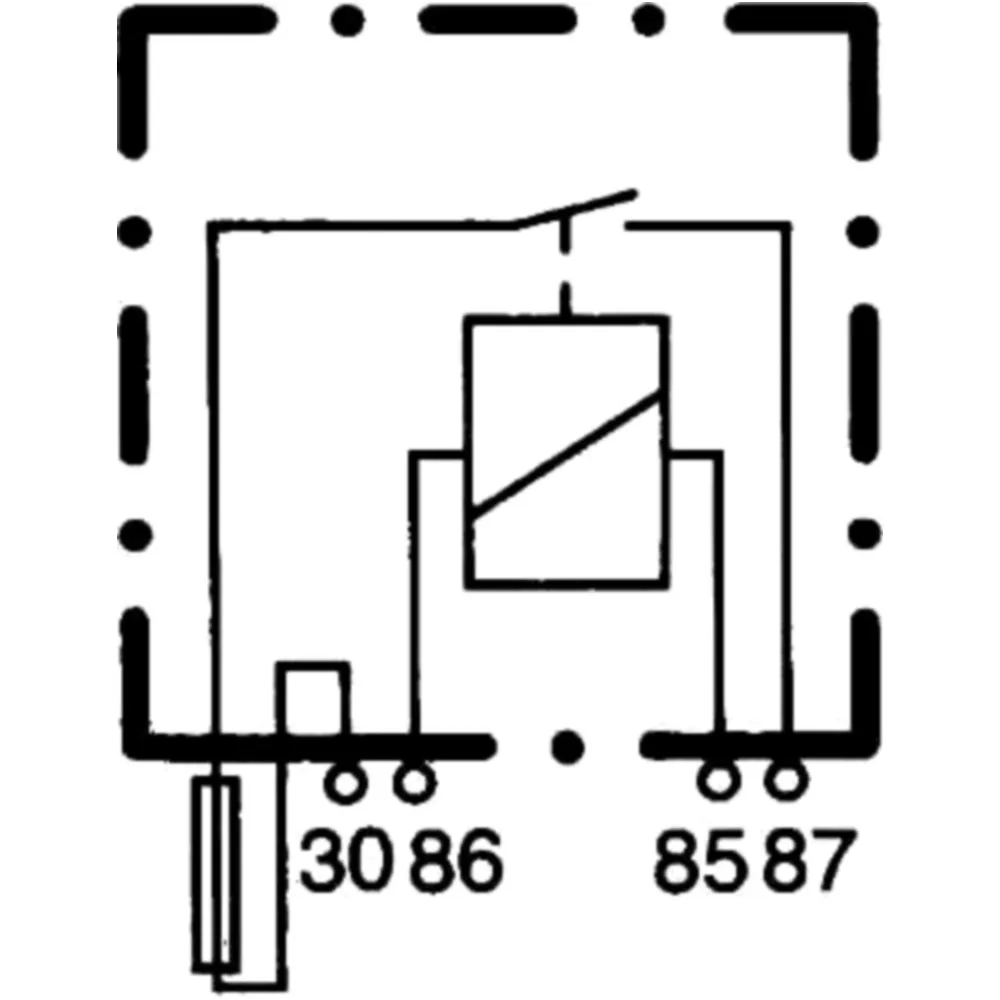

Wiring diagram: S10

Temperature range, max .: 80 ° C

Power handling (at +80 ° C) Closing contact

Ohmic load: 15 A

Manufacturer Nr.: Hella 4RA 003 530-051

EAN: 4082300281576
