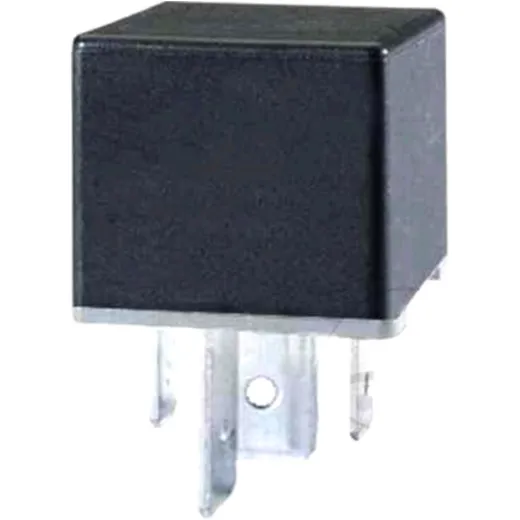

4-Pole Working Current Relay 12V, Power Mini Relay for Various Models

HELLA Operating current relay 4-pole, 12 V

• Power Minirelais without holder

• With parallel resistance to coil

• Closes the circuit between the power source and an electrical load

• Application: Main headlights, auxiliary headlights, horns, heaters, fan motors and window lifters, air-conditioning and ignition systems, etc.

Technical specifications

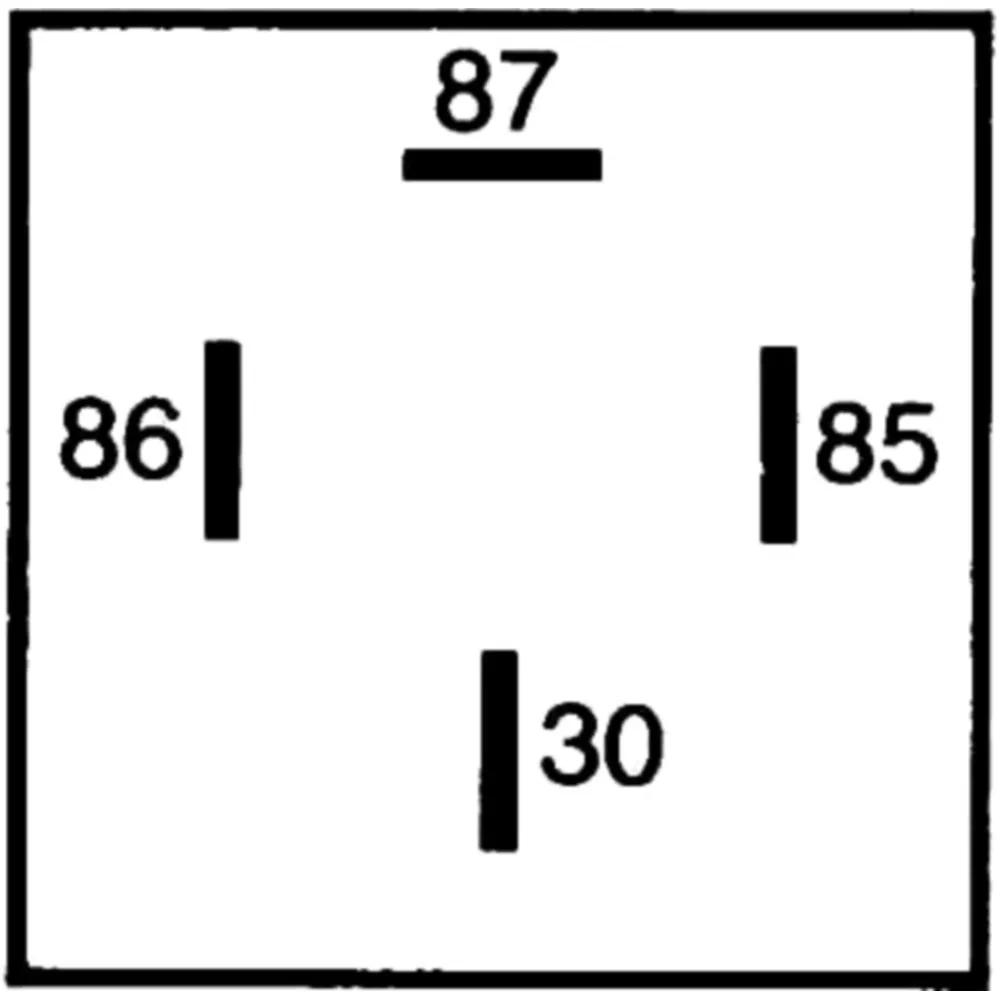

Connection type: with 2 flat plug connections 6,3 mm and 2 flat plug connections 9,5 mm (terminals 30 and 87)

Connector design ID: B3

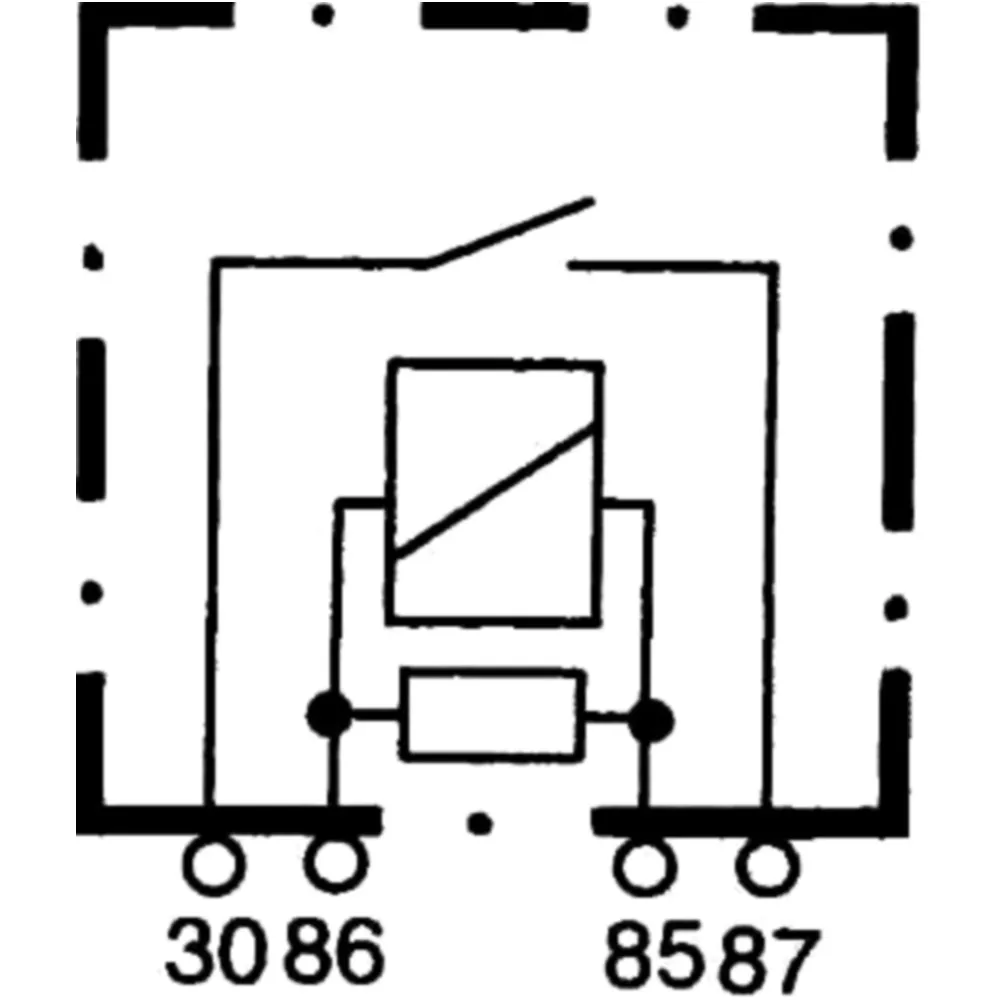

Wiring diagram: S2

Temperature range, max: 80 ° C

Power handling (at +80 ° C) Closing contact

Ohmic load: 50 A

Inductive load: 46 A

Capacitive load: 44 A

Manufacturer Nr.: Hella 4RA 007 793-031

EAN: 4082300078671
