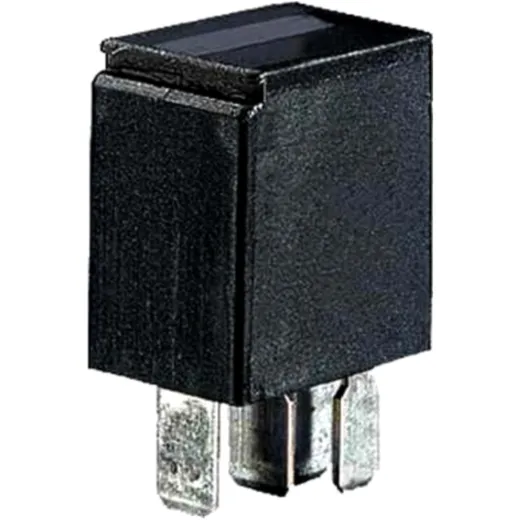

5-Pin Changeover Relay 12V

HELLA 5-pole normally open relay, 12 V

• Mini relay without holder

• With parallel resistor to the coil and blade connectors

• Closes the circuit between the power source and an electrical load

• Application: headlights, auxiliary headlights, horns, heaters, fan motors and windows, air conditioning and ignition systems, etc.

Technical specifications

Connection type: 3 flat plug connections 4.8 mm and 2 flat plug connections 6.3 mm (terminals 3 and 5)

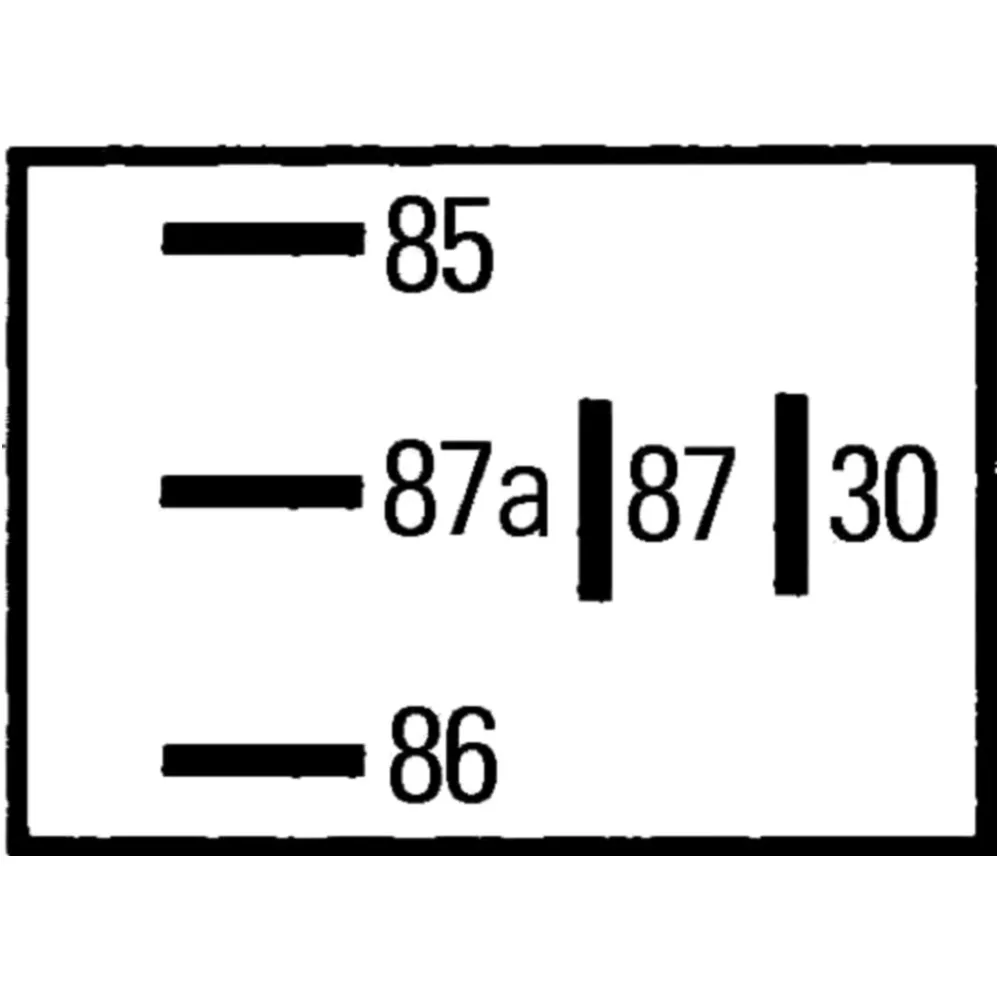

Plug Type ID: C1

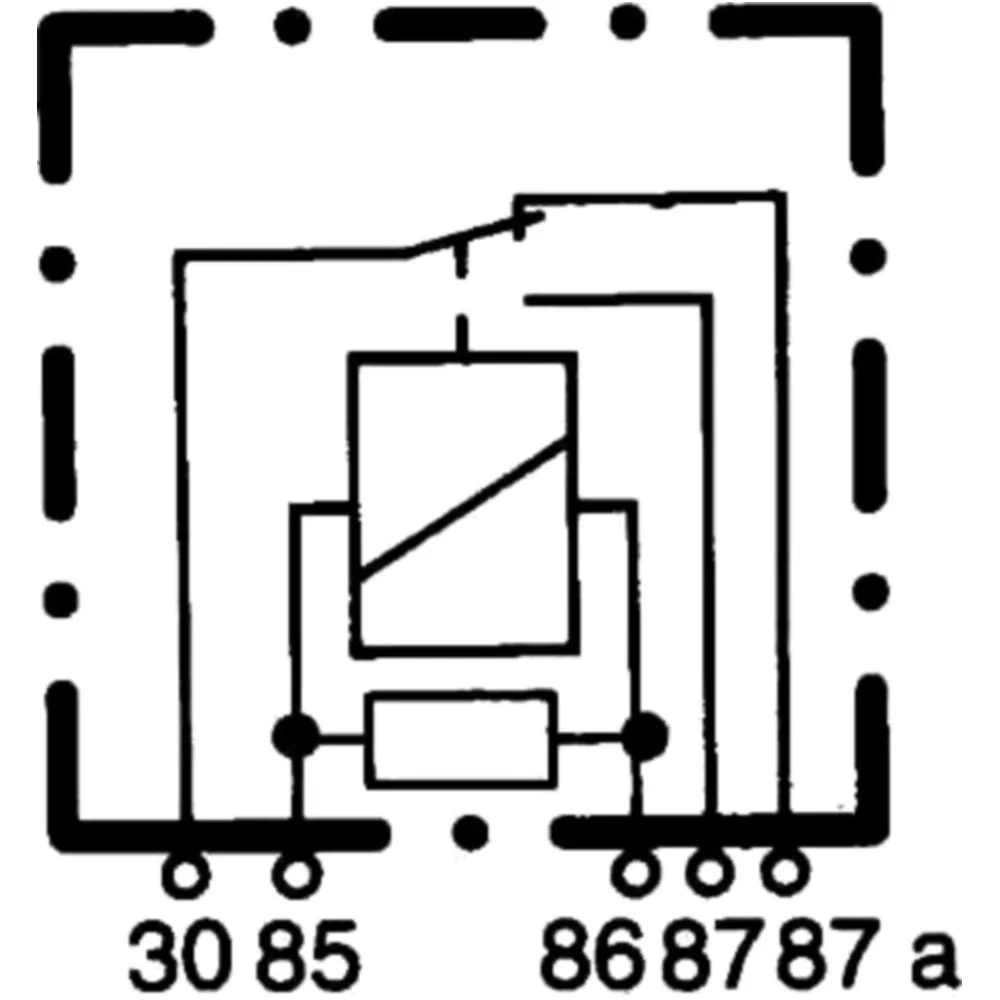

Wiring diagram: W2

Temperature range, max: 80 ° C

Load capacity (at +80 ° C), normally closed contact

Ohmic load: 10 A

Inductive load: 11 A

Capacitive load: 10 A

Load capacity (at +80 ° C) normally open contact

Ohmic load: 20 A

Inductive load: 11 A

Capacitive load: 20 A

Manufacturer Nr.: Hella 4RD 965 453-041

EAN: 4082300576092
