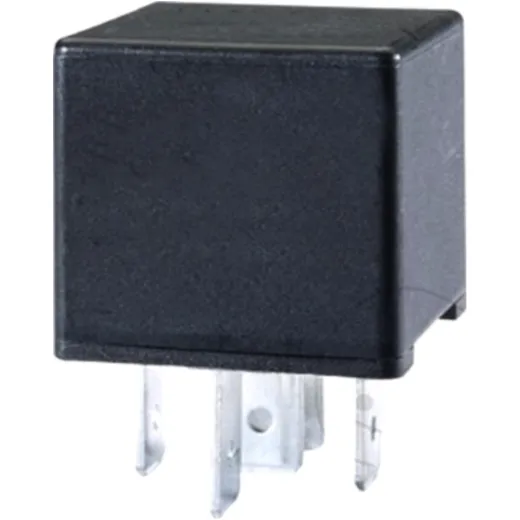

Change Over Relay 24V 20A 5 Pin with Resistor

Change Over Relay 24V 20A 5 Pin with Resistor

HELLA Operating current relay 5-pole, 24 V

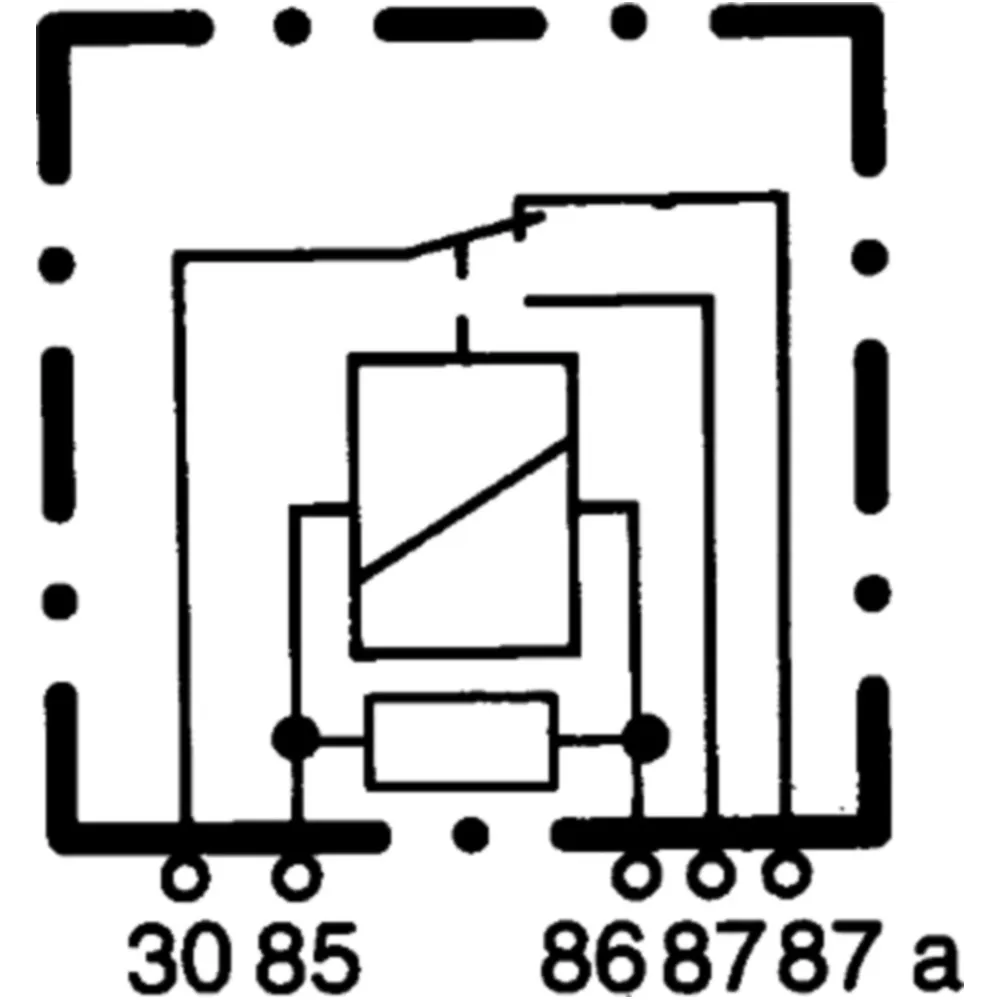

• With parallel resistance to coil
• Closes the circuit between the power source and an electrical load
• Application: Main headlights, auxiliary headlights, horns, heaters, fan motors and window lifters, air-conditioning and ignition systems, etc.

Technical specifications:

Weight: 25 g

Inductive load: 5 A

Capacitive load: 5 A

Rated current: 20 A

Ohmic load: 20 A

Temperature range: -40 ° C

Temperature range up to: 125 ° C

Manufacturer Nr.: Hella 4RD 933 332-611

EAN: 4082300688535
