Change Over Relay 5-Pol 12 V for Multifunctional Use

Change Over Relay 5-Pol 12 V for Multifunctional Use

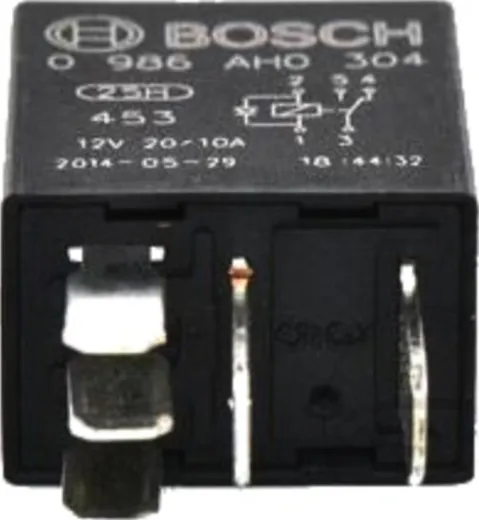

Bosch shunt relay / multifunction relay, 5-pole, 12 V.

• Mini relay without holder
• With blocking diode
• Closes the circuit between the power source and an electrical consumer
• Area of application: main headlights, additional headlights, horns, heaters, fan motors and window lifters, air conditioning and ignition systems, etc.

Technical specifications:

• Nominal voltage: 12 volts
• Nominal current: 20 A.
• Number of poles: 5-pole
• Relay function: three-phase generator
• Switch function: without wiping function
• Temperature range: -40 to +100 ° C
• Protection class for housing and terminals in general: IP 20
• Degree of protection for socket housings with connector plug installation position below: IP 5K4

Manufacturer Nr.: Bosch

EAN: 4047024946613
