CLOSING RELAY 24V 20A 4 PIN INCL HOLDER for Motorcycles

CLOSING RELAY 24V 20A 4 PIN INCL HOLDER for Motorcycles

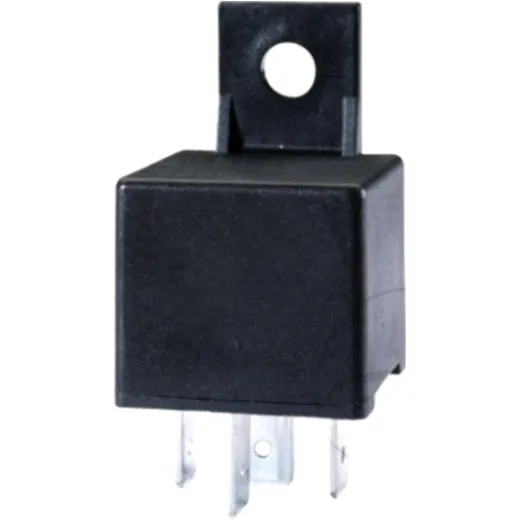

HELLA normally open relay 4-pole, 24 V

• Power miniature relay with holder
• With parallel resistor to the coil
• Closes the circuit between the power source and an electrical load
• Application: headlights, auxiliary lights, horns, heaters, fan motors and windows, air conditioning and ignition systems, etc.

Technical specifications:

Inductive load: 5 A Capacitive load: 5 A

Rated current: 20 A Ohmic load: 30 A Rated voltage: 24V

Switch function: NO contact Temperature range of: -40 ° C Temperature range up to: 125 ° C

Manufacturer Nr.: Hella 4RA 965 400-101

EAN: 4082300688399
