12V Shift Cable Switch with Indicator Light

12V Shift Cable Switch with Indicator Light

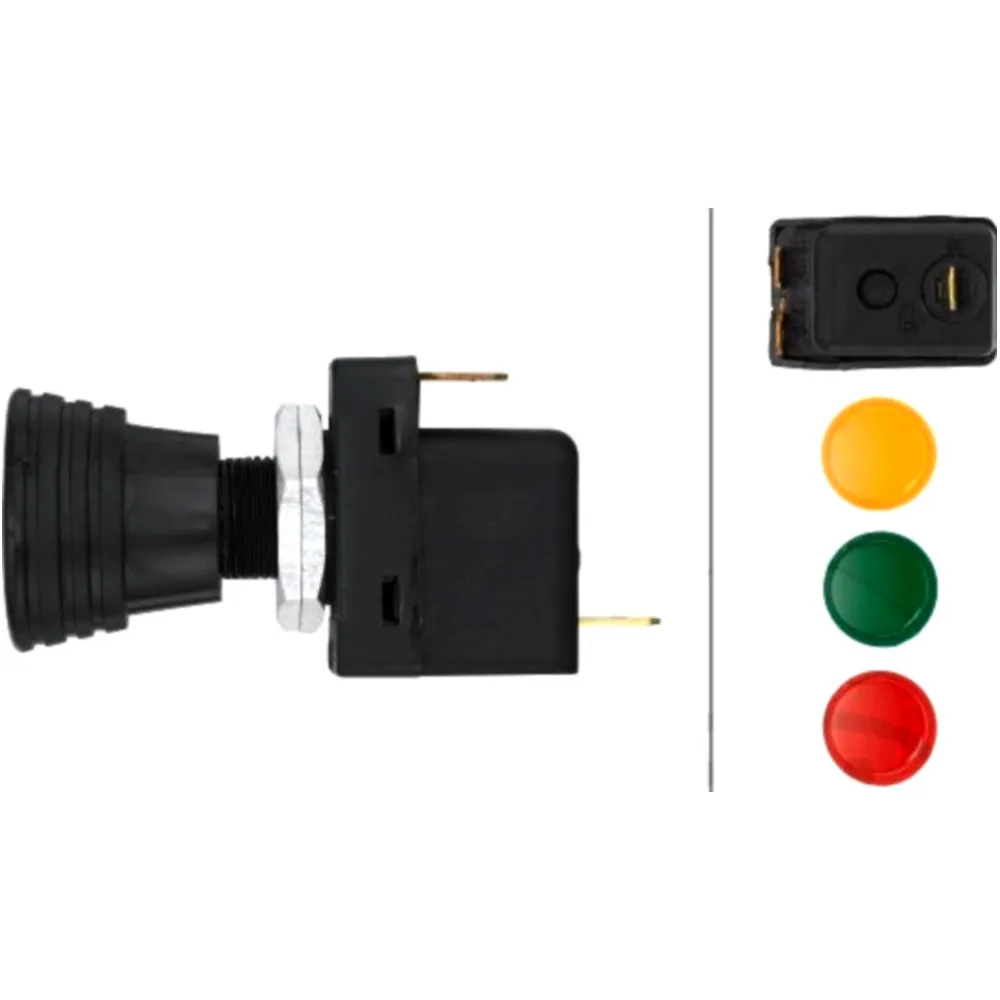

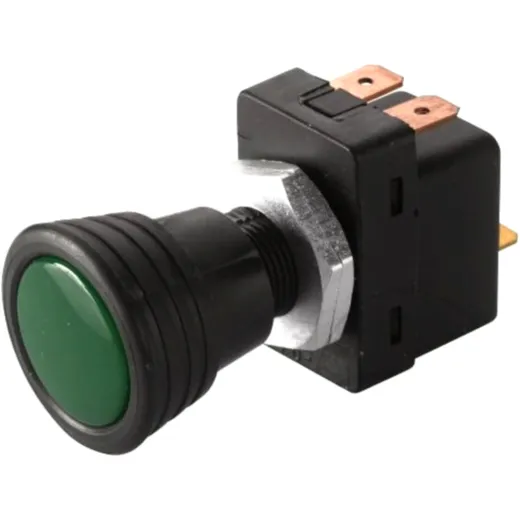

Hella pull switch with green indicator light and 12V bulb

• Universal pull switch
• Safety switch button made of soft plastic
• Optional switch-on control or location control of terminals 15 and K. 2
• With built-in 12V bulb
• Including one red and one orange light disk (replaceable) each

Type of actuation: Pull actuation

Switch function: on/off switch

Mounting type: flat plug connection 6.3 mm, screwed

Number of connections: 3

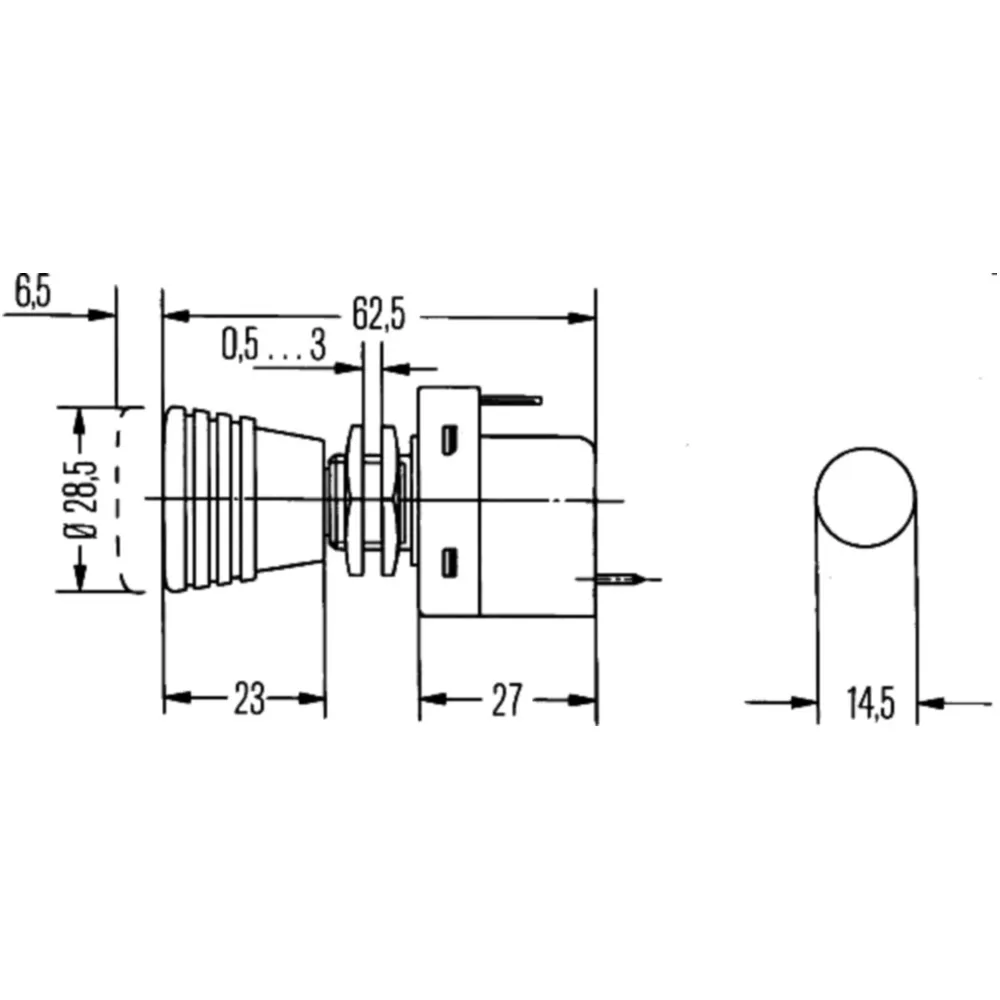

mounting hole: 14,5 mm

Switch positions: 2 (0 = off, 1 = on)

Rated voltage: 12 / 24 V

Load capacity at 12 V / 24 V: 8 / 4 A

Lamp type: W1,2W

Packing unit: SB folding box

Manufacturer Nr.: Hella 6ED 004 778-001

EAN: 4082300008630
