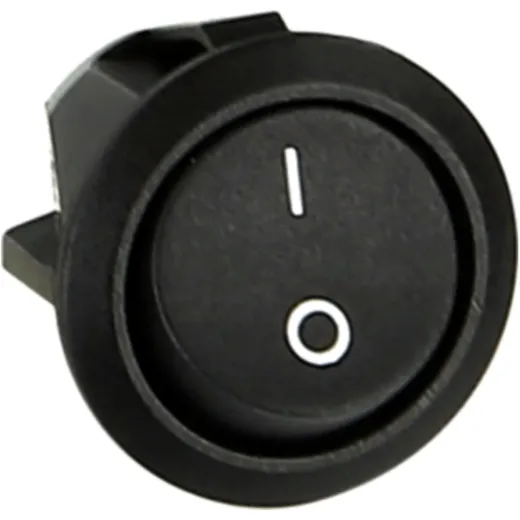

Round ON/OFF Switch Black for Motorcycles

Round ON/OFF Switch Black for Motorcycles

Switch ON/OFF black

• Type: OFF-ON SPST 1P
• Rocker: black imprint I/O

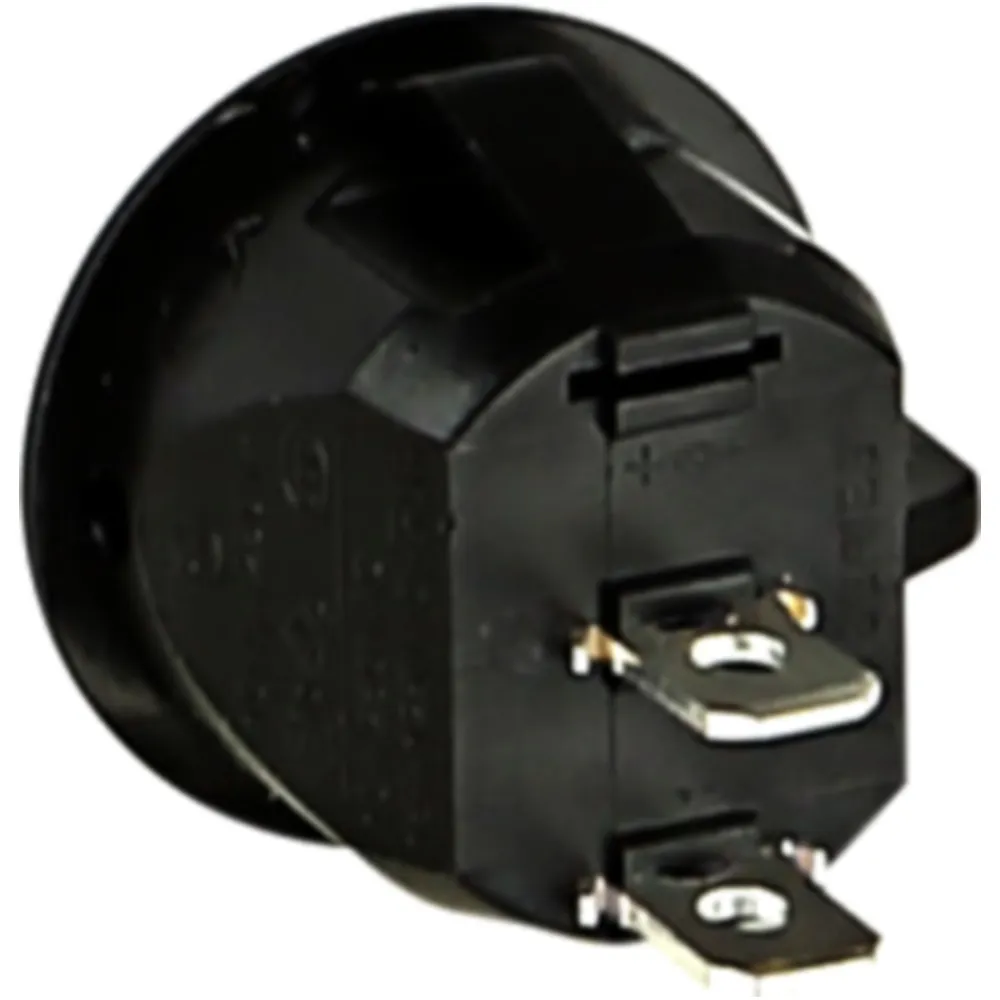

• Connection: flat plug 4.8mm
• Hole: Ø 20mm

Technical data:

• Switching capacity: 10A/250Vac, 15A/125Vac
• Electrical life: 10000 cycles at max.load
• Mechanical life: 30000 cycles
• Contact resistance: 20 Mohm
• Insulation resistance: min. 1000 Mohm
• Dielectric strength: 1500Vac / 1 minute

Material:

• Housing: nylon PA66
• rocker: nylon PA66 + polycarbonate
• moving contacts: copper, silver plated
• static contacts: copper, silver plated
• terminals: Copper, silver plated
• contact: with return spring

Manufacturer Nr.: ACV

EAN: 4026724336498
