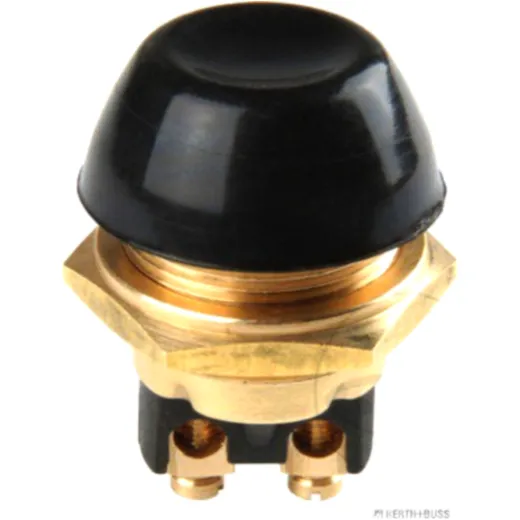

Saltwater-resistant Push Button Switch for Wipers and Signal Equipment

Saltwater-resistant Push Button Switch for Wipers and Signal Equipment

Herth+Buss push-button switch / push-button switch

• With splash protection cap and silver contacts
• Spring return
• Metal parts made of brass
• Salt water resistant
• Suitable for wipers, signal devices, fog lights, brake light switches, window regulators, etc.

Technical data:

• Actuation type Push-button actuation
• Switch function: NO contact / on/off switch / start
• Load capacity at 24V: 10 A
• Load capacity at 12V: 15 A
• Voltage: 6 - 32 V
• Power consumption: 250 W
• Material: Brass
• Connection technology: 2 x M3 S
• Plug design: Screw contact
• Mounting type: With hexagon nut
• Mounting type: Surface-mounted
• Up to wall thickness: 9 mm
• Installation diameter: 22 mm
• Protection class (IP code): IP 54

OE no. (for comparison purposes only):

• DAF: 866289
• DEUTZ-FAHR: 06257821
• FENDT: 581 095 900 001
• Ford: V77G11523AA
• JOHN DEERE: AL25051 / AZ29695
• KHD: 01262863 / 126 2863
• MAN: 81 25505 0081
• Mercedes-Benz: A0015457411 / A0025459814 / 0015457411 / 0025459814
• Smart: A0015457411 / A0025459814
• Volvo: 30635061

Manufacturer Nr.: Herth & Buss 70468080

EAN: 4026736051174
