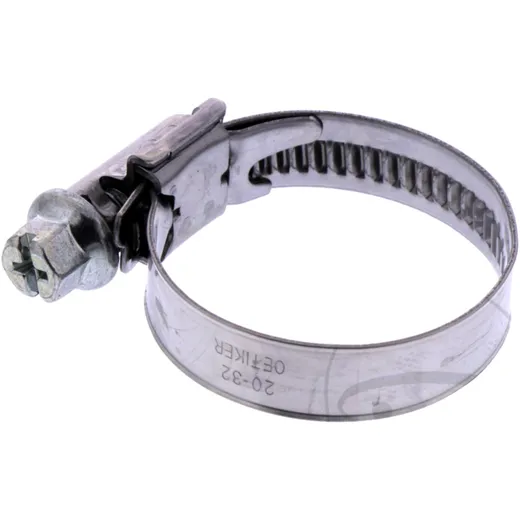

JUBILEE CLIP WD9 20-32 C7W2 STAINLESS STEEL

Oetiker screw thread clamp W2 (type 126)

• Strap and housing made of stainless steel, hexagon screw (SW7) with cross recess (Phillips) made of galvanized steel

• Technically sophisticated multi-range hose clamp with a very large clamping range

• Compliant with DIN 3017: tested clamp band, large clamping range, high holding forces

• The short housing saddle ensures even force distribution with good sealing

• A weldless housing connection for a secure connection and good corrosion resistance

• Flanged band edges reduced the risk of damage to the setting material

• Made by cold working, it has a slightly spherical shape

• The height of the threads decreases on both sides, the full thread cross-section is in the middle

Diameter range: 20 - 32 mm

Band width: 9 mm

Band thickness: 0.6 mm

Material: 126 W2, material no. 1.4016 / US S43000

Reference no .: WD9 20-32 C7 W2

Screw head profile: hexagon cross recess

Carton unit: 100

Manufacturer Nr.: Ötiker 12600454
