Leak Test Kit for Air Conditioning R134-1234YF

Leak Test Kit for Air Conditioning R134-1234YF

According to the Chemicals Climate Protection Ordinance (EC Regulation No.307/2008) Directive 2006/40 EC

an empty (depressurized) or leaking air conditioning system must not be filled with refrigerant for leak detection.

The workshop is legally obligated to first eliminate the leakage of the air conditioning system.

Otherwise, the refrigerant can escape unhindered through a leak in the air conditioning circuit,

and thus harm the environment. If workshop operators do not comply with this regulation, they could face fines of up to €50,000.

Our solution:

Leak test the air conditioning system with nitrogen or forming gas and the air conditioning leak test kit.

The leak test kit can be used for the test medium nitrogen and forming gas.

Can be used for R 134 a and YF 1234 refrigerants.

The appropriate connection for the refrigerant is selected by means of a 3-way valve.

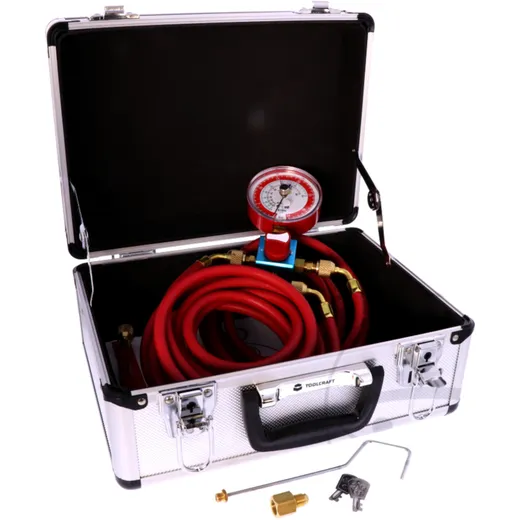

Content:

3 x 1.8 m high pressure lineHigh quality high pressure quick connector R 134 a for connection to the air conditionerHigh quality high pressure quick connector YF 1234 for connection to the air conditioner3-way valve with pressure gauge for evaluation of pressure drop Operating instructions Aluminum case

Necessary accessories depending on the application :

Flat pressure reducer for forming gas 656 20 60

Cylinder pressure reducer for nitrogen 656 05 94

Connection adapter G 1/4"- SAE 1/4" 650 02 36

for nitrogen Cylinder pressure reducer

Manufacturer Nr.: Matthies 6503000
