2er Maintenance Unit G1/2 16 bar for EWO

ewo medium maintenance unit, standard series

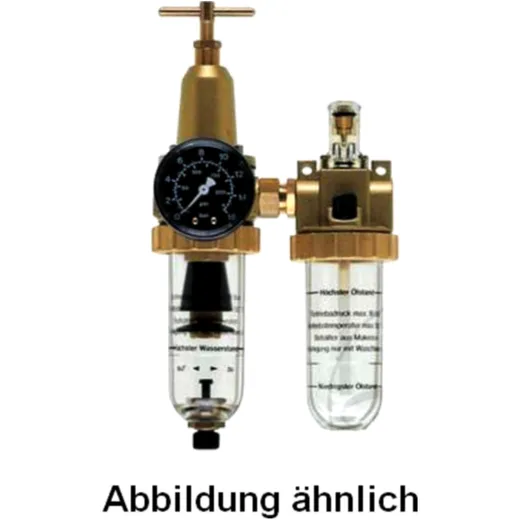

• Service unit consisting of filter pressure regulator and normal mist oiler, connected with double nipple.

• Classic design and quality proven over many years

Technical specifications:

Connection: G 1/2 inch

Nominal flow: 1830 Nl / min.

Flow, min .: 117 Nl / min.

Operating pressure, max. (Plastic container / metal container): 16 bar / 25 bar

Operating temperature (plastic container / metal container): 0 to +50 ° C / 0 to +90 ° C

Usable container content (filter container / oil containers): 80/135 cm³

Installation position: vertical

Flow direction: note arrow

Nominal size: DN15

Form pressure dependency: <2%

Weight: 3.67 kg

Material:

• Membranes / seals: NBR

• Housing: die-cast zinc

• Plastic container: polycarbonate

• Filter insert: sintered bronze

Manufacturer Nr.: EWO 331.36

EAN: 4030875000191
