Aquamat CF 3 Condensate Treatment System

Aquamat CF 3 Condensate Treatment System

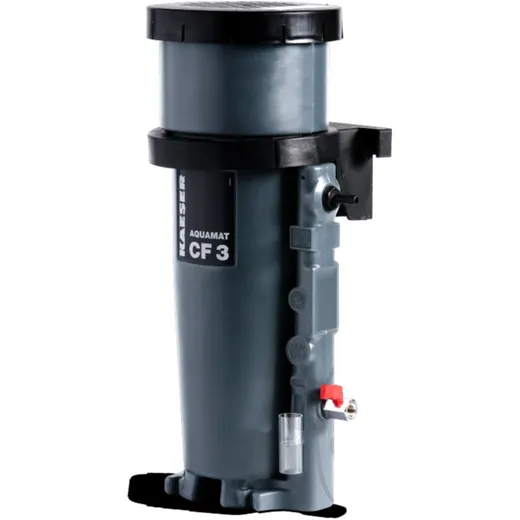

Condensate treatment system Type: Aquamat CF 3

• Tested and certified condensate treatment
• With the AQUAMAT preparation system, the compressor operator can easily prepare compressed air condensate, for example from the refrigeration dryer .
• This means that only a small amount remains for disposal.
• Compared to the processing of the entire amount of condensate by specialist companies, the AQUAMAT saves around 90% of the Disposal costs and therefore pays for itself in the shortest possible time.

Technical specifications:

• suitable for max. Compressor delivery quantity 1.9 m³ / min
• Container volume 10.0 l
• Filter contents 1 x 2.0 l / 2 x 2.5 l
• Connection of condensate inlet 2 x G 1/2
• Water drainage connection (hose dimension) DN 10
• Empty weight approx.3.5 kg
• Permissible condensate temperature +5 to +60 ° C
• Dimensions (W x D x H) 290 x 222 x 528 mm

Technical changes reserved.

Manufacturer Nr.: Kaeser 5.3390.0
