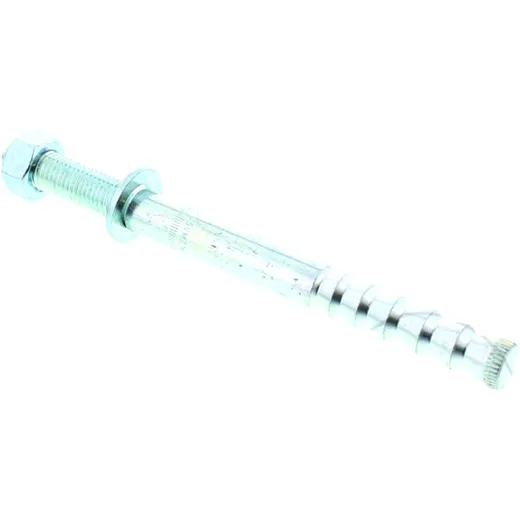

Anchor Rod VMZ-A 105 M16-30/160

Anchor rod VMZ- A 105 M16- 30/160

The injection system VMZ consists of an anchor rod with conical expansion elements and a

2-component injection mortar. This combination makes it possible to install high loads with small

edge and axial distances into the subsoil. It thus combines the advantages of

and expansion anchors in an approved fixing system for cracked and non-cracked concrete.

non-cracked concrete.

Advantages

- low concrete component thicknesses necessary

- approved processing from -5° C substrate temperature

- from a variety of anchor rods the suitable diameter and the optimal anchoring depth can be chosen

anchoring depth can be selected

- greatest possible economic efficiency of the fastening due to smaller anchors with less drilling effort

Application examples

Anchoring of heavy loads in cracked and non-cracked concrete,

e.g. steel constructions, brackets, facade construction.

Injection mortar: VMZ 345 (JM-No. 4860409)

Diameter drill mm: 18

Dowel length over all mm: 160

Thread: M16 x 44

Drill hole depth mm: 115

necessary anchorage depth in concrete mm: 105

max. clamping thickness of component mm: < 30

Tightening torque dowel Nm: 50

Manufacturer Nr.: INTERN VMZ-A 105 M16-30/160

EAN: 4043315065957
