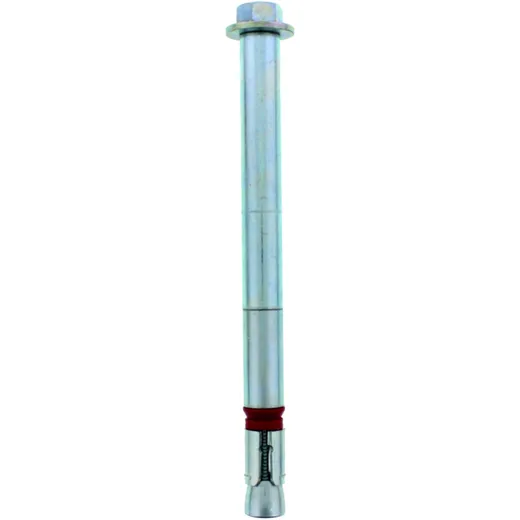

Heavy Duty Anchor B 24/156 for: BMW, Ducati

SZ-B anchor

Version with bolt head, galvanized steel, approved for medium to heavy anchoring in cracked and non-cracked concrete.

The ETA, Option 1 approved SZ heavy-duty anchor is a high-performance push-through anchor system with a special triple expanding sleeve, which enables very high permissible loads with small axial and edge distances.

The plastic press ring ensures that the fixing element is permanently tensioned against the substrate and prevents the anchor from rotating during installation.

Advantages

- Very high tensile and shear loads

Application examples

Medium to heavy anchoring in cracked and non-cracked concrete,

e.g. steel supports, railings, machines, scaffolding, brackets.

Drill diameter mm: 24
Dowel length over all mm: 290

Thread size: M 16

Drill hole depth mm: 275

Required anchoring depth in concrete mm: 215

Max. Clamping thickness component mm:

Tightening torque dowel Nm: 160

Packaging unit: 1

Manufacturer Nr.: Nussbaum B 24/156 SZ

EAN: 4043315071415
