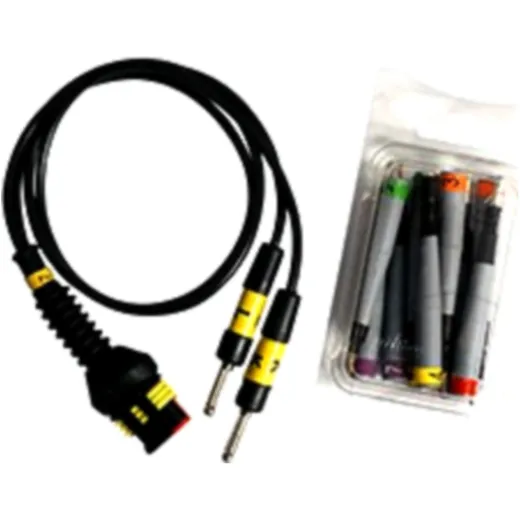

TEXA AP07 Diagnostic Cable for Motorcycle Systems

TEXA AP07 Diagnostic Cable for Motorcycle Systems

TEXA adapter cable for motorcycle control unit diagnostics

UNIVERSAL adapter cable 3151/AP07 with 2 output lines: K and L. NOTE: Extension connection cable of the main cable 3151/AP01 for connection to specific systems or for special diagnostic sockets. To establish communication, a specific test probe must be connected to an output line of the connector (usually the K line), which in turn is connected to a specific pin of the vehicle socket. The output line, the test probe to be used and the connection pin of the vehicle are displayed in the diagnostic software. This type of cable connection is very often used in flasher code diagnostics, where communication with the control unit must be established.

Can only be used in conjunction with cable 3151/AP01 (JM no. 6580043)

Manufacturer Nr.: Texa 3151/AP07

EAN: 3151/AP07
