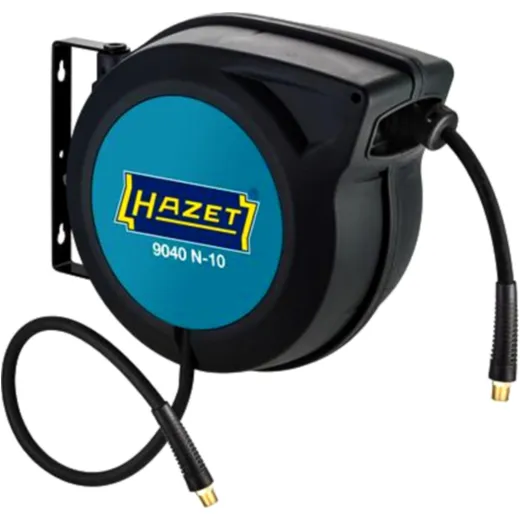

Pneumatic Hose Reel 15m for Air and Water

Pneumatic Hose Reel 15m for Air and Water

Hose reel Hazet 15m

• Automatic hose reel creates order in the workshop - no hose lying around, thus reducing the risk of accidents
• Hose stop at any point due to stop at any point function
• Clean rewinding due to automatic guide
• Braked rewinding against risk of accidents
• Suitable for compressed air or water
• Complies with all relevant provisions of the EC Machinery Directive 2006/42/EC
• Integrated drilling template for mounting on cardboard packaging

Technical data:

Hose inner diameter 10 mm

Dimensions 459 x 378 x 205 mm

Dimensions packed 465 x 400 x 220 mm

Hybrid polymer hose, black

Connection hose length 0.9 m

Hose length 15 m

Max. Operating pressure 20 bar

Net weight 6.45 kg

Temperature range -40 to 60 degrees Celsius

Air connection inlet male thread 16.41 mm (3/8 inch)

Air connection outlet male thread 16.41 mm (3/8 inch)

Scope of delivery:

1x Hose reel Hazet 9040N-10

Manufacturer Nr.: Hazet 9040N-10

EAN: 4000896206445
