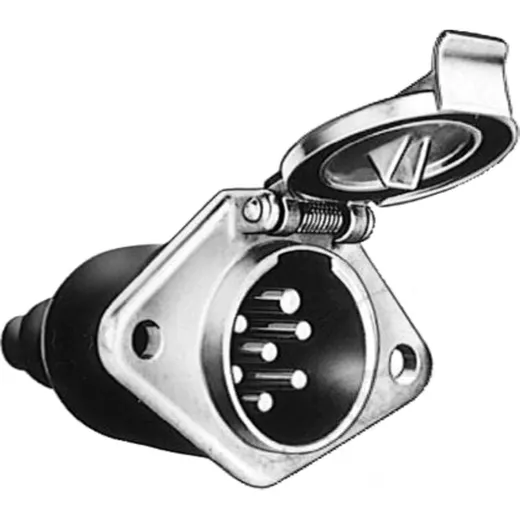

Socket 7-pole aluminium 24V 51305385

24 V socket, 7-pin

Light metal socket with rubber seal in the cover and cable protection grommet for cables Ø 8 - 11 mm and 16.5 - 1.5 mm. Contact 31 as a pin.

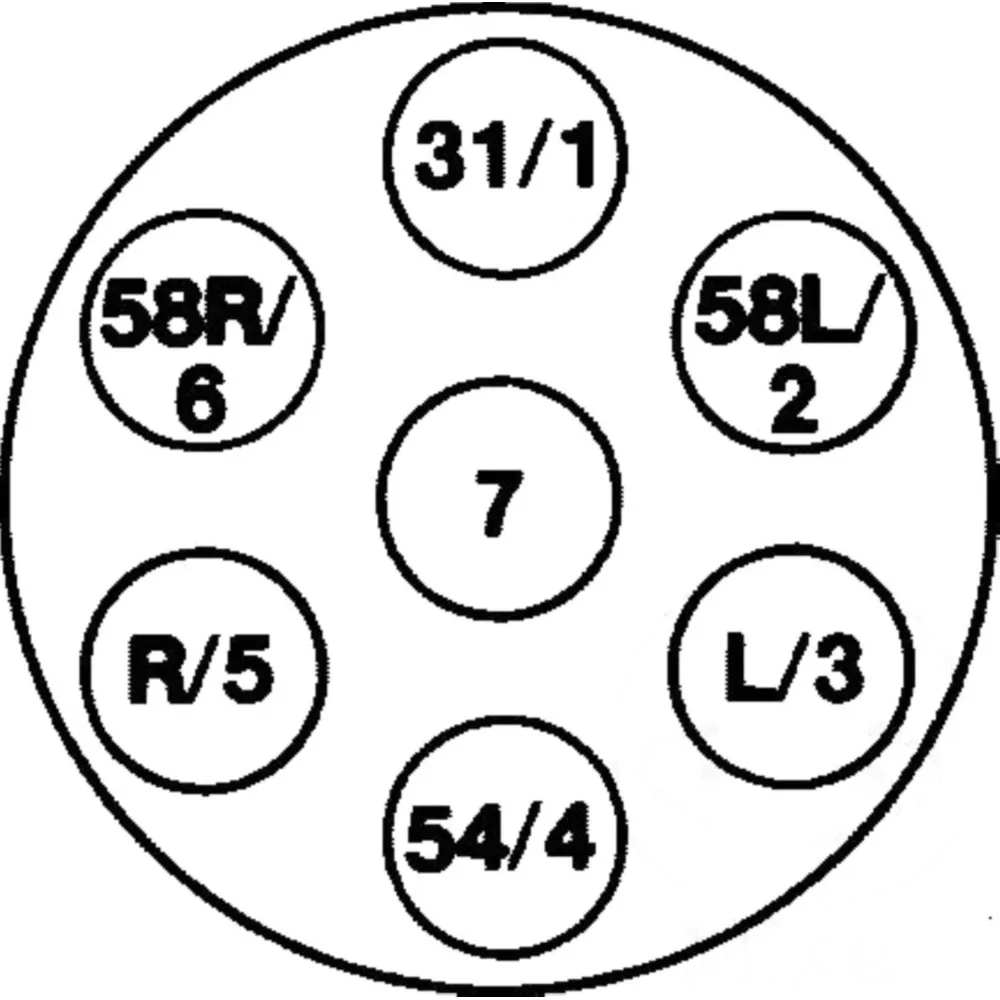

"N" standard version for STVZO functions (ISO 1185 / type SAE J560B).

Number of Poles: 7

Voltage: 24 volts

Material: aluminum

Installation type: 20 flat plug connections 6.3 mm (1 x 2-fold, 6 x 3-fold) CUZn / Ni

Load capacity at 24 V: 15 A (1.5 mm²) / 20 A (2.5 mm²)

Packing unit: 10

Manufacturer Nr.: Herth & Buss 51305385

EAN: 4026736035679
