changeover relay diverse

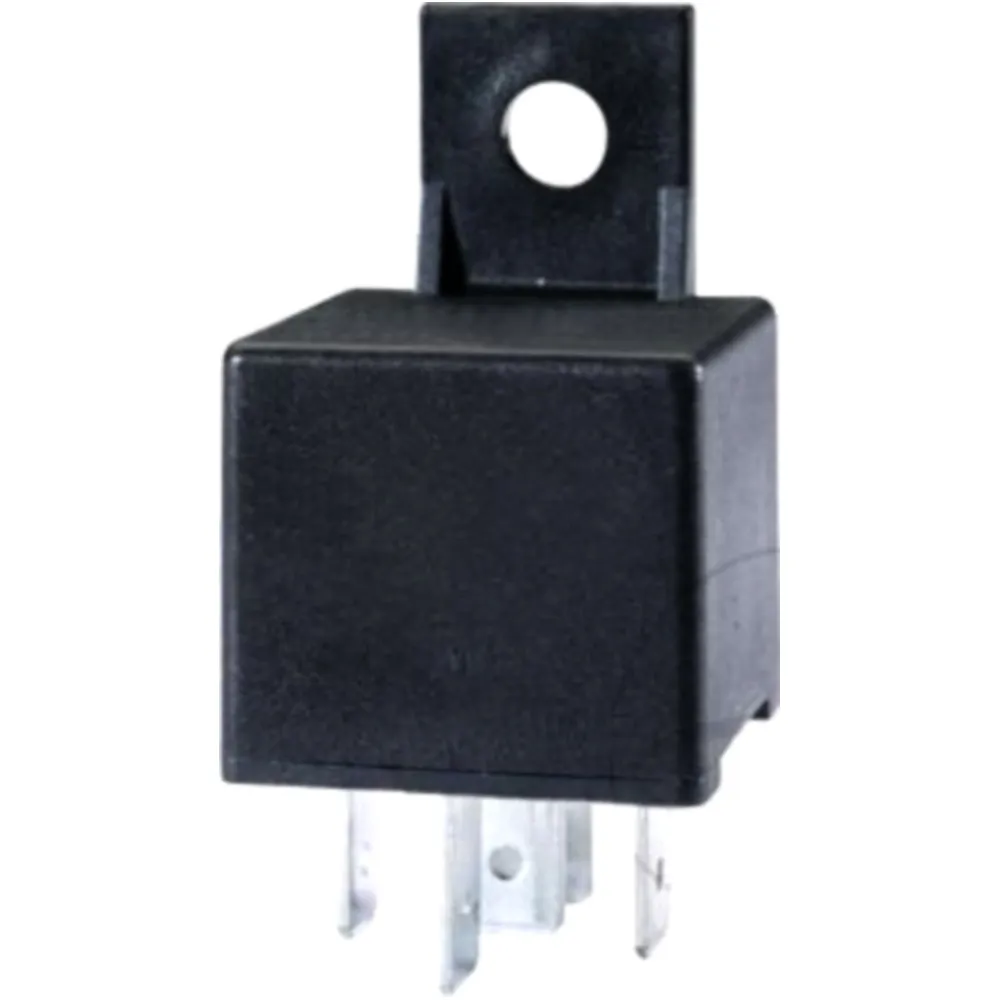

HELLA operating current relay 5-pole, 12 V

• Mini relay with holder
• With parallel resistor and 6.3 mm blade terminals
• Closes the circuit between the power source and an electrical consumer
• Area of application: Headlights, auxiliary headlights, horns, heaters, fan motors and window regulators, air conditioning and ignition systems, etc.

Technical data

Plug version ID: B1

Circuit diagram : W2

Temperature range, max.: 80 °C

Resistive load: 20/30 A

Inductive load: 5 A

Capacitive load: 20/30 A

Manufacturer Nr.: Hella 4RD 007 794-031

EAN: 4082300078701
