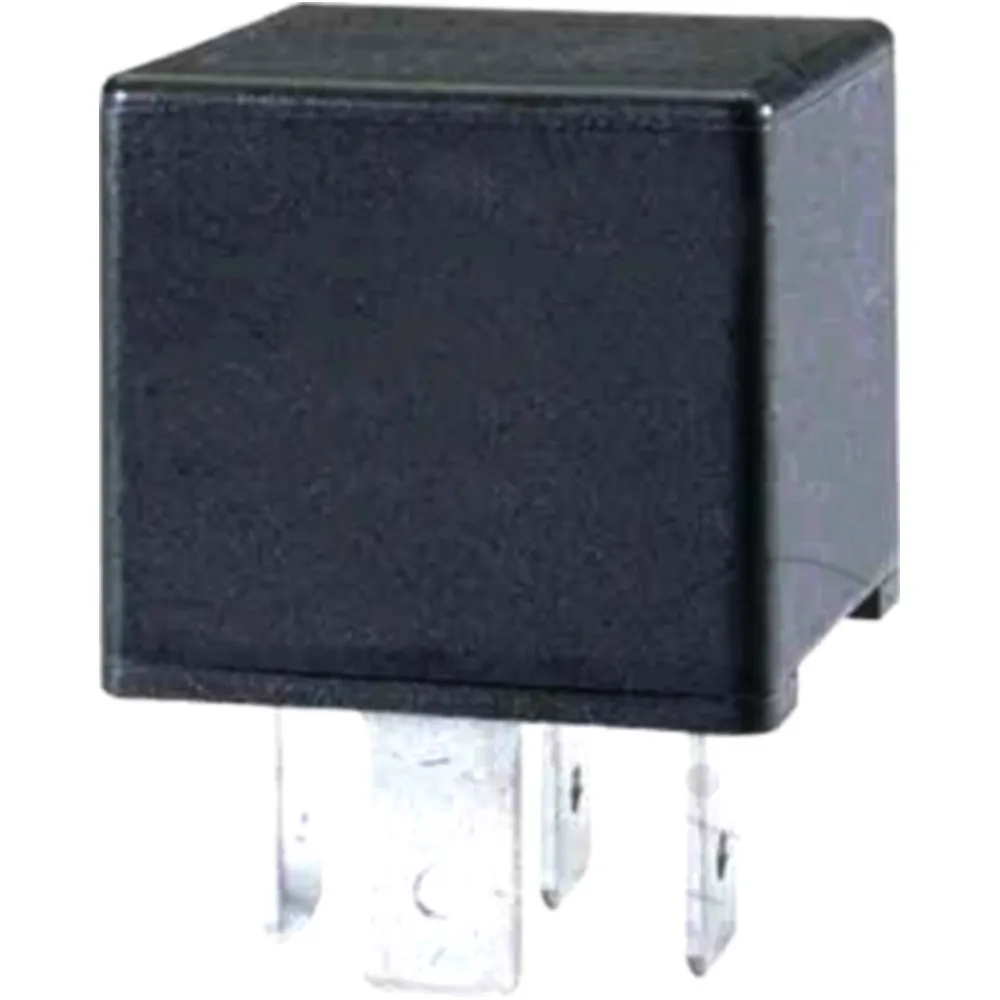

Hella open relay 4-pole 12v

HELLA operating current relay 4-pole, 12 V

• Power mini relay

• With parallel resistor to the coil

• Closes the circuit between the power source and an electrical consumer

• Area of application: Headlights, auxiliary headlights, horns, heaters, fan motors and window regulators, air conditioning and ignition systems, etc.

Technical data

Plug version ID: B

Circuit diagram : S2

Temperature range, max.: 80 °C

Load capacity (at +80 °C) NO contact

Resistive load: 40 A

Inductive load: 35 A

Capacitive load: 30 A

Manufacturer Nr.: Hella 4RA 007 791-011

EAN: 4082300078657
