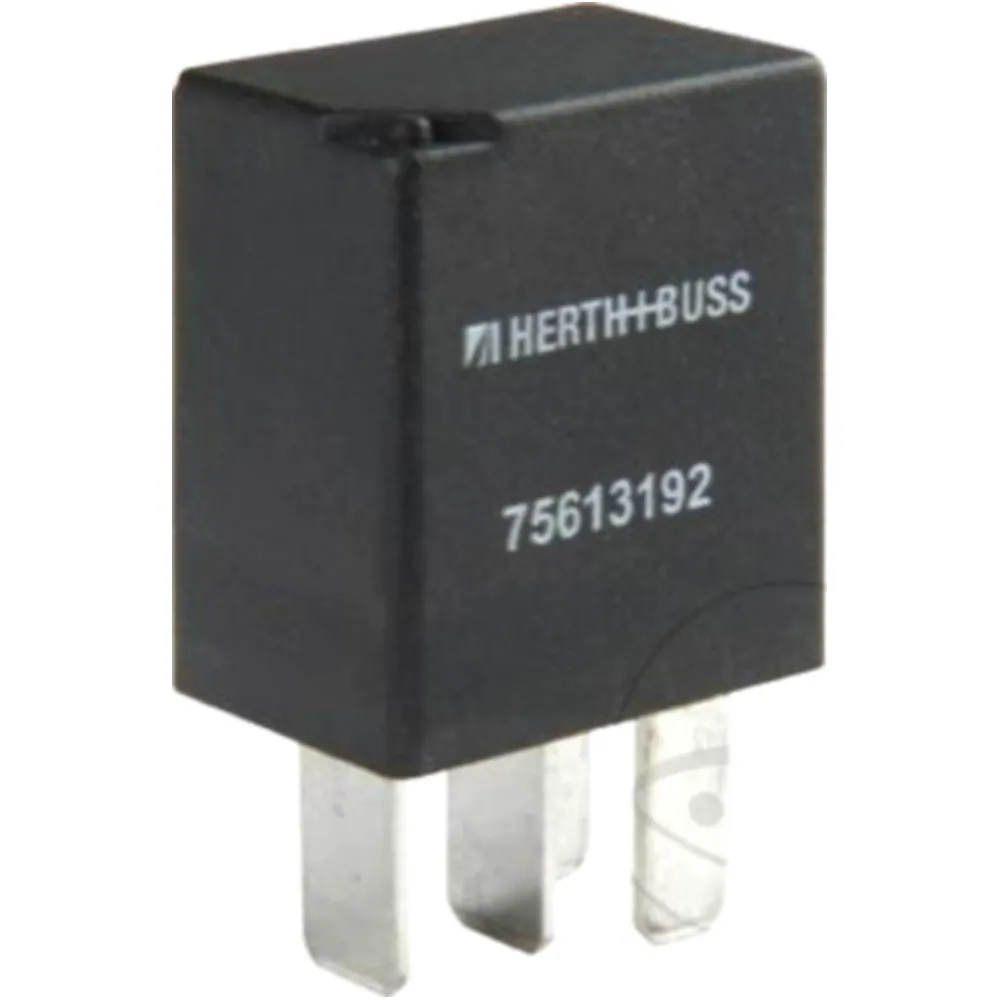

HERTH & BUSS RELAY 4-POLE 12v

HERTH & BUSS working current relay 4-pole, 12 V

• With parallel resistor to the coil
• A normally open relay closes the circuit between the power source and an electrical load, ie the load is switched on
• Relays are operated via switches, pulse generators or control units
• Application: headlights, auxiliary headlights, horns, heaters, fan motors and windows, air conditioning and ignition systems, etc.

Technical specifications

Connection type: 2 flat plug connections 4.8 mm and 2 flat plug connections 6.3 mm (terminals 3 and 5)

Plug Type ID: C

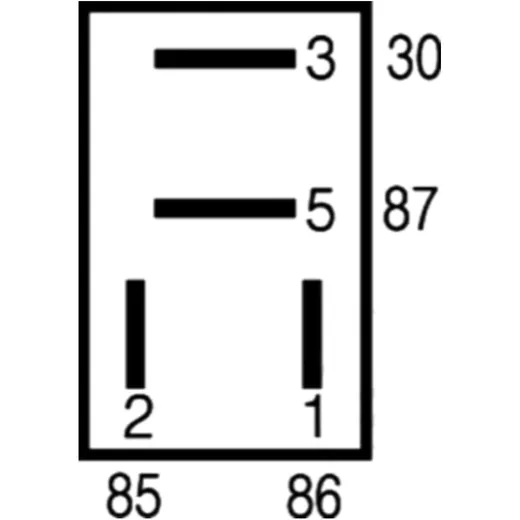

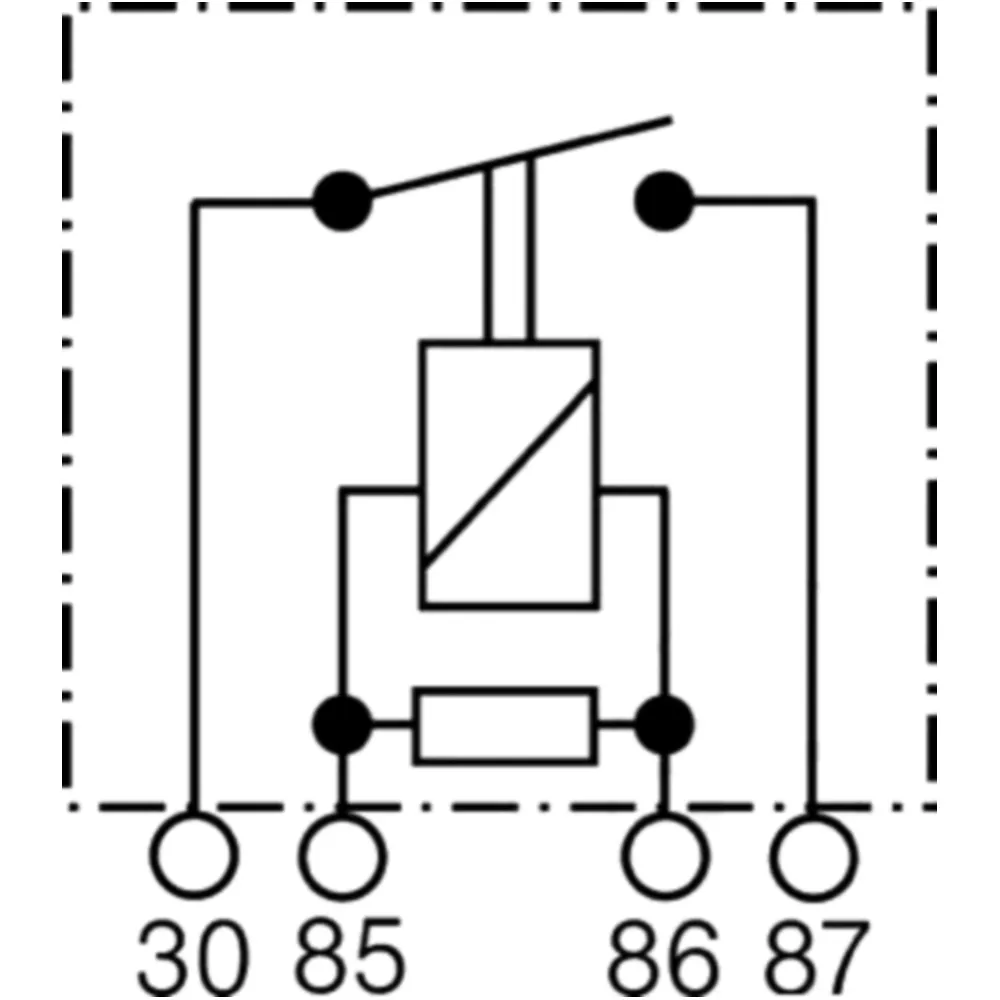

Schematic: S2

Protection class: IP5K4K

Temperature range: -30 ° to 80 ° C

Dimensions WxHxD: 15 x 26 x 23 mm

Manufacturer Nr.: Herth & Buss 75613192

EAN: 4026736058739
